SNH 1226E (1696223-00) - Snapper 26" Snow Thrower, 11.5hp Chute & Rotation Group Parts Diagram

26" Snow Thrower, 11.5hp

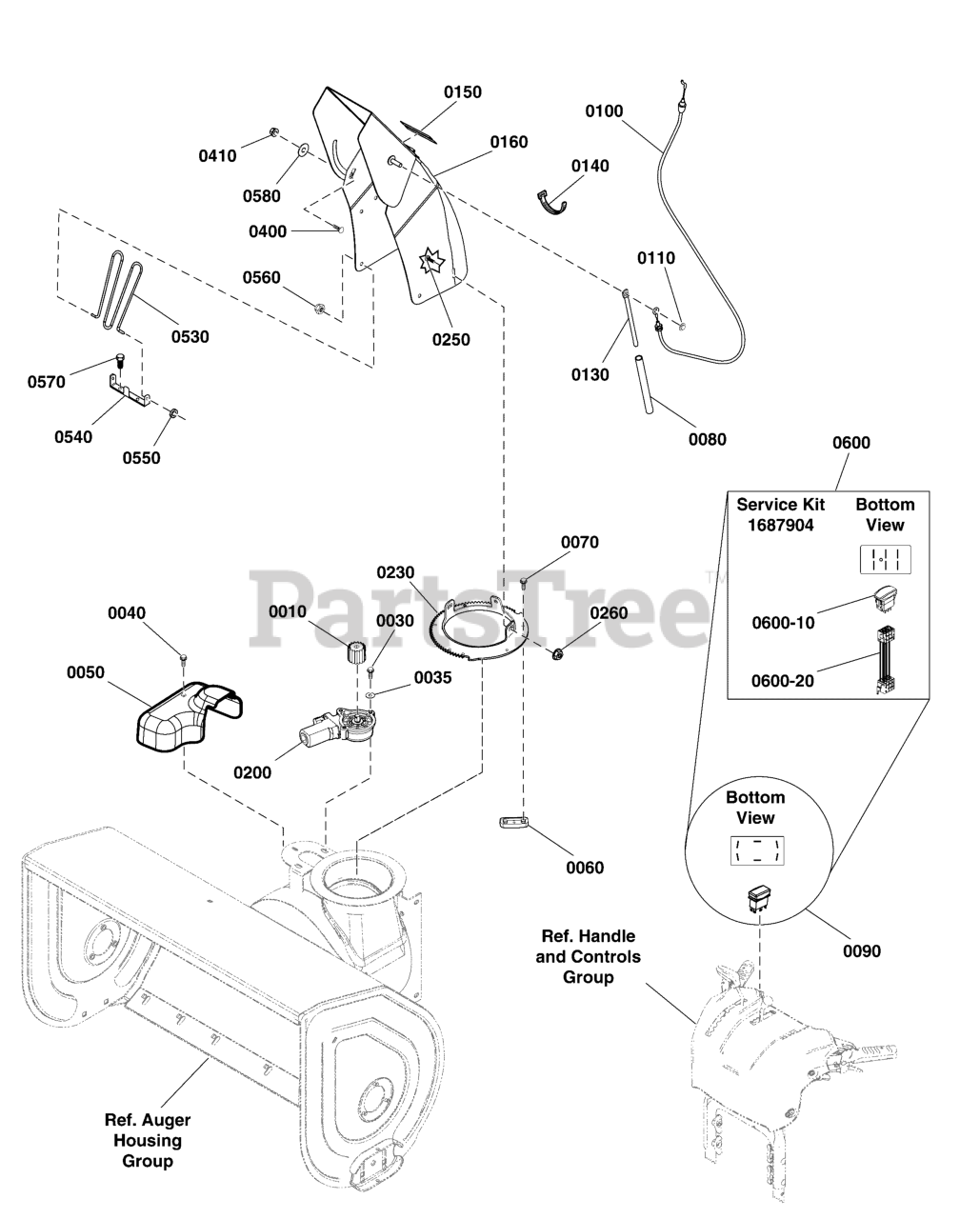

Chute & Rotation Group Parts Diagram

  • Title

0010

Snapper 1728967SM

PINION

$17.99

$

In Stock, Qty 7

0

0030

Snapper 1739621YP

SCREW, Button Head Torx, M5 x .8 x 14

$4.49

$

In Stock, Qty 15

0

0035

Snapper 7091552SM

WASHER, Flat, 1/4

$3.99

$

In Stock, Qty 16

0

0040

Snapper 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

0050

Snapper 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Snapper 7011938SM

RETAINER, Spout

$

$

Not available

0070

Snapper 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 12

0

0080

Snapper 1734647SM

SPRING, Compression, 6"
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 1752240YP

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: (Used Before Serial No. 2017430819) (Order 0600 When Bottom View of Switch Terminal Pattern Matches 0090.)

$82.99

$

In Stock, Qty 20+

0

0100

Snapper 1750623YP

CABLE ASSEMBLY, Chute Deflector

$49.99

$

In Stock, only 4 left!

0

0110

Snapper 1932718SM

NUT, Push, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

0130

Snapper 1734708ASM

ROD, Spring Guide

$13.99

$

Usually ships in 2-12 days

0

0140

Snapper 2825094SM

TIE, Self Lock
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0150

Snapper 1754926YP

DECAL, Hinge

$11.99

$

Usually ships in 2-12 days

0

0160

Snapper 1752840BHYP

CHUTE

$188.99

$

Usually ships in 2-12 days

0

0200

Snapper 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

$86.99

$

In Stock, Qty 10

0

0230

Snapper 1737962BMYP

GEAR, Chute

$40.99

$

Usually ships in 2-12 days

0

0250

Snapper 1931317SM

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

0260

Snapper 1960685SM

NUT, Hex KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

0400

Snapper 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0410

Snapper 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0530

Snapper 1733475SM

GUARD, Chute

$21.99

$

Usually ships in 2-12 days

0

0540

Snapper 1752883YP

BRACKET, Chute Guard (CE/Export)

$15.99

$

Usually ships in 2-12 days

0

0550

Snapper 1738174YP

GROMMET

$4.49

$

Usually ships in 2-12 days

0

0560

Snapper 1960140SM

NUT, Push, 3/16

$3.49

$

Usually ships in 2-12 days

0

0570

Snapper 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0580

Snapper 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 3 left!

0

0600

Snapper 1687904

WIRE HARNESS ADAPTER KIT, CHUTE ROTATION

Note: (Used Before Serial No. 2017430819) (Order 0600-10 When Bottom View of Switch Terminal Pattern Matches 0600.)

$82.99

$

In Stock, Qty 20+

0

0600-10

Snapper 709954

SWITCH, Chute Rotation

Note: (Used After Serial No. 2017430818)

$46.99

$

In Stock, Qty 6

0

0600-20

Snapper 84003010

HARNESS, Wire

Note: (Used Before Serial No. 2017430819)

$45.99

$

In Stock, only 1 left!

0
