SMZC-42A - Scag Z-Cat 42" Mower Deck (SN: B4700001 - B4799999) Fuel And Hydraulic System Parts Diagram

Z-Cat 42" Mower Deck

Fuel And Hydraulic System Parts Diagram

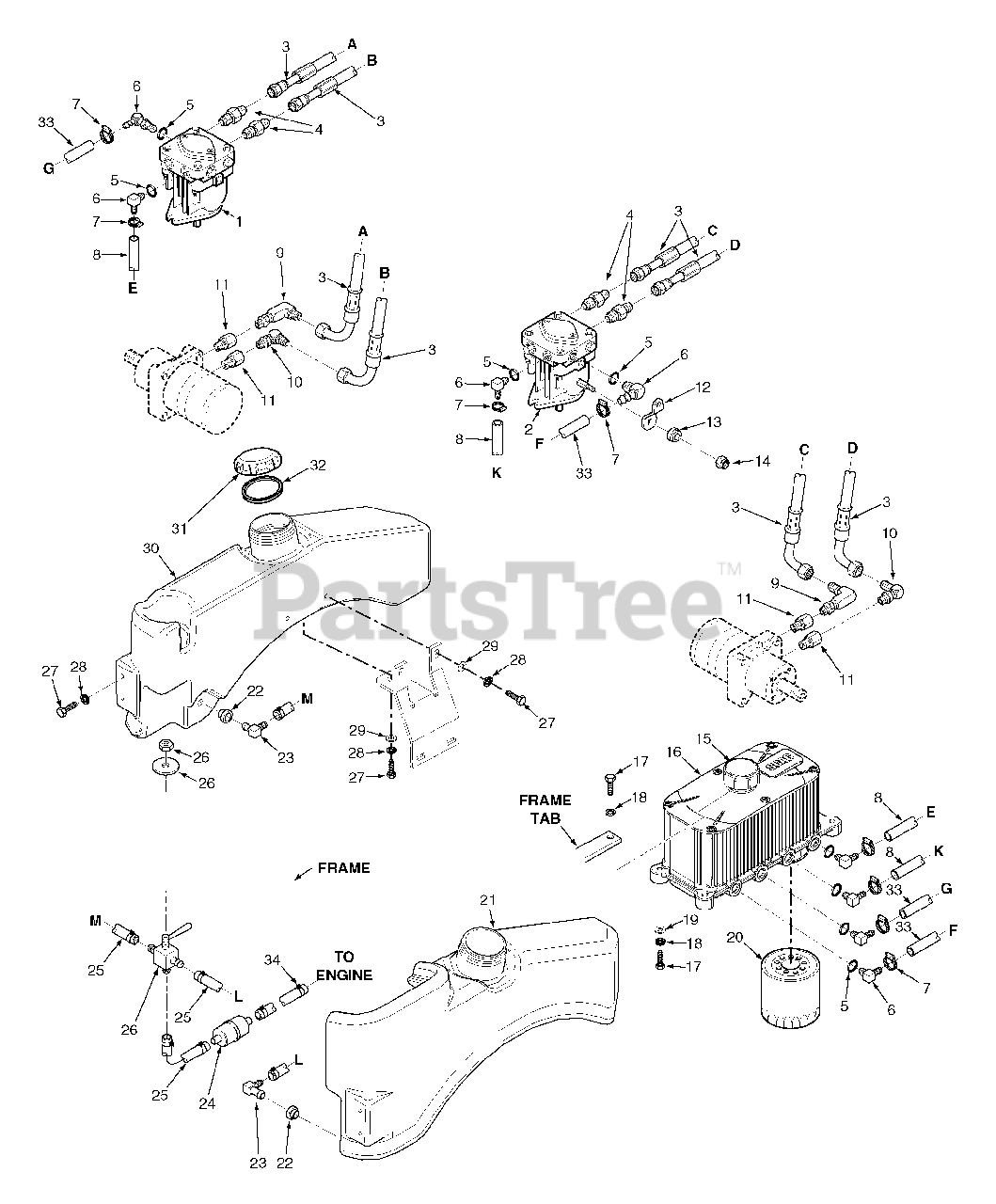

  • Title

1

Scag 483106

Pump, R.H. BDP-10A (PG-1GCC-D11X-XXXX)
(Superseded to 462180)

$592.99

$

Usually ships in 2-12 days

0

2

Scag 483105

Pump, L.H. BDP-10A (PG-1JCC-D11X-XXXX)
(Superseded to 462179)

$592.99

$

Usually ships in 2-12 days

0

3

Scag 482994

Hose Assembly, Wheel Motor SZC

$59.99

$

Usually ships in 2-12 days

0

4

Scag 48572-04

Fitting, 1/2" JIC x 1/2" O-Ring

$8.49

$

In Stock, only 1 left!

0

5

Scag 48603-06

O-Ring

$6.99

$

In Stock, only 2 left!

0

6

Scag 482266-01

Elbow, 90 Degree O-Ring 9/16-18 x 3/8 Hose

$31.99

$

Usually ships in 2-12 days

0

7

Scag 48136-13

Clamp, Hose .69 Max Dia.

$7.49

$

In Stock, Qty 20+

0

8

Scag 48811

Hose, 3/8" Pushlock

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Scag 481761-01

Elbow, 90 Degree JIC to O-Ring

$57.99

$

Usually ships in 2-12 days

0

10

Scag 48350-02

Elbow, 90 Degree 1/2 x 1/2" JIC to O-Ring

$25.99

$

Usually ships in 2-12 days

0

11

Scag 48938-02

O-Ring Bushing, 5/8"

$14.99

$

Usually ships in 2-12 days

0

12

Scag 424061

Control Lever, Pump

$6.99

$

Usually ships in 2-12 days

0

13

Scag 483123

Retainer, Pump Lever

$5.99

$

Usually ships in 2-12 days

0

14

Scag 04021-12

Nut, Center Lock 5/16-24

$

$

Currently unavailable

15

Scag 483094

Cap, Oil Reservoir

$21.99

$

Usually ships in 2-12 days

0

16

Scag 461752

Oil Reservoir

Note: (incl. items 6, 15, 20)

$

$

Not available

17

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

19

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

20

Scag 48462-01

Filter, Spin On

$25.99

$

In Stock, Qty 20+

0

21

Scag 461828

Fuel Tank, L.H. SZC

$

$

Not available

22

Scag 48309

Tank Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

23

Scag 481602

Elbow, 90 Degree

$7.99

$

In Stock, only 1 left!

0

24

Fuel Filter

Note: Available through the individual engine manufacturer

$

$

Not available

25

Scag 48058

Fuel Hose, 1/4 ID
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

26

Scag 482212

Valve, Fuel Shutoff

$43.99

$

In Stock, only 1 left!

0

27

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04030-03

Lockwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

30

Scag 461829

Fuel Tank, R.H. SZC
(Superseded to 461971)

$

$

Not available

31

Scag 482547

Cap, Fuel Tank
(Superseded to 483792)

Note: (incl. item #32)

$26.99

$

In Stock, only 4 left!

0

32

Scag 482774

Gasket, Gas Tank Cap

$3.49

$

In Stock, only 4 left!

0

33

Scag 483146

Hose, 3/8" Pushlock Gray

Note: (order by inch)

$0.99

$

Usually ships in 2-12 days

0

34

Scag 48059-01

Clamp, Fuel Hose 1/4 Hose ID

$0.99

$

In Stock, Qty 7
