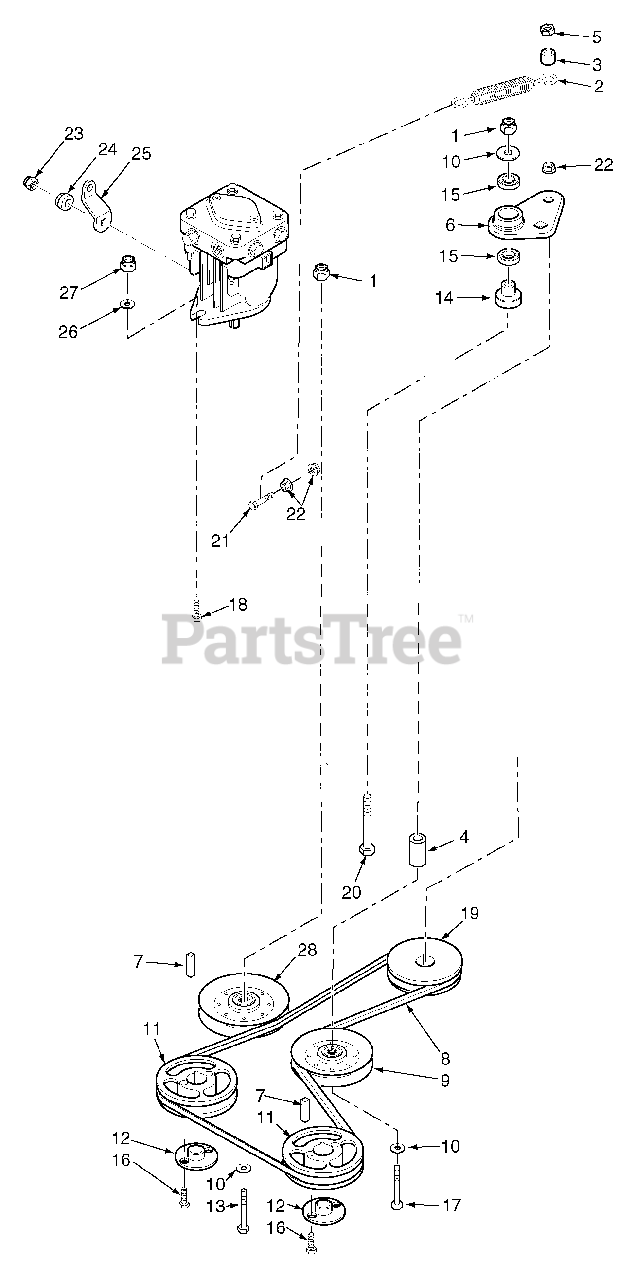

SMZC-42A - Scag Z-Cat 42" Mower Deck (SN: B4700001 - B4799999) Drive System Components Parts Diagram

Z-Cat 42" Mower Deck

Drive System Components Parts Diagram

  • Title

1

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 483088

Spring, SZC Pump Drive

$46.99

$

In Stock, only 1 left!

0

3

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

4

Scag 43674

Spacer, Pump Idler

$2.49

$

In Stock, only 2 left!

0

5

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 49922

Idler Arm Assembly, Pump Drive

$121.99

$

Usually ships in 2-12 days

0

7

Scag 04063-14

Key, 5 x 5 x 25mm

$0.99

$

In Stock, Qty 5

0

8

Scag 483164

Belt, Pump Drive SZC

$41.99

$

In Stock, only 3 left!

0

9

Scag 483208

Pulley, Idler 3" Dia.

$33.99

$

In Stock, Qty 20+

0

10

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

11

Scag 482649

Pulley, 5.45 O.D. Tapered Bore

$48.99

$

In Stock, only 1 left!

0

12

Scag 482085

Hub, Tapered, 15mm Bore

$27.99

$

Usually ships in 2-12 days

0

13

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

14

Scag 43503

Pivot, Idler Short

$26.99

$

In Stock, Qty 18

0

15

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

16

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

18

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

19

Scag 482968

Pulley, 5.45" Dia. 1" Bore

$132.99

$

Usually ships in 2-12 days

0

20

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/4 Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

22

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04021-12

Nut, Center Lock 5/16-24

$

$

Currently unavailable

24

Scag 483123

Retainer, Pump Lever

$5.99

$

Usually ships in 2-12 days

0

25

Scag 424061

Control Lever, Pump

$6.99

$

Usually ships in 2-12 days

0

26

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

27

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 483212

Pulley, Idler

$51.99

$

Usually ships in 2-12 days

0
