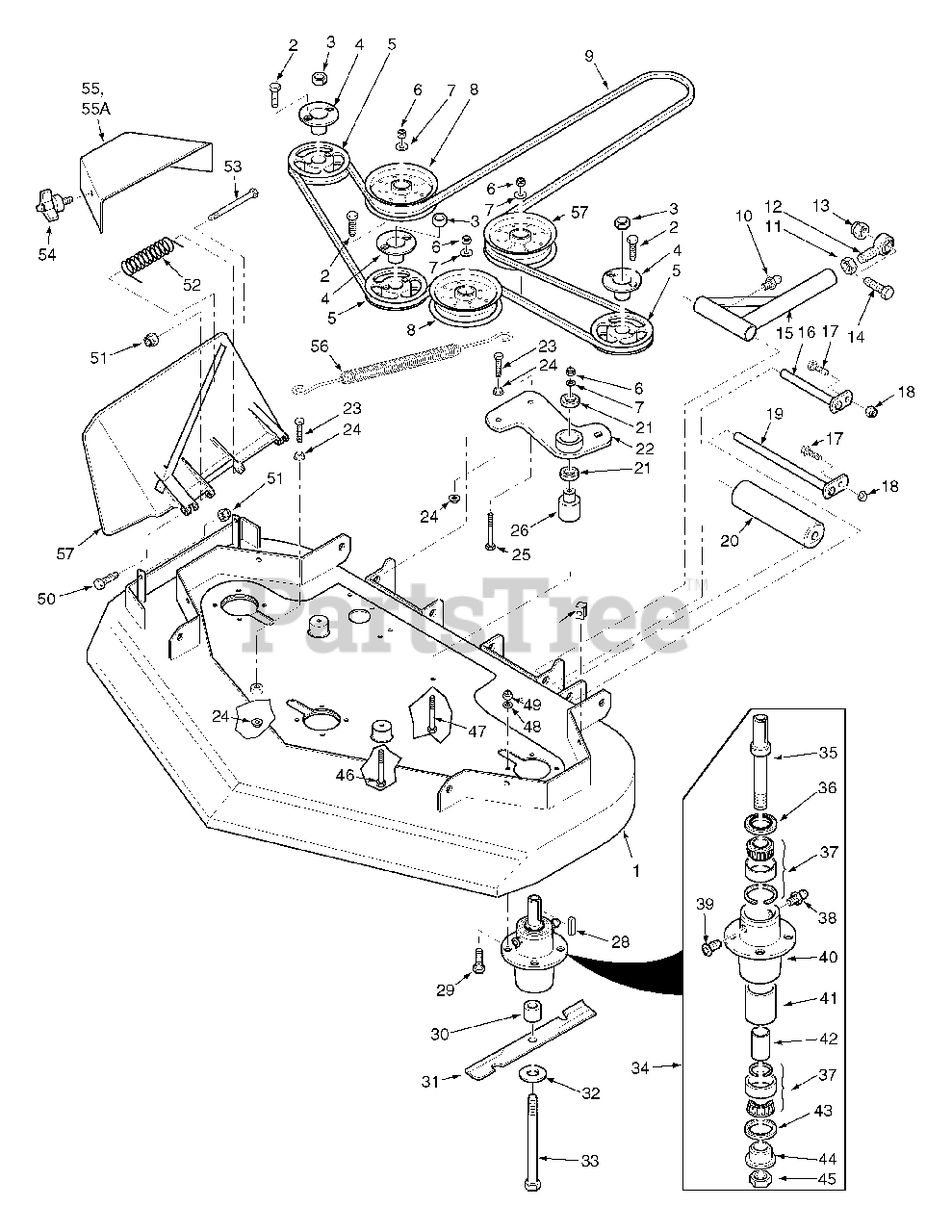

SMZC-42A - Scag Z-Cat 42" Mower Deck (SN: A470001 - A479999) Cutter Deck Parts Diagram

Z-Cat 42" Mower Deck

Cutter Deck Parts Diagram

  • Title

1

Scag 461834

Cutter Deck
(Superseded to 461851K)

Note: (Incl. decals)

$1359.99

$

Usually ships in 2-12 days

0

2

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 20+

0

3

Scag 04020-09

Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

4

Scag 48926

Tapered Hub, 1.125" Bore

$31.99

$

In Stock, Qty 20+

0

5

Scag 482646

Pulley, 4.75 O.D. (42")

$37.99

$

In Stock, only 3 left!

0

6

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

8

Scag 482416

Pulley, 5" Idler
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

9

Scag 483002

Belt, Cutter Deck (42")

$128.99

$

In Stock, only 1 left!

0

10

Scag 48114-04

Grease Fitting 1/4-28 Self Tapping

$1.49

$

In Stock, Qty 20+

0

11

Scag 04020-08

Nut, 1/2-20 UNF

$0.99

$

In Stock, only 2 left!

0

12

Scag 48542

Rod End, 1/2-20 RH Thread

$41.99

$

In Stock, only 3 left!

0

13

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-87

Bolt, Hex Head 1/2-13 x 4"

$2.99

$

In Stock, Qty 10

0

15

Scag 461769

Push Arm Assembly

Note: (Incl. 10, 11, 12)

$157.99

$

In Stock, only 1 left!

0

16

Scag 451240

Rod Weldment, Push Arm

$53.99

$

In Stock, Qty 20+

0

17

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 45944

Shaft Weldment, Guide Roller

$22.99

$

In Stock, Qty 20+

0

20

Scag 48038

Roller

$29.99

$

In Stock, only 2 left!

0

21

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

22

Scag 461632

Idler Arm Assembly

Note: (Incl. item 21)

$94.99

$

Usually ships in 2-12 days

0

23

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr. 8

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

26

Scag 43660

Pivot, Idler

$38.99

$

Usually ships in 2-12 days

0

27

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

28

Scag 04063-20

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 5

0

29

Scag 04001-176

Bolt, 5/16-18 x 1-3/4" Gr. 8

$0.99

$

In Stock, Qty 20+

0

30

Scag 43590

Spacer, Spindle

$17.99

$

In Stock, Qty 20+

0

31

Scag 483014

Cutter Blade, 14-3/4"

$26.99

$

Usually ships in 2-12 days

0

32

Scag 04043-06

Flatwasher, 5/8-.688 x .75 x .134 HD

$1.99

$

In Stock, Qty 20+

0

33

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

34

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 20+

0

35

Scag 43589

Shaft, Cutter Spindle

$59.99

$

In Stock, only 1 left!

0

36

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 20+

0

37

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

38

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

39

Scag 48677

Relief Fitting, Tapered Spindle

$9.49

$

Usually ships in 2-12 days

0

40

Scag 43644

Spindle Housing

$60.99

$

In Stock, only 2 left!

0

41

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

42

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

43

Scag 481025

Seal, Bottom

$4.99

$

In Stock, Qty 20+

0

44

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

45

Scag 481035

Nut, Special 1 - 1/16-18

$7.99

$

In Stock, only 3 left!

0

46

Scag 04001-23

Bolt, 3/8-16 x 4-1/2"

$2.49

$

In Stock, Qty 7

0

47

Scag 04001-77

Bolt, 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

48

Scag 04030-03

Lock washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

49

Scag 04021-22

Nut, Elastic Stop 5/16-18 Gr. 8

$0.99

$

In Stock, Qty 20+

0

50

Scag 04001-11

Bolt, 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

Scag 04001-12

Bolt, 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

51

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

52

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 5

0

53

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

54

Scag 481625-01

Knob w/stud, 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

55

Scag 424055

Belt Cover

$38.99

$

Usually ships in 2-12 days

0

56

Scag 483112

Spring

$14.99

$

In Stock, only 1 left!

0

57

Scag 482783

Pulley, 5" Idler
(Superseded to 483210)

$56.99

$

In Stock, Qty 6

0

58

Scag 461295

Discharge Chute

$70.99

$

In Stock, Qty 8

0
