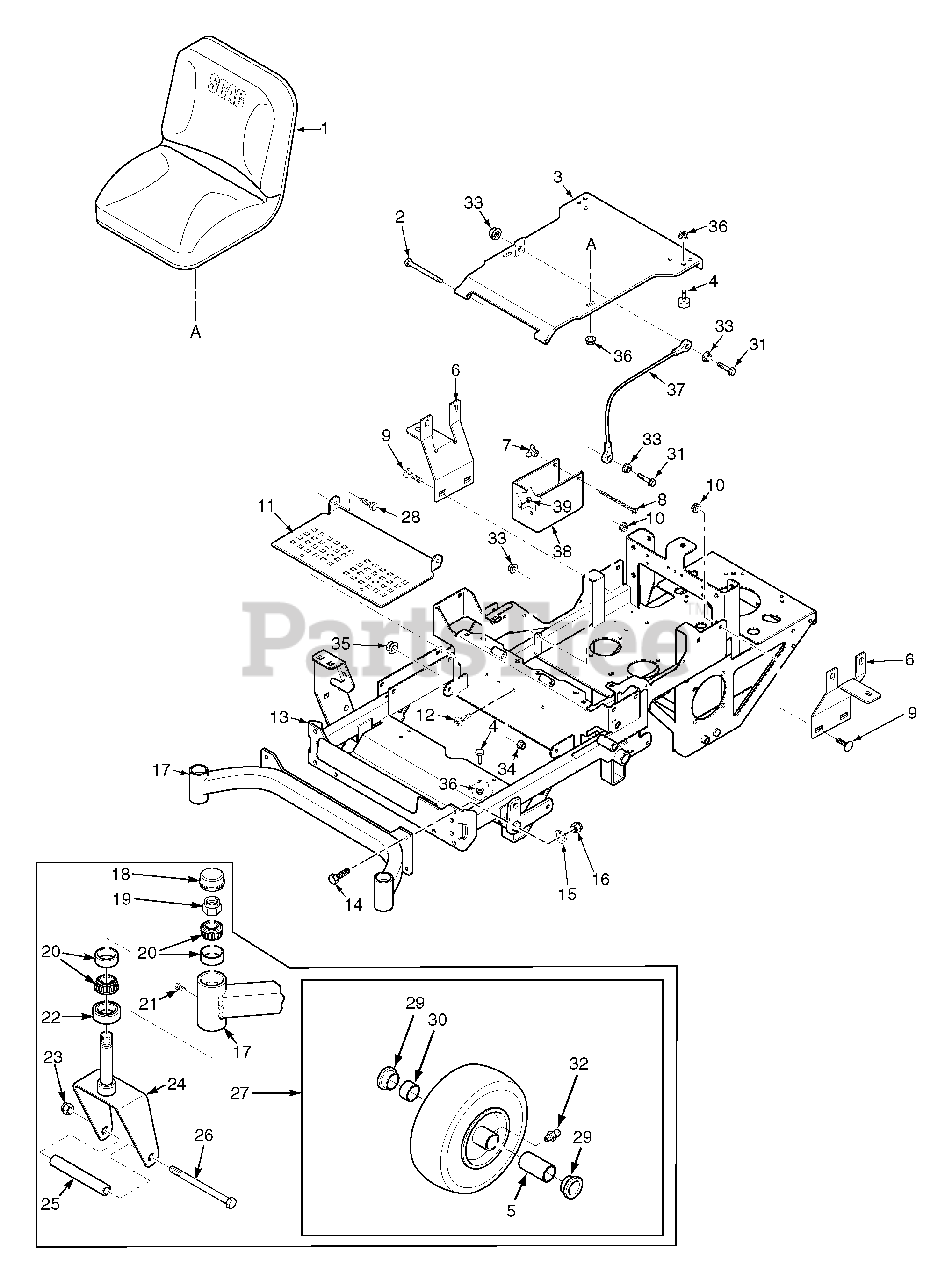

SMZC-36A - Scag Z-Cat 36" Mower Deck (SN: B4600001 - B4699999) Sheet Metal Components Parts Diagram

Z-Cat 36" Mower Deck

Sheet Metal Components Parts Diagram

  • Title

1

Scag 483116

Seat Assembly

$392.99

$

In Stock, only 1 left!

0

2

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

3

Scag 451732

Seat Mounting Base Weldment
(Superseded to 451837)

$81.99

$

Usually ships in 2-12 days

0

4

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

5

Scag 481769

Roller Bearing, .625 x 3-1/4"

$27.99

$

In Stock, only 2 left!

0

6

Scag 424200

Bracket, Fuel Tank Mounting

$

$

Not available

7

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 19

0

8

Scag 04003-39

Bolt, Carriage 1/4-20 x 6"

$1.49

$

In Stock, Qty 10

0

9

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

10

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

11

Scag 423557

Foot Plate

$58.99

$

Usually ships in 2-12 days

0

12

Scag 04104-01

Bolt, Torx 3/8-16 x 1"

$3.99

$

Usually ships in 2-12 days

0

13

Scag 461835

Mainframe Weldment
(Superseded to 461934)

$

$

Not available

14

Scag 04001-28

Bolt, Hex Head 7/16-14 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

15

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 5

0

16

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

17

Scag 451728

Caster Support Weldment - 36"

$211.99

$

Usually ships in 2-12 days

0

Scag 451729

Caster Support Weldment -42"

$211.99

$

Usually ships in 2-12 days

0

18

Scag 481559

Cap, Grease

$6.99

$

In Stock, Qty 20+

0

19

Scag 04021-20

Nut, Elastic Stop 1"-14 Jam

$4.99

$

In Stock, Qty 20+

0

20

Scag 48668

Bearing w/Race

$23.99

$

In Stock, Qty 20+

0

21

Scag 482028-01

Plug, 1/4-28 Self Tap

$6.49

$

In Stock, only 3 left!

0

22

Scag 481025

Seal, 2" O.D. x 1.625 I.D.

$4.99

$

In Stock, Qty 20+

0

23

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

24

Scag 451727

Caster Yoke Weldment
(Superseded to 452034)

$87.99

$

In Stock, only 1 left!

0

25

Scag 43511

Sleeve, Caster Wheel

$15.99

$

In Stock, only 1 left!

0

26

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6-1/2"

$5.99

$

In Stock, Qty 20+

0

27

Scag 9276

Caster Wheel Assy.

Note: (incl. 5, 29, 30, 32)

$112.99

$

Usually ships in 2-12 days

0

28

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

29

Scag 481770

Bearing, Oilite

$4.99

$

In Stock, Qty 20+

0

30

Scag 481846

Roller Bearing, .625 x 1"

$18.99

$

In Stock, only 2 left!

0

31

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

32

Scag 48114-05

Grease Fitting, 1/4-28 Straight

$1.49

$

In Stock, Qty 9

0

33

Scag 04019-02

Nut, Serr. Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

34

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

35

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

36

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

37

Scag 48566

Cable, Seat Stop

$16.99

$

In Stock, only 1 left!

0

38

Scag 424058

Battery Box

$

$

Not available

39

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0
