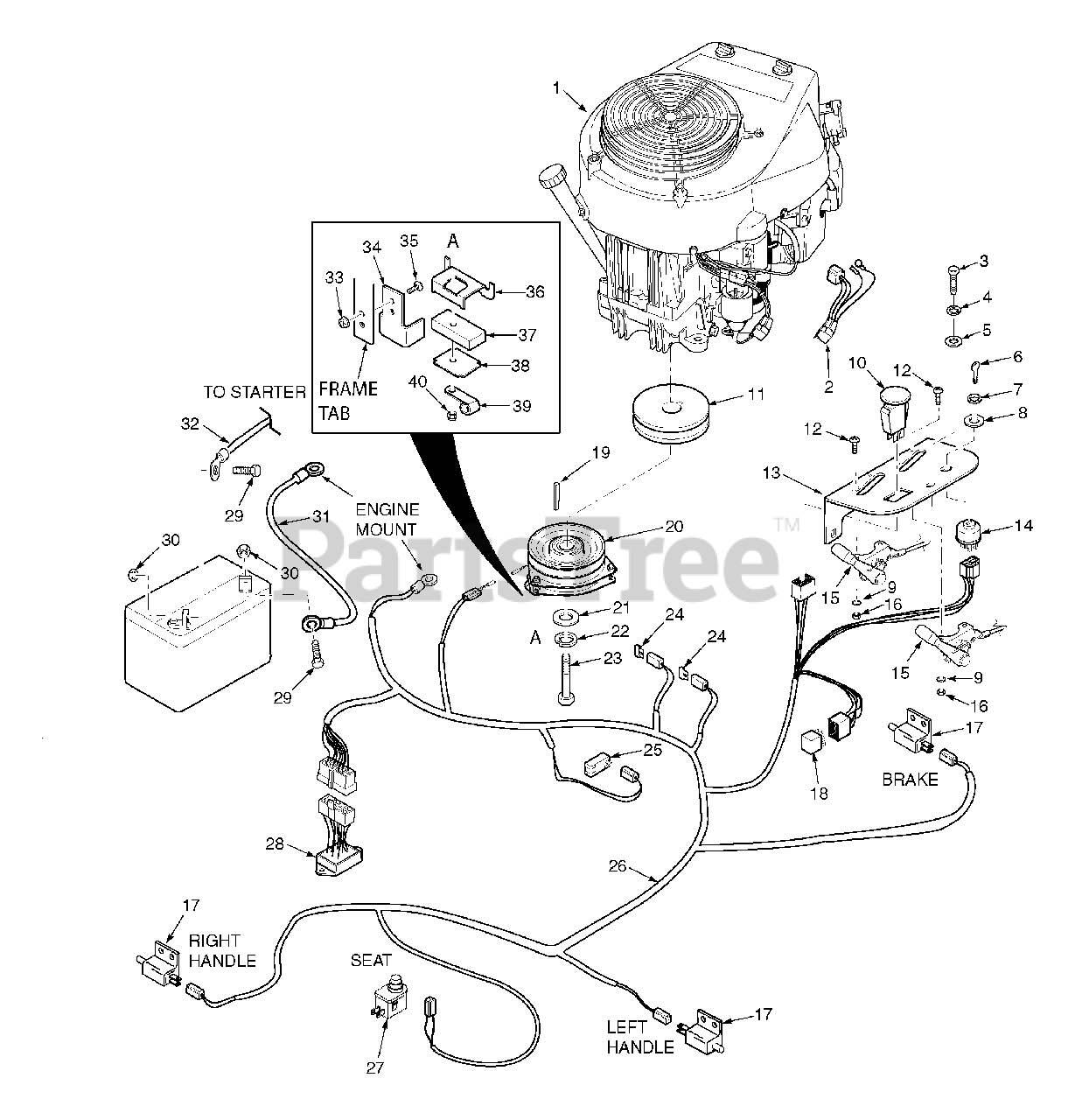

SMZC-36A - Scag Z-Cat 36" Mower Deck (SN: A460001 - A469999) Electrical System Parts Diagram

Z-Cat 36" Mower Deck

Electrical System Parts Diagram

  • Title

1

Scag 482931

Engine, Kawasaki 17hp (FH541V-AS36)

$

$

Currently unavailable

Scag 483024

Engine, Kawasaki 19hp (FH580V-AS33)

$

$

Currently unavailable

2

Scag 483103

Wire Harness Adapter, SZC KA

$45.99

$

Usually ships in 2-12 days

0

3

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

4

Scag 04030-03

Lockwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

5

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

6

Scag 48017-02

Key, Ignition

$4.49

$

In Stock, Qty 10

0

7

Scag 48017-04

Nut, Hex 5/8-32

$1.99

$

In Stock, Qty 5

0

8

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

9

Scag 04031-01

Lock Washer, #10 External Tooth

$0.99

$

In Stock, Qty 20+

0

10

Scag 483162

Switch, PTO
(Superseded to 483957)

$46.99

$

In Stock, Qty 20+

0

11

Scag 482968

Pulley, 5.45" Dia. 1" Bore

$135.99

$

Usually ships in 2-12 days

0

12

Scag 04010-12

Screw, #10-32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

13

Scag 461836

Instrument Panel

$48.99

$

Usually ships in 2-12 days

0

14

Scag 48798

Switch, Ignition

$27.99

$

In Stock, Qty 20+

0

15

Scag 483168

Control Cable

$44.99

$

In Stock, only 1 left!

0

16

Scag 04020-01

Nut, Hex #10-32

$8.99

$

In Stock, Qty 20+

0

17

Scag 481637

Switch, N/O

$9.99

$

In Stock, Qty 20+

0

18

Scag 483013

Relay

$21.99

$

In Stock, Qty 20+

0

19

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4"

$2.49

$

In Stock, only 2 left!

0

20

Scag 461772

Clutch Assembly, GT2.5 - 1" Bore

Note: (Incl. items 33 thru 40

$653.99

$

Usually ships in 2-12 days

0

21

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 13

0

22

Scag 04030-05

Lockwasher, 7/16 Spring

$0.99

$

In Stock, Qty 8

0

23

Scag 04102-04

Bolt, Hex Head 7/16-20 x 2-1/2" w/Patch

$2.49

$

In Stock, Qty 5

0

24

Scag 48298

Fuse, 20 amp

$

$

Not available

25

Scag 483072

Hourmeter
(Superseded to 484565)

$63.99

$

In Stock, only 1 left!

0

26

Scag 483020

Wire Harness, SZC

$485.99

$

Usually ships in 2-12 days

0

27

Scag 481638

Switch, Seat

$15.99

$

In Stock, Qty 20+

0

28

Scag 483029

Electric Module
(Superseded to 483599)

$137.99

$

In Stock, Qty 20+

0

29

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5"

$0.99

$

In Stock, Qty 6

0

30

Scag 04020-02

Nut, Hex 1/4-20

$0.99

$

In Stock, Qty 10

0

31

Scag 48029-15

Battery Cable, Negative Black

$17.99

$

In Stock, only 1 left!

0

32

Scag 48029-12

Battery Cable, Positive Red

$17.99

$

In Stock, only 1 left!

0

33

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 421370

Plate, Clutch Anti-Rotation

$22.99

$

Usually ships in 2-12 days

0

35

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

36

Scag 422533

Retainer, Clutch

$14.99

$

In Stock, only 1 left!

0

37

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

In Stock, only 1 left!

0

38

Scag 422534

Plate, Backing

$5.49

$

Usually ships in 2-12 days

0

39

Scag 48030-09

Clamp, Cable 1/2" ID

$1.49

$

In Stock, Qty 6

0

40

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+
