SMWC-61V - Scag Wildcat 61" Mower Deck (SN: B6100001 - B6199999) Cutter Deck 61V Parts Diagram

Wildcat 61" Mower Deck

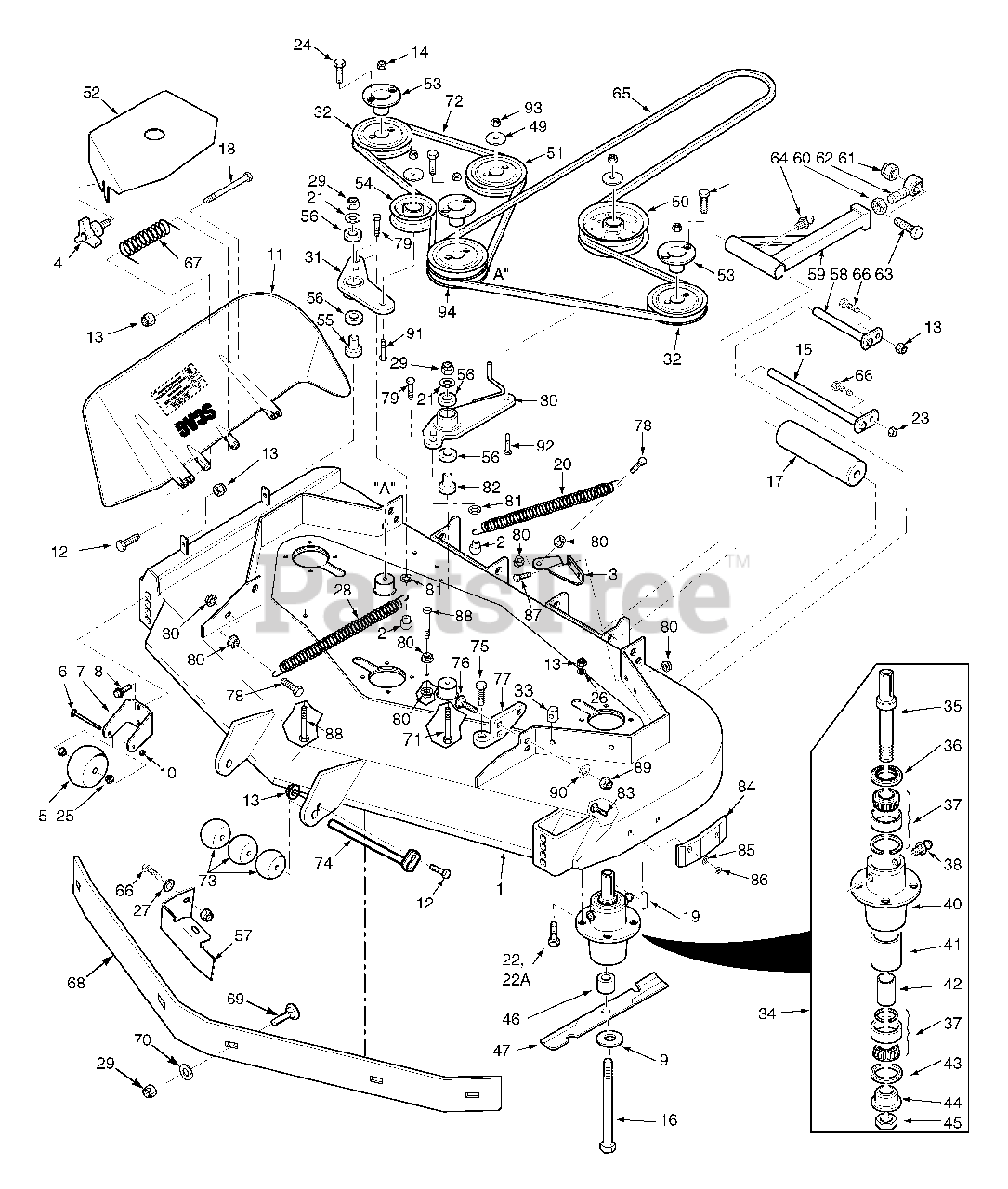

Cutter Deck 61V Parts Diagram

  • Title

1

Scag 461862

Cutter Deck Velocity Plus

$1840.99

$

Usually ships in 2-12 days

0

2

Scag 43687

Boss, Spring Anchor

$8.49

$

Usually ships in 2-12 days

0

3

Scag 424387

Bracket, L.H. Spring Anchor 61V

$33.99

$

Usually ships in 2-12 days

0

4

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

5

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

0

6

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

7

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

8

Scag 04017-27

Bolt, Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04043-06

Flatwasher, 5/8" Hardened

$1.99

$

In Stock, Qty 20+

0

10

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

11

Scag 461846

Discharge Chute

$68.99

$

In Stock, only 1 left!

0

12

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2", Rear

$0.99

$

In Stock, Qty 6

0

Scag 04001-12

Bolt, Hex Head 5/16-18 x 13/4", Front

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

15

Scag 45944

Shaft, Roller

$22.99

$

In Stock, Qty 20+

0

16

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

17

Scag 48038

Roller, Rear

$29.99

$

In Stock, only 2 left!

0

18

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

19

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

20

Scag 483246

Spring, L.H. Deck Drive

$63.99

$

Usually ships in 2-12 days

0

21

Scag 04043-04

Flatwasher, 3/8" - .938 x .391 x .105

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8

$0.99

$

In Stock, Qty 20+

0

23

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8

$0.99

$

In Stock, Qty 20+

0

25

Scag 48100-15

Bushing, .376 ID Oilite

$4.99

$

In Stock, Qty 20+

0

26

Scag 04030-03

Lockwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-15

Flatwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

28

Scag 482797

Spring, R.H. Deck Drive

$69.99

$

In Stock, only 3 left!

0

29

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 451830

Idler Arm Assembly, L.H. Drive
(Superseded to 462269)

$86.99

$

In Stock, only 3 left!

0

31

Scag 451843

lder Arm Assembly, R.H. Drive
(Superseded to 461946)

$86.99

$

In Stock, only 1 left!

0

32

Scag 483286

Pulley, Tapered Bore 6.33" Dia.

$38.99

$

In Stock, Qty 12

0

33

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

34

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 20+

0

35

Scag 43589

Shaft, Spindle

$59.99

$

In Stock, only 1 left!

0

36

Scag 481024

Seal Upper

$4.99

$

In Stock, Qty 20+

0

37

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

38

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

39

Scag 48677

Valve, Grease Relief

$9.49

$

Usually ships in 2-12 days

0

40

Scag 43644

Housing, Spindle

$60.99

$

In Stock, only 2 left!

0

41

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

42

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

43

Scag 481025

Seal, Lower

$4.99

$

In Stock, Qty 20+

0

44

Scag 43297

Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

45

Scag 481035

Nut, Special 1-1/16 - 18

$7.99

$

In Stock, only 3 left!

0

46

Scag 43590

Spacer, Spindle

$17.99

$

In Stock, Qty 20+

0

47

Scag 482879

Cutter Blade 21"

$26.99

$

In Stock, Qty 20+

0

48

Scag 483287

Pulley, Double Groove 6.33" Dia.

$65.99

$

Usually ships in 2-12 days

0

49

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

50

Scag 483210

Idler Pulley, 5" Dia.

$56.99

$

In Stock, Qty 5

0

51

Scag 48181

Idler Pulley, 5" Dia.

$26.99

$

In Stock, Qty 12

0

52

Scag 424324

Belt Cover (61V)

$96.99

$

Usually ships in 2-12 days

0

53

Scag 48926

Hub, Tapered 1-1/8" Bore

$31.99

$

In Stock, Qty 20+

0

54

Scag 483173

Idler Pulley, 3-1/2" Dia.

$57.99

$

In Stock, only 1 left!

0

55

Scag 43575

Pivot, Idler

$26.99

$

In Stock, only 2 left!

0

56

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

57

Scag 424209

Turbo Baffle, Bolt On

$72.99

$

In Stock, only 1 left!

0

58

Scag 451240

Push Arm Shaft

$53.99

$

In Stock, Qty 20+

0

59

Scag 461516

Push Arm

Note: (Includes 64,60,62)

$216.99

$

In Stock, only 2 left!

0

60

Scag 04020-16

Nut, 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

61

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

62

Scag 48763

Rod End, 5/8 Male RH Thread

$59.99

$

In Stock, Qty 6

0

63

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 10

0

64

Scag 48114-04

Grease Fitting, 90 Degree

$1.49

$

In Stock, Qty 20+

0

65

Scag 483243

Belt, Deck Drive 61V

$82.99

$

In Stock, Qty 7

0

66

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

67

Scag 483185

Spring, Discharge Chute
(Superseded to 483378)

$7.99

$

In Stock, only 4 left!

0

68

Scag 424164

Baffle Weldment, 61V
(Superseded to 424841)

$122.99

$

Usually ships in 2-12 days

0

69

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

70

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

71

Scag 04001-77

Bolt, Hex Head 3/8-16 X 3-1/2"

$1.49

$

In Stock, Qty 7

0

72

Scag 483157

Belt, Deck Drive R.H.

$59.99

$

In Stock, Qty 20+

0

73

Scag 482295

Wheel, Anti Scalp

$9.99

$

In Stock, Qty 20+

0

74

Scag 45944

Roller Shaft

$22.99

$

In Stock, Qty 20+

0

75

Scag 483167

Bolt, Special

$17.99

$

Usually ships in 2-12 days

0

76

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 6

0

77

Scag 461929

Lever Assy., Deck Level

$62.99

$

Usually ships in 2-12 days

0

78

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 20+

0

79

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

80

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

81

Scag 04030-04

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 8

0

82

Scag 43689

Pivot, Idler Short

$10.99

$

In Stock, Qty 20+

0

83

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

84

Scag 483176

Wear Pad

$34.99

$

In Stock, Qty 20+

0

85

Scag 04040-04

Flatwsher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

86

Scag 04021-04

Nut, Center Lock 5/16"

$0.99

$

In Stock, Qty 20+

0

87

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

88

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

89

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

90

Scag 04040-11

Flatwasher, 7/16-.500 x 1.250 x .083

$0.99

$

In Stock, Qty 13

0

91

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

92

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

93

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

94

Scag 483287

Pulley, Double Groove 6.33 Dia.

$65.99

$

Usually ships in 2-12 days

0
