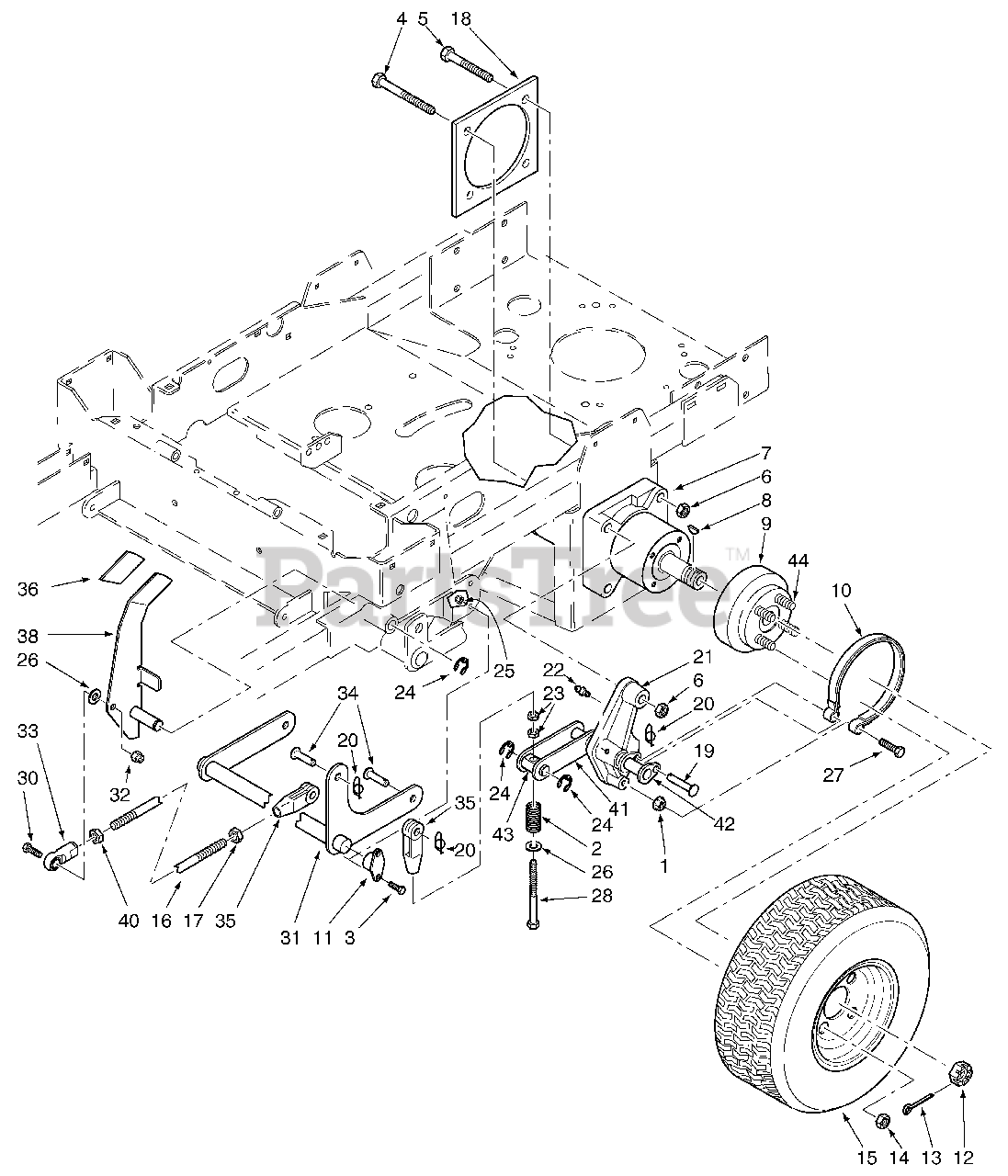

SMWC-61V - Scag Tiger Cub 61" Mower Deck (SN: D9300001 - D9399999) Brake Components Parts Diagram

Tiger Cub 61" Mower Deck

Brake Components Parts Diagram

  • Title

1

Scag 04019-06

Nut, Serr. Flange 1/2-13

$0.99

$

In Stock, Qty 11

0

2

Scag 48807

Spring

$32.99

$

Usually ships in 2-12 days

0

3

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

4

Scag 04001-163

Bolt, Hex Head 1/2-13 x 3-3/4"

$3.49

$

In Stock, Qty 14

0

5

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2-1/2"

$1.99

$

Usually ships in 2-12 days

0

6

Scag 04021-19

Nut, 1/2-13 Center Lock

$0.99

$

In Stock, Qty 10

0

7

Scag 483190

Wheel Motor, Hydro-Gear

$

$

Not available

8

Scag 04063-25

Key, Woodruff 5/16 x 1"

$2.99

$

In Stock, Qty 10

0

9

Scag 461438

Wheel Hub Assembly

$127.99

$

In Stock, only 1 left!

0

10

Scag 483644

Brake Band Assembly

$34.99

$

In Stock, only 2 left!

0

11

Scag 482061

Bushing, Self Align

$15.99

$

Usually ships in 2-12 days

0

12

Scag 48680

Nut, Hex Castle 1.0-20 UNEF

$17.99

$

In Stock, only 4 left!

0

13

Scag 04061-06

Cotter Pin, 9/64 x 1-1/2"

$0.99

$

In Stock, Qty 11

0

14

Scag 04028-02

Lug Nut, 1/2-20

$1.99

$

In Stock, Qty 20+

0

15

Scag 482044

(48" & 52") Wheel Assembly 23 x 9.5 -12
(Superseded to 484105)

$444.99

$

Usually ships in 2-12 days

0

Scag 481850

(61") Wheel Assembly 24 x 12 x 12

$394.99

$

Usually ships in 2-12 days

0

Scag 481659

(48" & 52") Rim

$140.99

$

In Stock, only 1 left!

0

Scag 481851

(61") Rim

$141.99

$

In Stock, only 2 left!

0

Scag 482194

(48" & 52") Tire 23 x 9.5 - 12
(Superseded to 484104)

$329.99

$

In Stock, only 1 left!

0

Scag 481852

(61") Tire 24 x 12 x 12

$297.99

$

Usually ships in 2-12 days

0

16

Scag 04004-46

Brake Rod Stud, 3/8-24 x 8.125

$18.99

$

Usually ships in 2-12 days

0

17

Scag 04020-14

Nut, 3/8-24 UNF

$0.99

$

In Stock, only 3 left!

0

18

Scag 423279

Plate Weldment, Motor Backing

$26.99

$

Usually ships in 2-12 days

0

19

Scag 04064-16

Clevis Pin, 3/8 x 1.93"

$

$

Not available

20

Scag 04069-01

Pin, Rue Cotter 3/8 Dia.

$1.49

$

In Stock, Qty 5

0

21

Scag 451970

Brake Linkage LH
(Superseded to 462100)

$159.99

$

Usually ships in 2-12 days

0

21

Scag 451971

Brake Linkage RH
(Superseded to 462101)

$159.99

$

Usually ships in 2-12 days

0

22

Scag 48114-04

Grease Fitting, 1/4-28

$1.49

$

In Stock, Qty 20+

0

23

Scag 04020-25

Nut, 3/8-24 UNF

$0.99

$

In Stock, only 2 left!

0

24

Scag 04050-01

Retaining Ring, .625 Ext.

$0.99

$

In Stock, Qty 20+

0

25

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-187

Bolt, Hex Head 1/2-13 x 2-1/2" Grade 8

$2.49

$

In Stock, Qty 20+

0

28

Scag 04001-166

Bolt, Hex Head 3/8-24 x 3-3/4"
(Superseded to 04001-169)

$4.99

$

Usually ships in 2-12 days

0

29

Scag 04061-02

Cotter Pin, 3/32 x 3/4"

$0.99

$

In Stock, Qty 11

0

30

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

31

Scag 451463

Brake Shaft

$78.99

$

Usually ships in 2-12 days

0

32

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

33

Scag 48544

Rod End, 3/8-24 LH Thread

$27.99

$

Usually ships in 2-12 days

0

34

Scag 04064-02

Clevis Pin, 3/8 x 1.06

$1.49

$

In Stock, only 4 left!

0

35

Scag 48343-04

Clevis, 3/8-24

$17.99

$

In Stock, only 2 left!

0

36

Scag 482102

Grip, Brake Lever

$3.99

$

In Stock, only 1 left!

0

37

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

38

Scag 461509

Brake Lever

Note: (includes item 36)

$62.99

$

Usually ships in 2-12 days

0

39

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

40

Scag 04020-17

Nut, 3/8-24 UNF-2B LH Thread

$2.49

$

In Stock, only 3 left!

0

41

Scag 422483

Lever, Brake

$

$

Not available

42

Scag 45974

Shaft Weldment, Pivot

$

$

Not available

43

Scag 43495

Pin, Pivot

$

$

Not available

44

Scag 04008-01

Bolt, Serr. Flange 1/2-20 x 4.563"

$3.99

$

In Stock, Qty 20+

0
