SMWC-61V - Scag Tiger Cat 61" Mower Deck (SN: D9300001 - D9399999) BDP-10A Hydraulic Pump Assembly Parts Diagram

Tiger Cat 61" Mower Deck

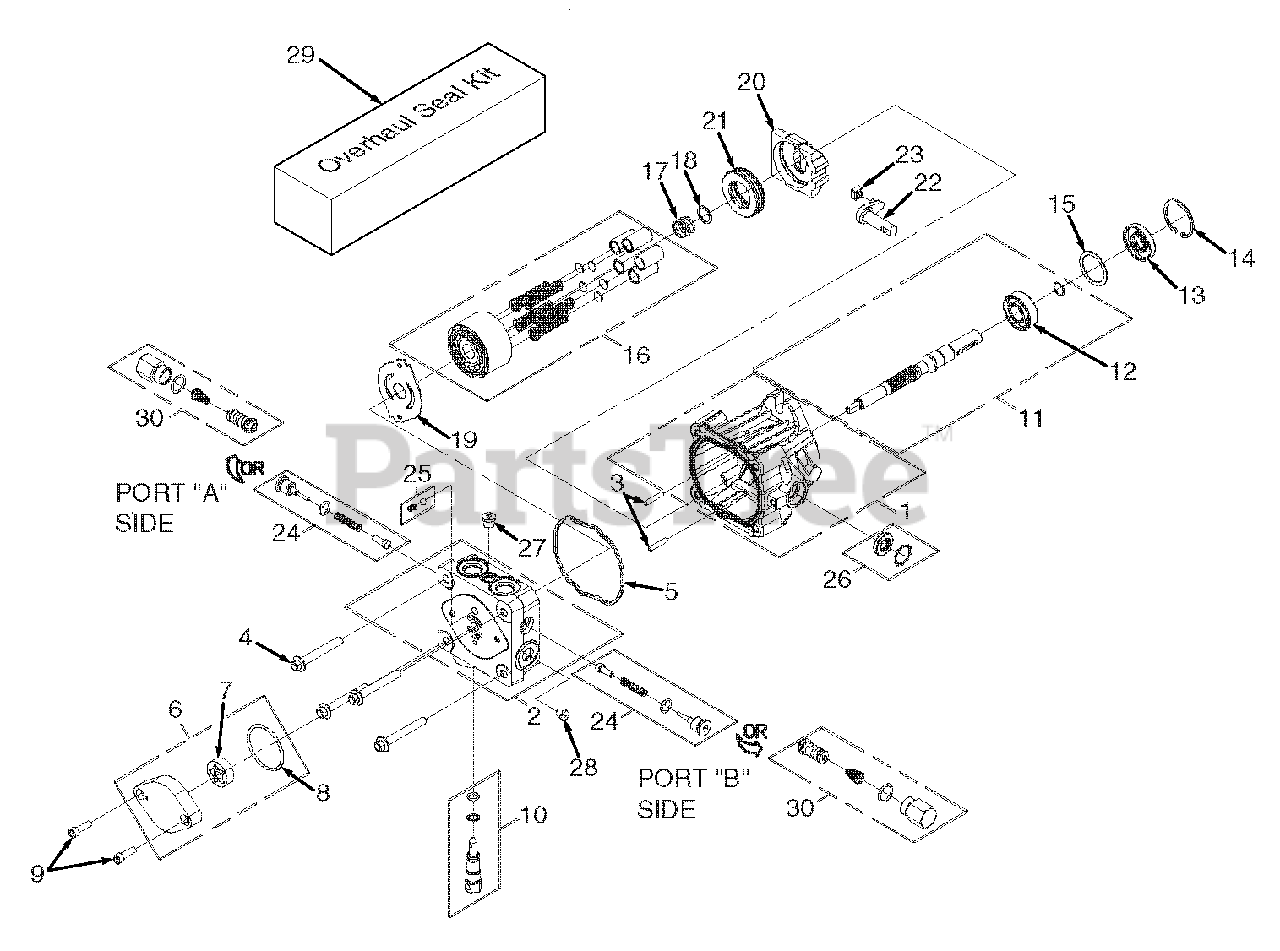

BDP-10A Hydraulic Pump Assembly Parts Diagram

  • Title

1

Scag HG 70516

Housing Kit

$187.99

$

Usually ships in 2-12 days

0

2

Scag HG 70573

End Cap Kit

$

$

Not available

3

Scag HG 50641

Straight Headless Pin

$

$

Not available

4

Scag HG 50969

Hex Flange Bolt, M8-1.25 x 60mm

$6.49

$

Usually ships in 2-12 days

0

5

Scag HG 51232

Housing O-Ring

$

$

Not available

6

Scag HG 2513027

Charge Pump Kit

$162.99

$

Usually ships in 2-12 days

0

7

Scag HG 50273

Gerotor Assembly

$

$

Not available

8

Scag HG 9004101-1340

O-Ring

$

$

Currently unavailable

9

Scag HG 50095

Socket Head Screw, M6 x 1.0-20mm

$

$

Not available

10

Scag HG 2513030

Bypass Valve Kit

$44.99

$

Usually ships in 2-12 days

0

11

Scag HG 70521

Pumpshaft Kit

$228.99

$

In Stock, only 1 left!

0

12

Scag HG 50315

Ball Bearing, 17 x 40 x 12mm

$25.99

$

In Stock, only 1 left!

0

13

Scag HG 51161

Lip Seal

$12.99

$

Usually ships in 2-12 days

0

14

Scag HG 50329

Retaining Ring

$6.49

$

Usually ships in 2-12 days

0

15

Scag HG 50951

Spacer

$4.99

$

Usually ships in 2-12 days

0

16

Scag HG 70331

Cylinder Block Kit

$134.99

$

Usually ships in 2-12 days

0

17

Scag HG 2003014

Block Spring

$

$

Not available

18

Scag HG 2003017

Block Thrust Washer

$

$

Not available

19

Scag HG 51444

Valve Plate

$56.99

$

Usually ships in 2-12 days

0

20

Scag HG 2003087

Swash Plate

$

$

Not available

21

Scag HG 50551

Ball Thrust Bearing

$25.99

$

Usually ships in 2-12 days

0

22

Scag HG 2003005

Trunnion Arm

$

$

Not available

23

Scag HG 2000015

Slot Guide

$9.49

$

Usually ships in 2-12 days

0

24

Scag HG 2510062

Check Valve Kit (.024" Orifice) port "A" on Left Hand Pump, port "B" on Right Hand Pump

$39.99

$

In Stock, only 2 left!

0

25

Scag HG 70403

Charge Relief Kit

$10.99

$

Usually ships in 2-12 days

0

26

Scag HG 2513043

Trunnion Seal with Retainer

$14.99

$

In Stock, only 1 left!

0

27

Scag HG 9005110-4400

Straight Thread Plug

$

$

Currently unavailable

28

Scag HG 50408

Straight Headless Pin

$

$

Not available

29

Scag HG 70525

Overhaul Seal Kit

$69.99

$

Usually ships in 2-12 days

0

30

Scag HG 70743

System Check Relief Kit, port "B" on Left Hand Pump, port "A" on Right Hand Pump

$112.99

$

Usually ships in 2-12 days

0
