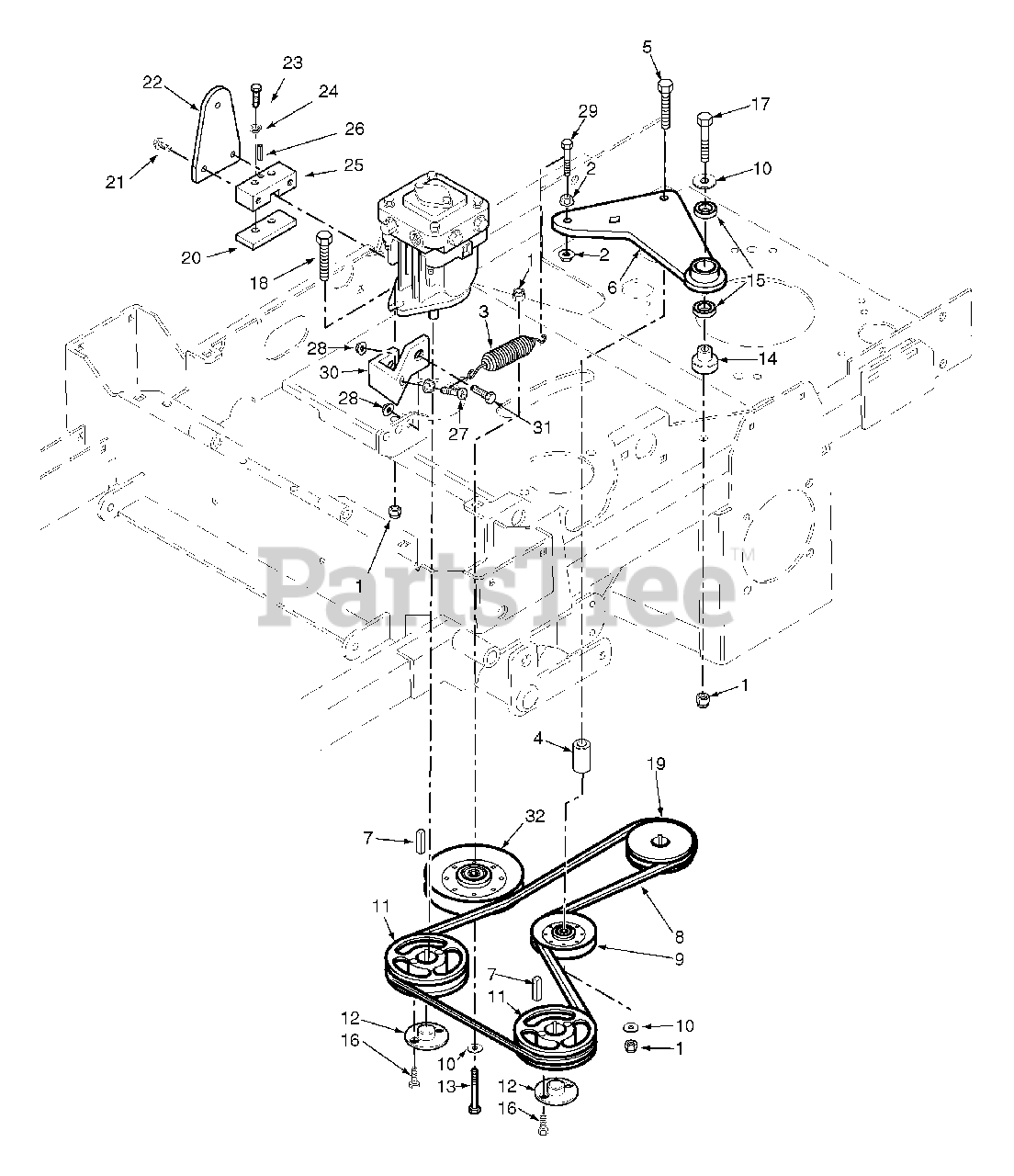

SMWC-61A - Scag Wildcat 61" Mower Deck (SN: A5700001 - A5799999) Drive System Components Parts Diagram

Wildcat 61" Mower Deck

Drive System Components Parts Diagram

  • Title

1

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 483087

Spring, Pump Idler

$45.99

$

In Stock, only 1 left!

0

4

Scag 43286

Spacer

$2.49

$

In Stock, only 2 left!

0

5

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

6

Scag 461603

Idler Arm Assy., Pump Drive

$85.99

$

In Stock, only 1 left!

0

7

Scag 04063-14

Key, 5 x 5 x 25mm

$0.99

$

In Stock, Qty 5

0

8

Scag 483084

Belt, Transmission
(Superseded to 483157)

$57.99

$

In Stock, Qty 20+

0

9

Scag 481048

Pulley, 3" Dia. Idler
(Superseded to 483208)

$33.99

$

In Stock, Qty 20+

0

10

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

11

Scag 482744

Pulley, 5.75 OD Taper Bore

$30.99

$

Usually ships in 2-12 days

0

12

Scag 482085

Hub, Tapered, 15mm Bore

$27.99

$

Usually ships in 2-12 days

0

13

Scag 04001-45

Bolt, 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

14

Scag 43503

Pivot, Idler

$26.99

$

In Stock, Qty 18

0

15

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

16

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

19

Scag 483081

Pulley, 5.75" Dia. - 1-1/8" Bore

$103.99

$

In Stock, only 3 left!

0

20

Scag 421203

Clamp Plate

$18.99

$

Usually ships in 2-12 days

0

21

Scag 04017-05

Hex Head Capscrew, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 422969

Control Lever, Pump

$8.49

$

Usually ships in 2-12 days

0

23

Scag 04017-05

Hex Head Capscrew, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 48829

Block, Pump Control

$21.99

$

In Stock, only 1 left!

0

26

Scag 04060-06

Roll Pin

$0.99

$

In Stock, only 1 left!

0

27

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

28

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

30

Scag 424137

Bracket

$31.99

$

Usually ships in 2-12 days

0

31

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

32

Scag 482416

Pulley, 5" Dia. Idler
(Superseded to 483215)

$60.99

$

In Stock, Qty 20+

0
