SMWC-52V - Scag Wildcat 52" Mower Deck (SN: D9200001 - D9299999) (Rev 02) Steering Components Parts Diagram

Wildcat 52" Mower Deck

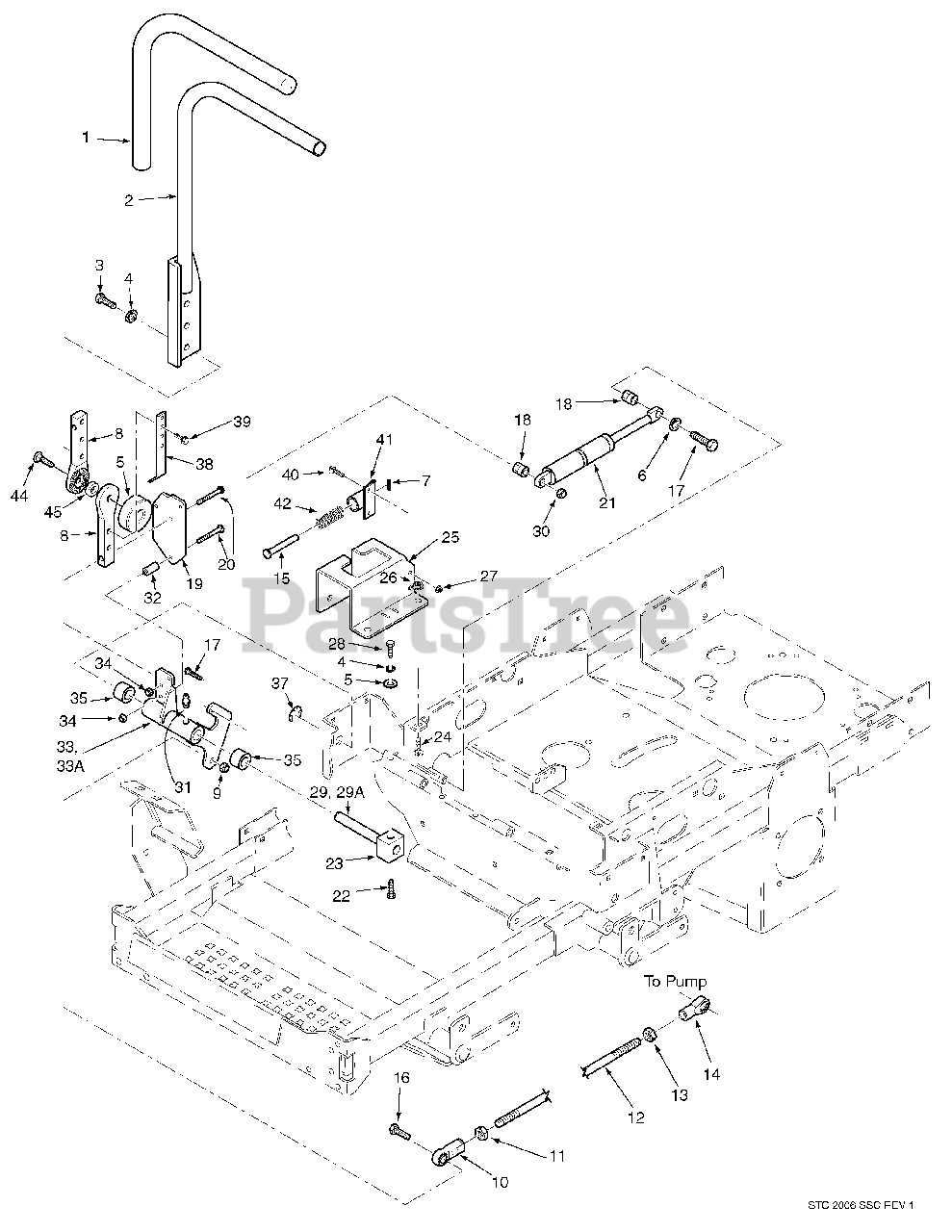

Steering Components Parts Diagram

  • Title

1

Scag 482340

Grip, Control Lever

$7.99

$

Usually ships in 2-12 days

0

2

Scag 461914

Handle Bar, LH
(Superseded to 462802)

Note: (Incl. item 1)

$147.99

$

In Stock, only 1 left!

0

Scag 461923

Handle Bar, RH
(Superseded to 462803)

Note: (Incl. item 1)

$147.99

$

In Stock, only 1 left!

0

3

Scag 04001-09

Bolt, Hex Hd. 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

4

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

5

Scag 483269

Knob

$24.99

$

In Stock, only 1 left!

0

6

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083")

$0.99

$

In Stock, Qty 20+

0

7

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

8

Scag 483238

Pivot, Control Lever

$37.99

$

Usually ships in 2-12 days

0

9

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 482330

Rod End, 3/8-24 RH Female

$25.99

$

In Stock, only 1 left!

0

11

Scag 04020-14

Nut, 3/8-24 RH Thread

$0.99

$

In Stock, only 3 left!

0

12

Scag 482623

Rod, Pump Control Linkage

$14.99

$

Usually ships in 2-12 days

0

13

Scag 04020-17

Nut, 3/8-24 UNF-2B LH Thread

$2.49

$

In Stock, only 3 left!

0

14

Scag 482331

Rod End, 3/8-24 LH Thread

$25.99

$

Usually ships in 2-12 days

0

15

Scag 43477

Pin Retainer

$19.99

$

In Stock, only 2 left!

0

16

Scag 04001-20

Bolt, Hex Hd. 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-12

Bolt, Hex Hd. 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 43602

Spacer, Pump Damper

$3.49

$

In Stock, only 1 left!

0

19

Scag 423599

Plate, Control Lever

$12.99

$

Usually ships in 2-12 days

0

20

Scag 04001-17

Bolt, Hex Hd. 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

21

Scag 482452

Gas Damper

Note: Indentify the Gas Damper installed using the colored print and part number labeled on the Gas Damper. See Figure Below.

$95.99

$

In Stock, only 3 left!

0

Scag 482794

Gas Damper
(Superseded to 484193)

Note: Indentify the Gas Damper installed using the colored print and part number labeled on the Gas Damper. See Figure Below.

$74.99

$

In Stock, only 2 left!

0

22

Scag 04001-19

Bolt, Hex Hd. 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

23

Scag 482099

Block, Clamping

$32.99

$

Usually ships in 2-12 days

0

24

Scag 04003-12

Bolt, Carriage, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 461770

Control Plate - LH w/Decal

$39.99

$

Usually ships in 2-12 days

0

Scag 461771

Control Plate - RH w/Decal

$39.99

$

Usually ships in 2-12 days

0

26

Scag 04019-03

Nut, Serr., Flng., 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

28

Scag 04001-18

Bolt, Hex Hd. 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

29

Scag 43616

Shaft, Steering Control

$10.99

$

Usually ships in 2-12 days

0

30

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

31

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$1.49

$

In Stock, Qty 20+

0

32

Scag 43559

Spacer, Control

$1.49

$

Usually ships in 2-12 days

0

33

Scag 49574

Control Lever Assy RH

Note: (Incl. 31 & 35)

$123.99

$

Usually ships in 2-12 days

0

Scag 49573

Control Lever Assy LH

Note: (Incl. 31 & 35)

$123.99

$

Usually ships in 2-12 days

0

34

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

35

Scag 48100-06

Bushing

$1.49

$

In Stock, only 1 left!

0

36

Scag 04041-08

Flatwasher, 3/4 (.766 x 1.25 x .059")

$0.99

$

In Stock, Qty 20+

0

37

Scag 04050-02

Retaining Ring, 3/4" Ext.

$0.99

$

In Stock, Qty 7

0

38

Scag 423057

Bracket, Switch Actuator

$14.99

$

Usually ships in 2-12 days

0

39

Scag 04017-16

Bolt, Hex Serr. Flng. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

40

Scag 04003-02

Bolt, Carr. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

41

Scag 45918

Bracket, Control Return

$45.99

$

In Stock, only 2 left!

0

42

Scag 481389

Spring

$3.99

$

In Stock, only 4 left!

0

43

Scag 43477

Pin Retainer

$19.99

$

In Stock, only 2 left!

0

44

Scag 04003-38

Bolt, Carriage 5/16-18 x 1-1/2"

$0.99

$

In Stock, only 2 left!

0

45

Scag 483250

Rubber Spacer

$9.49

$

In Stock, only 3 left!

0
