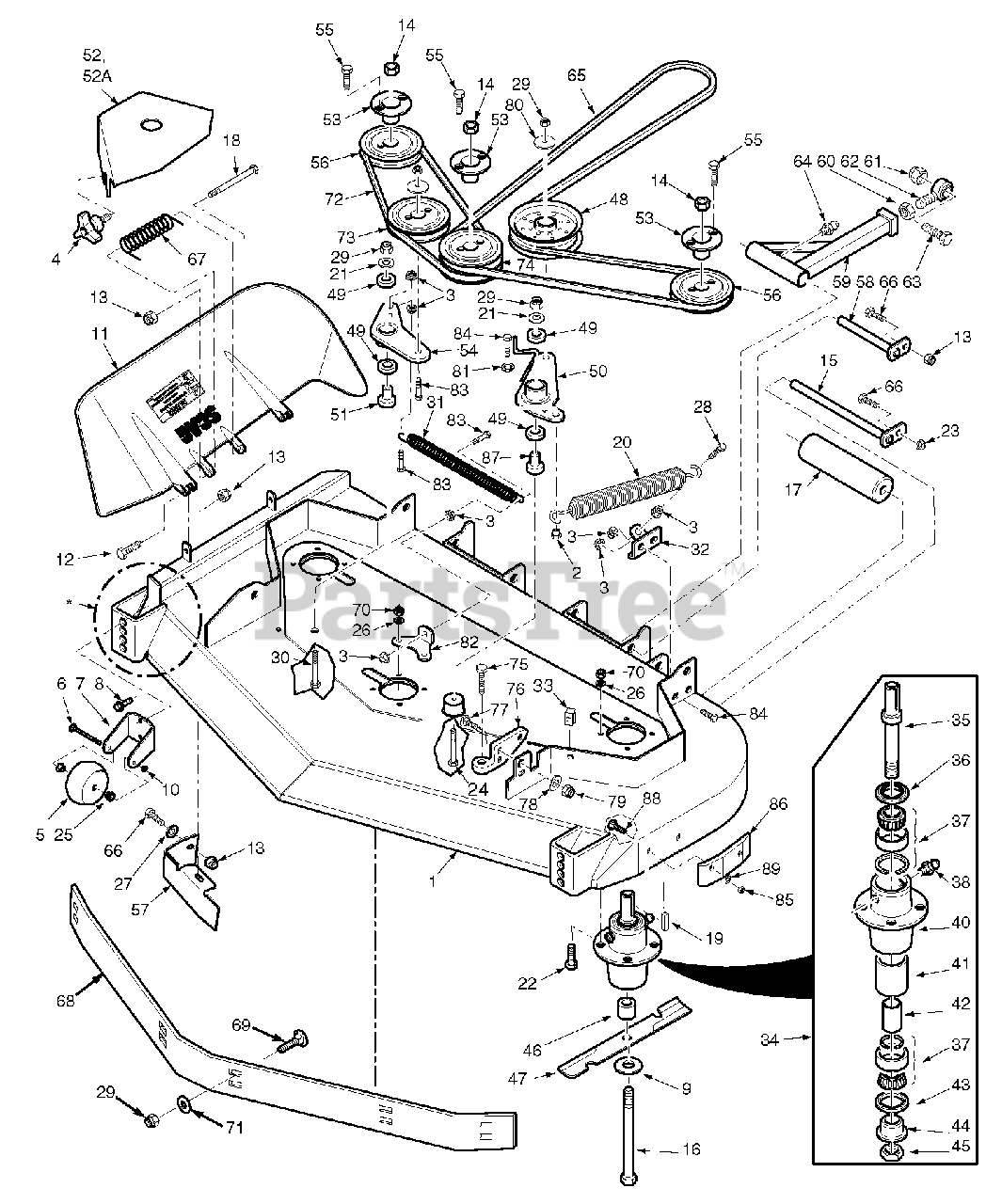

SMWC-52V - Scag Tiger Cat 52" Mower Deck (SN: D9200001 - D9299999) 48V & 52V Cutter Decks Parts Diagram

Tiger Cat 52" Mower Deck

48V & 52V Cutter Decks Parts Diagram

  • Title

1

Scag 461854

Cutter Deck Velocity Plus

$1462.99

$

Usually ships in 2-12 days

0

1

Scag 461858

Cutter Deck Velocity Plus

$1586.99

$

Usually ships in 2-12 days

0

2

Scag 43686

Boss, Spring Anchor

$7.99

$

Usually ships in 2-12 days

0

3

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

4

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

5

Scag 481632

Anti-Scalp Wheel

$21.99

$

In Stock, Qty 20+

0

6

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

7

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

8

Scag 04017-27

Bolt, Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04043-06

Flatwasher, 5/8" Hardened

$1.99

$

In Stock, Qty 20+

0

10

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

11

Scag 461844

Discharge Chute

$66.99

$

In Stock, only 2 left!

0

11

Scag 461845

Discharge Chute

$66.99

$

In Stock, only 1 left!

0

12

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2", Rear

$0.99

$

In Stock, Qty 6

0

12

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4", Front

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

15

Scag 45944

Shaft, Roller

$21.99

$

In Stock, Qty 20+

0

16

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

17

Scag 48038

Roller, Rear

$28.99

$

In Stock, only 2 left!

0

18

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

19

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

20

Scag 483246

Spring, Idler LH

$51.99

$

Usually ships in 2-12 days

0

21

Scag 04043-04

Flatwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4" Gr. 8

$0.99

$

In Stock, Qty 20+

0

23

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

25

Scag 48100-15

Bushing, .376 ID Oilite

$4.99

$

In Stock, Qty 20+

0

26

Scag 04030-03

Lockwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-15

Flatwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr. 8

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

31

Scag 483247

Spring, Idler RH

$51.99

$

In Stock, only 1 left!

0

32

Scag 424369

Bracket, Spring Anchor LH 48V

$61.99

$

Usually ships in 2-12 days

0

32

Scag 424409

Bracket, Spring Anchor LH 52V

$15.99

$

Usually ships in 2-12 days

0

33

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

34

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

35

Scag 43589

Shaft, Spindle

$58.99

$

In Stock, only 1 left!

0

36

Scag 481024

Seal Upper

$4.99

$

In Stock, Qty 20+

0

37

Scag 481022

Bearing Assembly

$59.99

$

In Stock, Qty 15

0

38

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

39

Scag 48677

Valve, Grease Relief

$

$

Not available

40

Scag 43644

Housing, Spindle

$58.99

$

In Stock, only 2 left!

0

41

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

42

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

43

Scag 481025

Seal, Lower

$4.99

$

In Stock, Qty 20+

0

44

Scag 43297

Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

45

Scag 481035

Nut, Special 1-1/16 - 18

$7.99

$

In Stock, only 3 left!

0

46

Scag 43590

Spacer, Spindle

$17.99

$

In Stock, Qty 20+

0

47

Scag 482877

Cutter Blade 16.5"

$22.99

$

In Stock, Qty 20+

0

47

Scag 482878

Cutter Blade 18"

$23.99

$

In Stock, Qty 20+

0

48

Scag 483210

Pulley, Idler 5" Dia.

$55.99

$

In Stock, only 2 left!

0

49

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

50

Scag 461940

Idler Arm Assy.
(Superseded to 462269)

$69.99

$

In Stock, only 2 left!

0

51

Scag 43689

Idler Pivot

$10.99

$

In Stock, Qty 20+

0

52

Scag 424322

Belt Cover (48V)

$39.99

$

Usually ships in 2-12 days

0

52

Scag 424323

Belt Cover (52V)

$66.99

$

Usually ships in 2-12 days

0

53

Scag 48926

Hub, Tapered 1-1/8" Bore

$30.99

$

In Stock, Qty 20+

0

54

Scag 461946

Idler Arm

$69.99

$

In Stock, only 1 left!

0

55

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

56

Scag 483282

Pulley 4.75"

$36.99

$

In Stock, only 2 left!

0

56

Scag 483284

Pulley 5.35"

$37.99

$

In Stock, only 1 left!

0

57

Scag 424208

Turbo Baffle, Bolt On
(Superseded to 424677)

$31.99

$

In Stock, only 1 left!

0

58

Scag 451240

Push Arm Shaft

$52.99

$

In Stock, Qty 20+

0

59

Scag 461516

Push Arm

Note: (Includes 64,60,62)

$211.99

$

Usually ships in 2-12 days

0

60

Scag 04020-16

Nut, 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

61

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

62

Scag 48763

Rod End, 5/8 Male RH Thread

$57.99

$

In Stock, Qty 6

0

63

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 10

0

64

Scag 48114-04

Grease Fitting, 90 Degree

$0.99

$

In Stock, Qty 20+

0

65

Scag 483241

Belt, Cutter Deck Drive (48V)

$65.99

$

In Stock, Qty 20+

0

65

Scag 483242

Belt, Cutter Deck Drive (52V)

$80.99

$

In Stock, Qty 12

0

66

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

67

Scag 483378

Spring, Discharge Chute

$7.49

$

In Stock, only 4 left!

0

68

Scag 424839

Baffle Custom-Cut, 48V (7-Position)

$84.99

$

In Stock, only 1 left!

0

68

Scag 424840

Baffle Custom-Cut, 52V (7-Position)

$101.99

$

Usually ships in 2-12 days

0

69

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

70

Scag 04021-22

Nut, Elastic Stop 5/16-18

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

71

Scag 04043-04

Flatwasher 3/8"

$0.99

$

In Stock, Qty 20+

0

72

Scag 483239

Belt, RH Cutter Deck

$31.99

$

In Stock, only 1 left!

0

72

Scag 483240

Belt, RH Cutter Deck

$34.99

$

In Stock, only 1 left!

0

73

Scag 48181

Pulley, Idler 5" Dia.

$26.99

$

In Stock, Qty 11

0

74

Scag 483283

Pulley, Double Groove

$62.99

$

In Stock, only 1 left!

0

74

Scag 483285

Pulley, Double Groove

$63.99

$

In Stock, only 1 left!

0

75

Scag 483167

Bolt, Special

$17.99

$

Usually ships in 2-12 days

0

76

Scag 461929

Lever Assy., Deck Level

$61.99

$

Usually ships in 2-12 days

0

77

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 6

0

78

Scag 04040-11

Flatwasher, 7/16-.500 x 1.25 x .083"

$0.99

$

In Stock, Qty 13

0

79

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

80

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

81

Scag 04030-03

Lockwasher 3/8"

$0.99

$

In Stock, Qty 20+

0

82

Scag 424376

Bracket, Spring Anchor RH

$12.99

$

Usually ships in 2-12 days

0

82

Scag 424377

Bracket, Spring Anchor RH

$11.99

$

In Stock, only 1 left!

0

83

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr. 8

$0.99

$

In Stock, Qty 20+

0

84

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

85

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

86

Scag 483176

Wear Pad

$33.99

$

In Stock, Qty 20+

0

87

Scag 43689

Idler Pivot

$10.99

$

In Stock, Qty 20+

0

88

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

89

Scag 04040-04

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0
