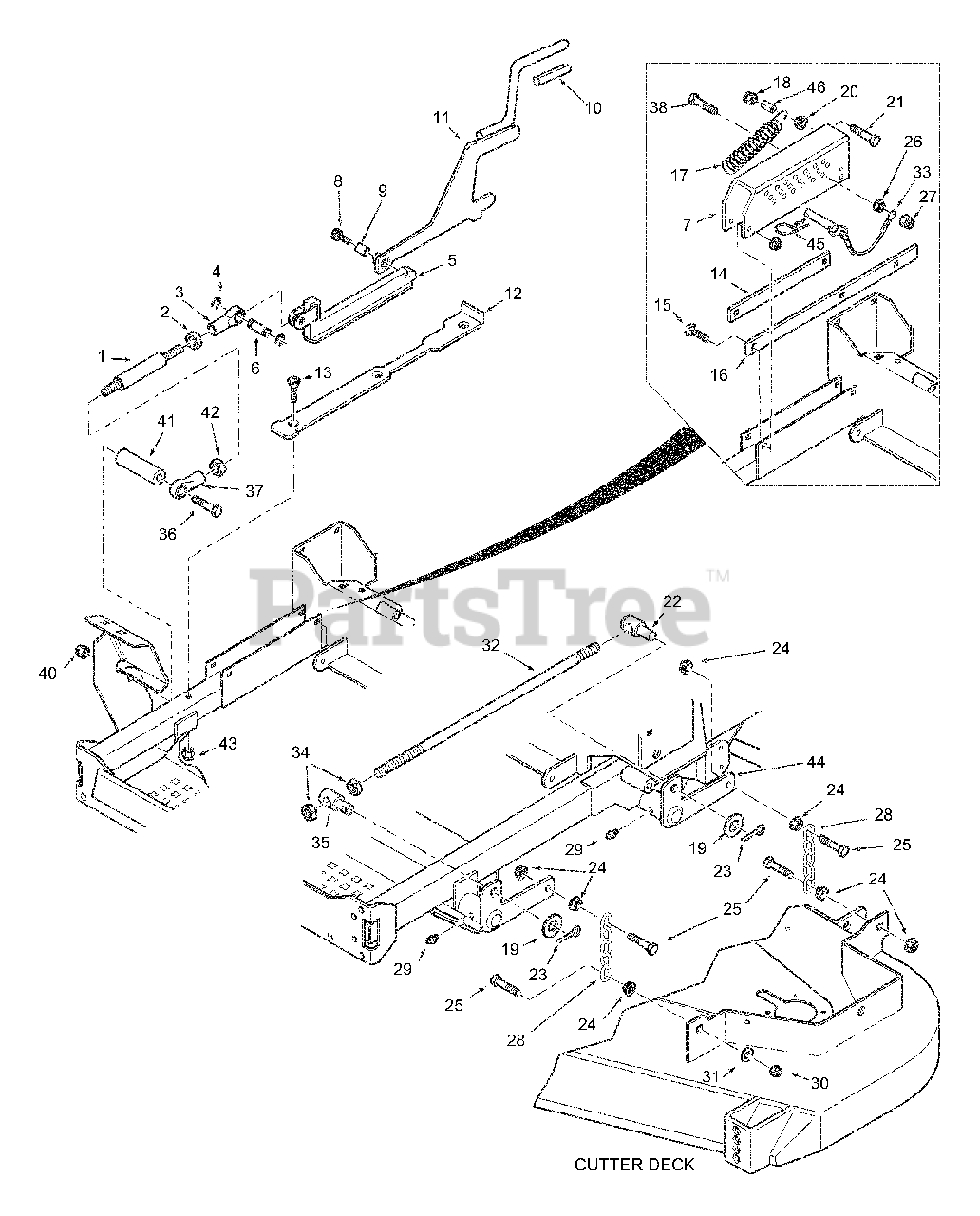

SMTC-61A - Scag Tiger Cub 61" Mower Deck (SN: 8470000 - 8479999) Cutter Deck Controls Parts Diagram

Tiger Cub 61" Mower Deck

Cutter Deck Controls Parts Diagram

  • Title

1

Scag 482624

Rod, Deck Lift Linkage

$10.99

$

Usually ships in 2-12 days

0

2

Scag 04020-28

Nut, Jam 1/2-20 LH Thread

$3.49

$

In Stock, Qty 8

0

3

Scag 481766

Rod End, 1/2-20 Female Thread

$48.99

$

In Stock, only 1 left!

0

4

Scag 04050-10

Retaining Ring, 1/2" External "E"

$0.99

$

In Stock, only 4 left!

0

5

Scag 482429

Slide, Deck Height Adjust

$87.99

$

Usually ships in 2-12 days

0

6

Scag 43487

Pin, Deck Lift

$26.99

$

In Stock, only 1 left!

0

7

Scag 423463

Bracket, Cutting Height Adjustment

$93.99

$

Usually ships in 2-12 days

0

8

Scag 04009-02

Bolt, Shoulder 1/2-3/4"

$3.99

$

In Stock, only 1 left!

0

9

Scag 48100-14

Bushing .502 ID

$2.49

$

In Stock, only 2 left!

0

10

Scag 482707

Grip, Deck Latch Lever

$4.49

$

Usually ships in 2-12 days

0

11

Scag 461587

Lever, Deck Latch
(Superseded to 461624)

Note: (Includes 9 & 10)

$82.99

$

Usually ships in 2-12 days

0

12

Scag 422346

Slide, Cutting Height

$45.99

$

Usually ships in 2-12 days

0

13

Scag 04014-03

Screw, Cap 5/16-18 x 3" FHHS

$1.99

$

In Stock, Qty 7

0

14

Scag 422381

Guide, Short

$19.99

$

Usually ships in 2-12 days

0

15

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

16

Scag 422380

Guide, Long

$32.99

$

Usually ships in 2-12 days

0

17

Scag 481598

Spring, Helper

$65.99

$

Usually ships in 2-12 days

0

18

Scag 04021-05

Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

19

Scag 04040-09

Flatwasher, 5/8-.656 x 1.312 x .095

$0.99

$

In Stock, Qty 12

0

20

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

22

Scag 43611

Swivel Joint LH
(Superseded to 43678)

$18.99

$

Usually ships in 2-12 days

0

23

Scag 04061-07

Cotter Pin, 3/16 x 1"

$1.49

$

In Stock, Qty 9

0

24

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

26

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

27

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 48540

Chain
(Superseded to 482628)

$11.99

$

In Stock, only 3 left!

0

29

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

30

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

31

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

32

Scag 04004-45

Stud, 1/2-13 x 20"

$25.99

$

Usually ships in 2-12 days

0

33

Scag 481547

Lanyard Pin

$16.99

$

In Stock, only 1 left!

0

34

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

35

Scag 43612

Swivel Joint RH
(Superseded to 43679)

$18.99

$

Usually ships in 2-12 days

0

36

Scag 04001-155

Bolt, Hex Head 1/2-13 x 5"

$4.99

$

In Stock, only 2 left!

0

37

Scag 481765

Rod End, 1/2-20 Female RH Thread

$41.99

$

In Stock, only 1 left!

0

38

Scag 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

?39

Scag 43572

Spacer

$1.99

$

In Stock, Qty 5

0

40

Scag 04021-02

Lock Nut, 1/4-20

$0.99

$

In Stock, Qty 5

0

41

Scag 43557

Spacer
(Superseded to 43630)

$22.99

$

Usually ships in 2-12 days

0

42

Scag 04020-27

Nut, 1/2-20 UNF-2B

$4.49

$

In Stock, Qty 5

0

43

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

44

Scag 45904

Lift Bellcrank Weldment, LH Rear

$105.99

$

Usually ships in 2-12 days

0

Scag 45905

Lift Bellcrank Weldment, RH Rear

$105.99

$

Usually ships in 2-12 days

0

Scag 04041-14

Flatwasher, 1.0-1.062 x 1.5 x .048

$0.99

$

In Stock, Qty 15

0

Scag 04050-08

Retaining Ring, 1" ext.

$0.99

$

In Stock, Qty 12

0

45

Scag 04062-04

Hair Pin Cotter, .177 x 3-1/4"

$1.49

$

In Stock, Qty 20+

0

46

UNKNOWN

$

$

Not available
