SMTC-61A - Scag Tiger Cub 61" Mower Deck (SN: 8470000 - 8479999) Cutter Deck 61A Parts Diagram

Tiger Cub 61" Mower Deck

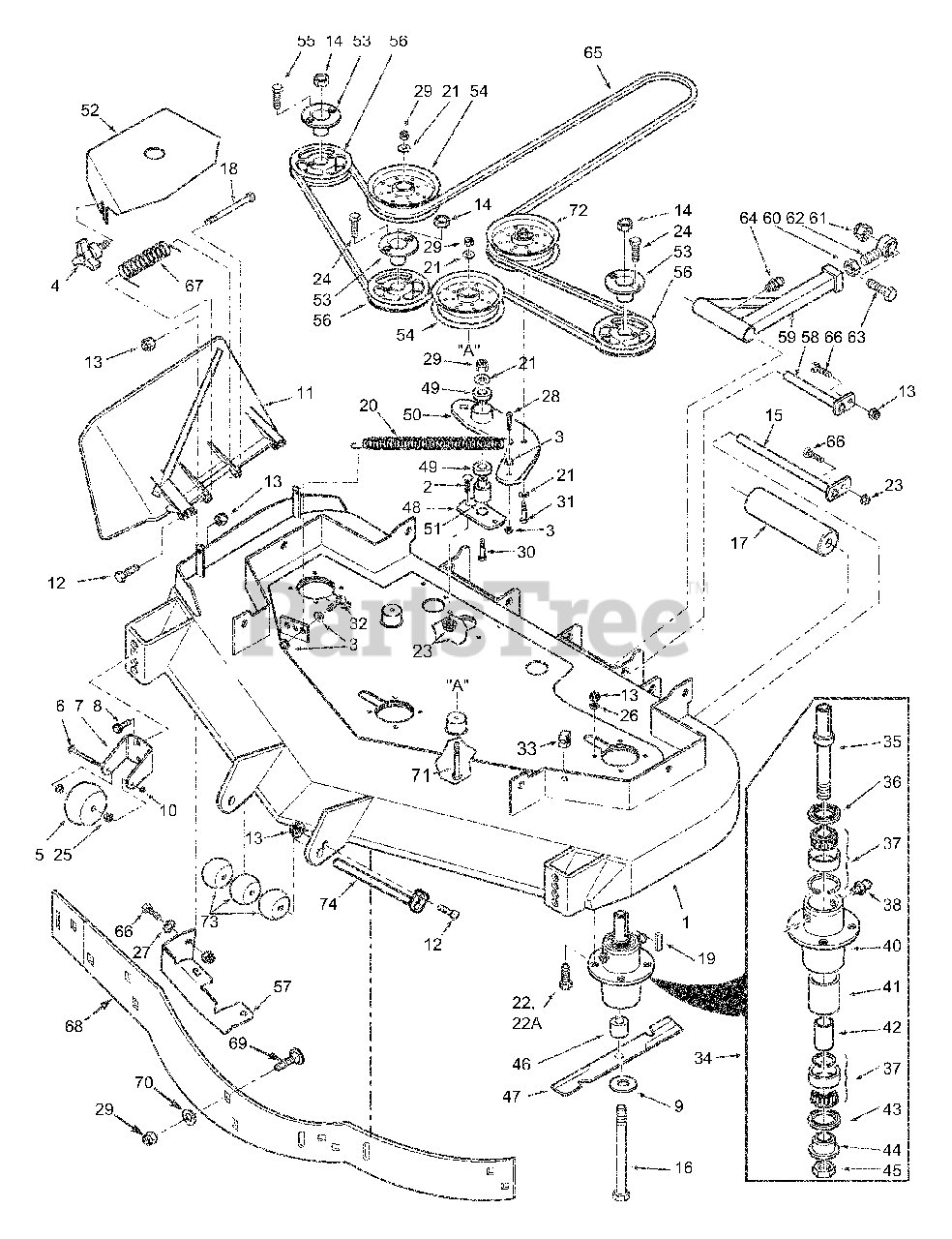

Cutter Deck 61A Parts Diagram

  • Title

1

Scag 461591

Cutter Deck Advantage
(Superseded to 461656K)

$1867.99

$

Usually ships in 2-12 days

0

2

Scag 04003-04

Bolt, Carr. 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

3

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

4

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

5

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

0

6

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

7

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

8

Scag 04017-27

Bolt, Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04043-06

Flatwasher, 5/8" Hardened

$1.99

$

In Stock, Qty 20+

0

10

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

11

Scag 481931

Discharge Chute
(Superseded to 461296)

$70.99

$

In Stock, only 2 left!

0

12

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2", Rear

$0.99

$

In Stock, Qty 6

0

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4", Front

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

15

Scag 45944

Shaft, Roller

$22.99

$

In Stock, Qty 20+

0

16

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

17

Scag 48038

Roller, Rear

$29.99

$

In Stock, only 2 left!

0

18

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

19

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

20

Scag 482718

Spring, Idler

$53.99

$

In Stock, only 2 left!

0

21

Scag 04043-04

Flatwasher, 3/8" - .938 x .391 x .105

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

22A

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-14

Bolt, Hex Head 1/2-20 x 1"

$0.99

$

In Stock, Qty 15

0

25

Scag 48100-15

Bushing, .376 ID Oilite

$4.99

$

In Stock, Qty 20+

0

26

Scag 04030-03

Lockwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-15

Flatwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-136

Bolt, 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

31

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

32

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2 Grade 8

$0.99

$

In Stock, Qty 20+

0

33

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

34

Scag 46631

Spindle Assembly
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

35

Scag 43298

Shaft, Spindle
(Superseded to 43589)

$59.99

$

In Stock, only 1 left!

0

36

Scag 481024

Seal Upper

$4.99

$

In Stock, Qty 20+

0

37

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

38

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

?39

Scag 48677

Valve, Grease Relief

$9.49

$

Usually ships in 2-12 days

0

40

Scag 43294

Housing, Spindle
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

41

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

42

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

43

Scag 481025

Seal, Lower

$4.99

$

In Stock, Qty 20+

0

44

Scag 43297

Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

45

Scag 481035

Nut, Special 1-1/16 - 18

$7.99

$

In Stock, only 3 left!

0

46

Scag 43590

Spacer, Spindle

$17.99

$

In Stock, Qty 20+

0

47

Scag 482464

Cutter Blade 21"
(Superseded to 481708)

$27.99

$

In Stock, Qty 20+

0

48

Scag 422713

Pivot, Idler Base

$14.99

$

In Stock, only 1 left!

0

49

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

50

Scag 461174

Idler Arm Assy.

$97.99

$

In Stock, only 1 left!

0

51

Scag 43575

Idler Pivot, Short

$26.99

$

In Stock, only 2 left!

0

52

Scag 423717

Belt Cover (61A)

$118.99

$

In Stock, only 2 left!

0

53

Scag 48926

Hub, Tapered 1-1/8" Bore

$31.99

$

In Stock, Qty 20+

0

54

Scag 482416

Pulley, Idler 5.0"
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

55

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

56

Scag 48790

Pulley, 5.95 Dia. Tapered Bore
(Superseded to 482648)

$38.99

$

In Stock, Qty 12

0

57

Scag 422601

Turbo Baffle, Bolt On
(Superseded to 423957)

$77.99

$

Usually ships in 2-12 days

0

58

Scag 451240

Push Arm Shaft

$53.99

$

In Stock, Qty 20+

0

59

Scag 461516

Push Arm

Note: (Includes 64,60,62)

$216.99

$

In Stock, only 2 left!

0

60

Scag 04020-16

Nut, 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

61

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

62

Scag 48763

Rod End, 5/8 Male RH Thread

$59.99

$

In Stock, Qty 6

0

63

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 10

0

64

Scag 48114-04

Grease Fitting, 90 Degree

$1.49

$

In Stock, Qty 20+

0

65

Scag 482652

Belt, Cutter Deck Drive (61A)

$136.99

$

In Stock, only 1 left!

0

66

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

67

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 5

0

68

Scag 451509

Baffle Weldment, 61A

$273.99

$

Usually ships in 2-12 days

0

69

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

70

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

71

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

72

Scag 482743

Pulley, Idler 5.0" OD
(Superseded to 483210)

$56.99

$

In Stock, Qty 6

0

73

Scag 482295

Wheel, Anti Scalp

$9.99

$

In Stock, Qty 20+

0

74

Scag 45944

Roller Shaft

$22.99

$

In Stock, Qty 20+

0
