SMTC-48V - Scag Tiger Cub 48" Mower Deck (SN: B5900001 - B5999999) Roll-Over Protection System Parts Diagram

Tiger Cub 48" Mower Deck

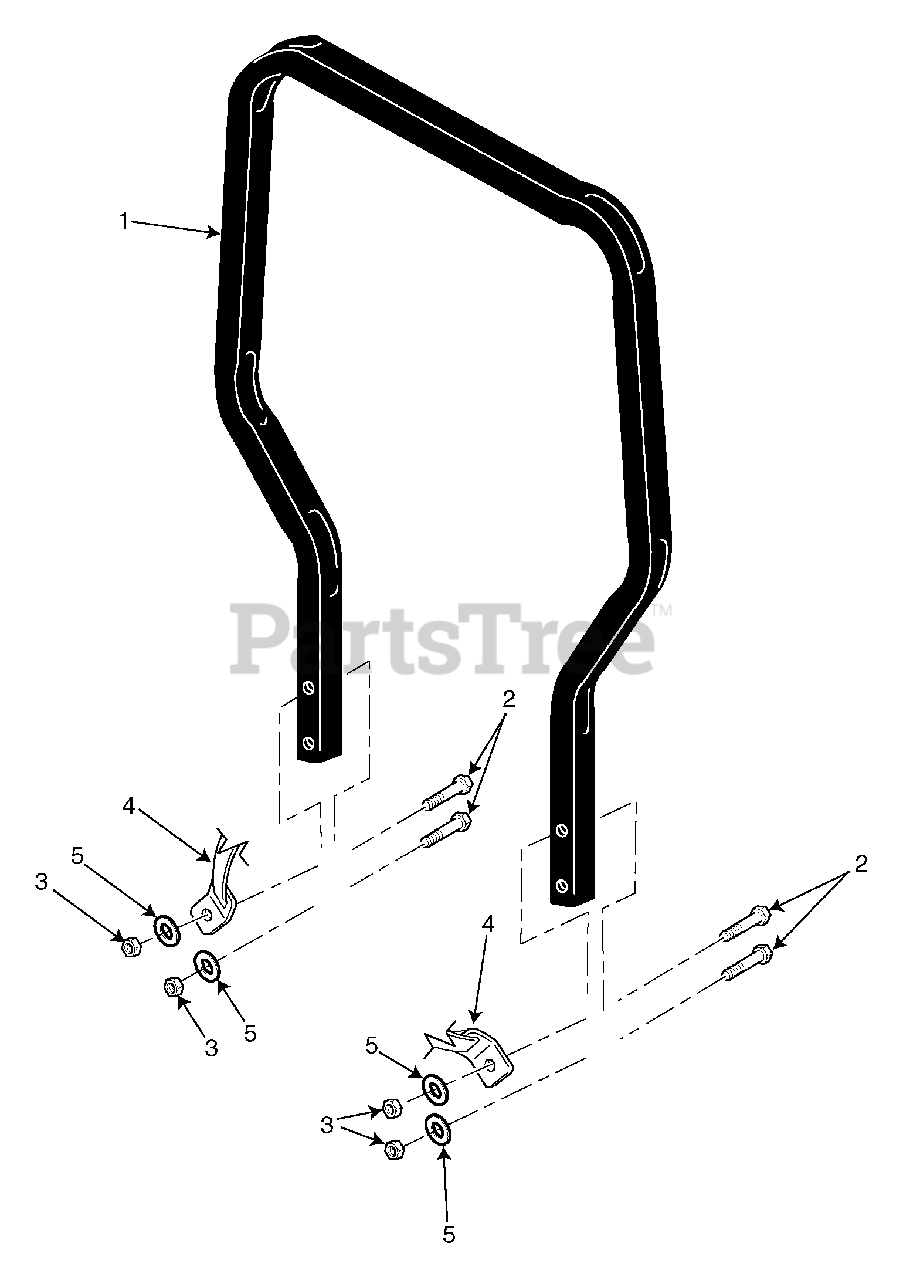

Roll-Over Protection System Parts Diagram

  • Title
1

Scag 461816

STC ROPS
(Superseded to 9506)

$698.99

$

Usually ships in 2-12 days

0

2

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 4 left!

0

3

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 10

0

4

Scag 483150

Seat Belt

$102.99

$

Usually ships in 2-12 days

0

5

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0
