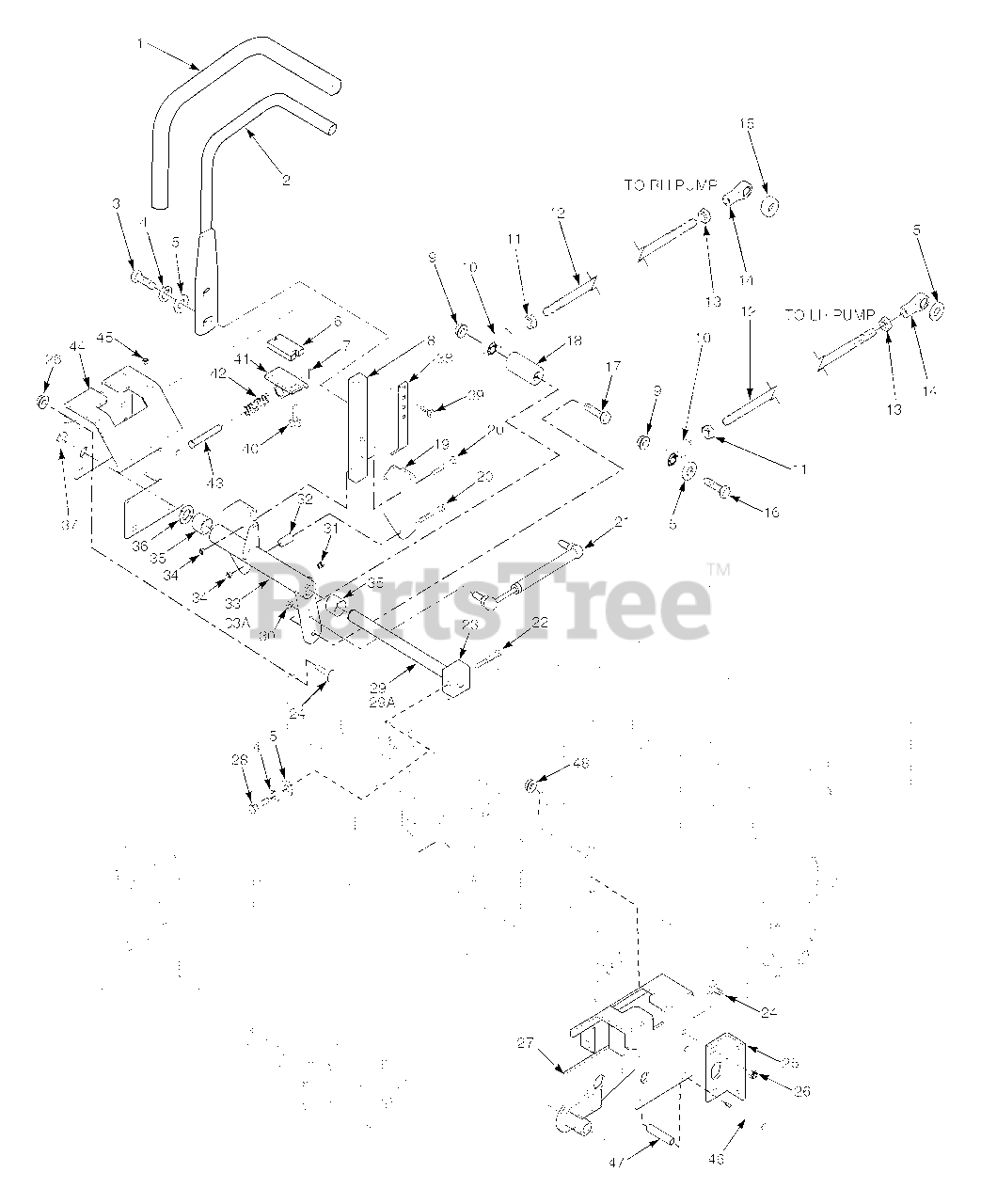

SMTC-48A - Scag Tiger Cub 48" Mower Deck (SN: 6650000 - 6659999) Steering Components Parts Diagram

Tiger Cub 48" Mower Deck

Steering Components Parts Diagram

  • Title

1

Scag 482340

Grip, Control Lever

$7.99

$

Usually ships in 2-12 days

0

2

Scag 461386

Handle Bar

Note: (Includes item 1)

$74.99

$

Usually ships in 2-12 days

0

3

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

4

Scag 04030-04

Lock Washer, 3/8"

$0.99

$

In Stock, Qty 7

0

5

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

6

Scag 423056

Spacer

$

$

Not available

7

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

8

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

9

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 48464

Rod End, 3/8-24 RH Female

$23.99

$

In Stock, only 1 left!

0

11

Scag 04020-25

Nut, 3/8-24 RK Thread

$0.99

$

In Stock, only 2 left!

0

12

Scag 482152

Rod, Pump Control Linkage

$19.99

$

Usually ships in 2-12 days

0

13

Scag 04020-26

Nut, 3/8-24 UNF-2B LH Thread

$1.99

$

In Stock, only 4 left!

0

14

Scag 48544

Rod End, 3/8-24 LH Thread

$26.99

$

Usually ships in 2-12 days

0

15

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

16

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

18

Scag 43269

Spacer

$

$

Not available

19

Scag 423054

Plate, Control Lever

$7.99

$

Usually ships in 2-12 days

0

20

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

21

Scag 461090

Gas Damper

Note: (Includes ball stud and clip)

$131.99

$

Usually ships in 2-12 days

0

Scag 481356

Ball Stud, Gas Spring

Note: (Not Shown)

$4.49

$

Usually ships in 2-12 days

0

Scag 481357

Spring Clip, Gas Spring

Note: (Not Shown)

$1.49

$

Usually ships in 2-12 days

0

22

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 482099

Block Clamping

$31.99

$

Usually ships in 2-12 days

0

24

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 423200

Bracket, Fuel Tank Front

$

$

Not available

26

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Scag 461307

Control Plate Weldment LH w/decal

$

$

Not available

28

Scag 04001-18

Bolt, Hex Head 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

29

Scag 43561

Shaft, Steering Control LH

$19.99

$

Usually ships in 2-12 days

0

29A

Scag 43562

Shaft, Steering Control RH

$18.99

$

Usually ships in 2-12 days

0

30

Scag 04021-04

Lock Nut 5/16-18

$0.99

$

In Stock, Qty 20+

0

31

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

32

Scag 43559

Spacer, Control

$

$

Not available

33

Scag 49313

Control Lever Weldment RH

Note: (Includes 31 & 35)

$

$

Not available

33A

Scag 49312

Control Lever Weldment LH

Note: (Includes 31 & 35)

$

$

Not available

34

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

35

Scag 48100-06

Bushing

$1.49

$

In Stock, only 1 left!

0

36

Scag 04041-08

Flatwasher, 1-1/4 x 49/64 x 16 Ga.

$0.99

$

In Stock, Qty 20+

0

37

Scag 04050-02

Retaining Ring, 3/4" Ext.

$0.99

$

In Stock, Qty 7

0

38

Scag 423057

Bracket, Switch Actuator

$14.99

$

Usually ships in 2-12 days

0

39

Scag 04017-16

Bolt, Hex Serr. Flange 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

40

Scag 04003-06

Bolt, Carr. 1/4-20 x 1"

$0.99

$

In Stock, Qty 6

0

41

Scag 45918

Bracket, Control Return

$44.99

$

In Stock, only 2 left!

0

42

Scag 481389

Spring

$3.49

$

In Stock, only 4 left!

0

43

Scag 43477

Pin Retainer

$18.99

$

In Stock, only 2 left!

0

44

Scag 461308

Control Plate Weldment RH w/Decal

$

$

Not available

45

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

46

Scag 04001-100

Bolt, Hex Head 3/8-16 x 6"

$5.99

$

Usually ships in 2-12 days

0

47

Scag 43556

Spacer

$

$

Not available

48

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0
