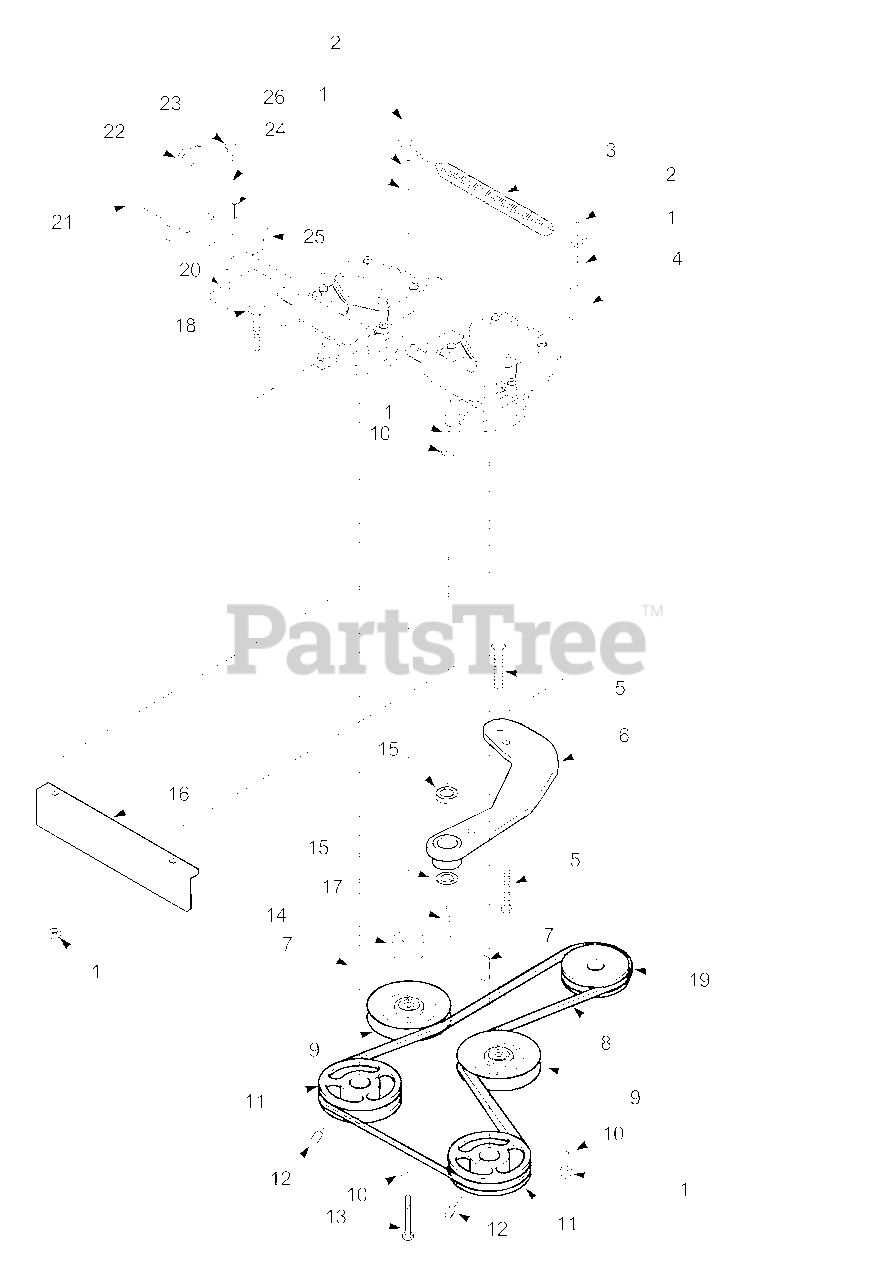

SMTC-48A - Scag Tiger Cub 48" Mower Deck (SN: 6650000 - 6659999) Drive System Components Parts Diagram

Tiger Cub 48" Mower Deck

Drive System Components Parts Diagram

  • Title
1

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 481994

Spring
(Superseded to 482717)

$47.99

$

In Stock, only 1 left!

0

4

Scag 43376

Spacer

$

$

Not available

5

Scag 04001-159

Bolt, Hex Head 3/8-16 x 2-1/4" Grade 8

$2.49

$

In Stock, only 2 left!

0

6

Scag 461305

Idler Arm, Pump Drive

$71.99

$

In Stock, only 1 left!

0

7

Scag 04063-14

Key, 5 x 5 x 25mm

$0.99

$

In Stock, Qty 5

0

8

Scag 482009

Belt, Transmission

$27.99

$

In Stock, only 1 left!

0

9

Scag 481048

Pulley
(Superseded to 483208)

$33.99

$

In Stock, Qty 20+

0

10

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

11

Scag 482096

Pulley, 4.45 Dia.

$73.99

$

Usually ships in 2-12 days

0

12

Scag 04012-04

Set Screw, 5/16-18 x .375

$0.99

$

In Stock, Qty 14

0

13

Scag 04001-140

Bolt, 3/8-16 x 3-1/4" Grade 8

$1.99

$

In Stock, only 1 left!

0

14

Scag 43286

Spacer, Idler

$2.49

$

In Stock, only 2 left!

0

15

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

16

Scag 423185

Belt Guard

$

$

Not available

17

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04003-11

Bolt, Carr. 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

19

Scag 482097

Pulley, 4.45 Dia. - 1" Bore

$139.99

$

Usually ships in 2-12 days

0

20

Scag 421203

Clamp Plate

$18.99

$

Usually ships in 2-12 days

0

21

Scag 04017-05

Hex Head Capscrew, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 423055

Control Lever, Pump

$

$

Not available

23

Scag 04001-59

Hex Head Capscrew, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

24

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 48829

Block, Pump Control

$21.99

$

In Stock, only 1 left!

0

26

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0
