SMTC-40 - Scag Tiger Cub 40" Mower Deck (SN: 6640000 - 6649999) Sheet Metal Components Parts Diagram

Tiger Cub 40" Mower Deck

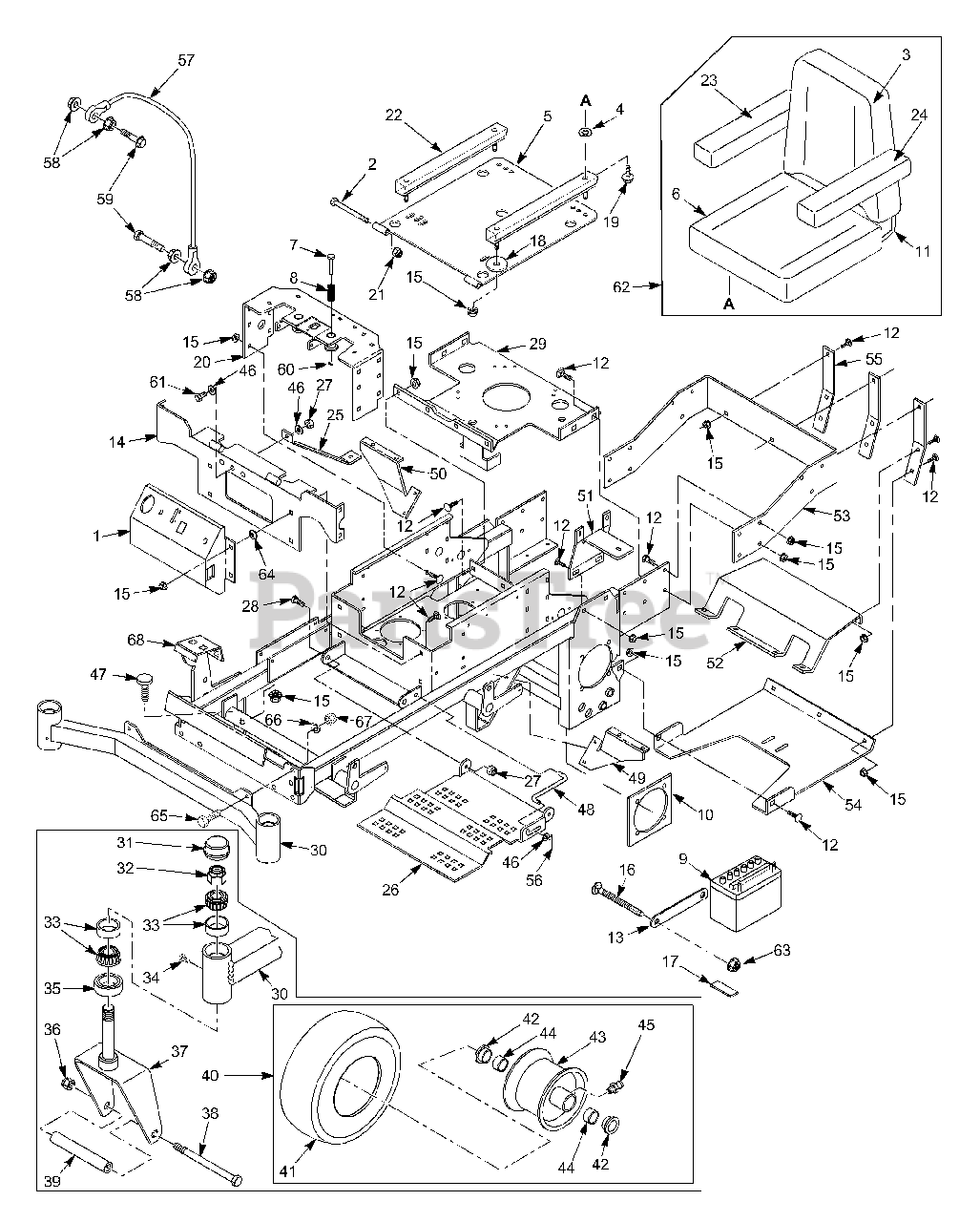

Sheet Metal Components Parts Diagram

  • Title

1

Scag 423218

Panel, Instrument

$

$

Not available

2

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

3

Scag 482105

Cushion, Back
(Superseded to 484716)

$191.99

$

Usually ships in 2-12 days

0

4

Scag 04041-11

Flatwasher, 3/8-.406 x 1.5 x .179

$1.99

$

In Stock, Qty 5

0

5

Scag 451220

Plate, Seat Mounting

$101.99

$

Usually ships in 2-12 days

0

6

Scag 482111

Cushion, Lower Seat

$270.99

$

Usually ships in 2-12 days

0

7

Scag 43462

Pin Retainer, Spring

$28.99

$

In Stock, only 1 left!

0

8

Scag 481389

Spring

$3.99

$

In Stock, only 4 left!

0

9

Scag 48015

Battery

$

$

Not available

10

Scag 451290

Plate, Wheel Motor Mounting
(Superseded to 423279)

$26.99

$

Usually ships in 2-12 days

0

11

Scag 482190

Pan, Seat Mounting
(Superseded to 482633)

$249.99

$

Usually ships in 2-12 days

0

12

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 423058

Plate, Battery Mounting

$56.99

$

Usually ships in 2-12 days

0

14

Scag 451273

Weldment, Seat Plate Mounting

$137.99

$

Usually ships in 2-12 days

0

15

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 04003-01

Bolt, Carr. 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

17

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

18

Scag 04041-11

3/8 Flatwasher, 1-1/2" x 7 ga.

$1.99

$

In Stock, Qty 5

0

19

Scag 04003-04

Bolt, Carr. 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

20

Scag 451221

Weldment, Seat Brace

$

$

Not available

21

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

22

Scag 46570

Seat Track Assy

$212.99

$

Usually ships in 2-12 days

0

23

Scag 482108

Arm Pad, RH

$49.99

$

In Stock, only 1 left!

0

Scag 482110

Bracket, Armrest RH
(Superseded to 483548)

$132.99

$

In Stock, only 1 left!

0

24

Scag 482107

Arm Pad, LH

$49.99

$

In Stock, only 1 left!

0

Scag 482109

Bracket, Armrest LH
(Superseded to 483547)

$114.99

$

Usually ships in 2-12 days

0

25

Scag 423060

Brace, Seat Plate

$26.99

$

Usually ships in 2-12 days

0

26

Scag 423211

Footplate

$

$

Not available

27

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

29

Scag 451262

Plate, Engine Mounting

$272.99

$

Usually ships in 2-12 days

0

30

Scag 451276

Weldment, Caster Support

Note: (STC-40)

$

$

Not available

Scag 451278

Weldment, Caster Support

Note: (STC-48A & 52A)

$961.99

$

Usually ships in 2-12 days

0

31

Scag 481559

Cap, Grease

$6.99

$

In Stock, Qty 20+

0

32

Scag 04021-20

Nut, Elastic Stop 1.0-14

$4.99

$

In Stock, Qty 20+

0

33

Scag 481657

Bearing Set
(Superseded to 48668)

$24.99

$

In Stock, Qty 20+

0

34

Scag 482028-01

Plug, 1/4-28

$6.49

$

In Stock, only 3 left!

0

35

Scag 481025

Seal, 2.0" OD x 1.625" ID

$4.99

$

In Stock, Qty 20+

0

36

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

37

Scag 45934

Yoke, Front Caster Wheel

$156.99

$

In Stock, only 2 left!

0

38

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2"

$5.49

$

In Stock, Qty 20+

0

39

Scag 43430

Sleeve

$16.99

$

In Stock, Qty 6

0

40

Scag 48551

Caster Wheel Assembly

Note: (Incl. 41 thru 45)

$1217.99

$

Usually ships in 2-12 days

0

41

Scag 481613

Tire, 13 x 5.0-6 Smooth

$123.99

$

In Stock, only 1 left!

0

42

Scag 481770

Bushing

$4.99

$

In Stock, Qty 20+

0

43

Scag 481612

Rim

Note: (Includes Item 45)

$225.99

$

Usually ships in 2-12 days

0

44

Scag 481846

Bearing

$19.99

$

In Stock, only 2 left!

0

45

Scag 48114-06

Fitting, Grease

$3.99

$

Usually ships in 2-12 days

0

46

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x.105

$0.99

$

In Stock, Qty 20+

0

47

Scag 481284

Stud, Rubber Stop

$16.99

$

In Stock, only 3 left!

0

48

Scag 44136

Rod, Footplate Prop

$8.99

$

Usually ships in 2-12 days

0

49

Scag 423202

Bracket, Lower LH Fuel Tank

$28.99

$

Usually ships in 2-12 days

0

50

Scag 423200

Bracket, Fuel Tank Front

$14.99

$

Usually ships in 2-12 days

0

51

Scag 423201

Bracket, Fuel Tank Rear
(Superseded to 423764)

$34.99

$

Usually ships in 2-12 days

0

52

Scag 423186

Heatshield

$87.99

$

Usually ships in 2-12 days

0

53

Scag 423212

Bumper, Rear

$123.99

$

Usually ships in 2-12 days

0

54

Scag 423179

Plate, Skid

$89.99

$

Usually ships in 2-12 days

0

55

Scag 423229

Bracket, Support

$

$

Not available

56

Scag 04062-02

Hair Pin Cotter, .080 x 1.19

$0.99

$

In Stock, Qty 20+

0

57

Scag 48566

Cable, Seat Stop

$17.99

$

In Stock, only 1 left!

0

58

Scag 04019-02

Nut, Serr. Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

59

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

60

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

61

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

62

Scag 482119

Seat Assembly w/Adjuster Rails

$692.99

$

Usually ships in 2-12 days

0

Scag 482027

Seat Assembly without Adjuster Rails

$651.99

$

Usually ships in 2-12 days

0

63

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

64

Scag 04024-03

Push Nut, 5/16

$1.49

$

In Stock, Qty 16

0

65

Scag 04001-28

Bolt, Hex Head 7/16-14 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

66

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 8

0

67

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

68

Scag 461306

Main Frame Assembly w/decals

$2983.99

$

Usually ships in 2-12 days

0
