SMTC-40 - Scag Tiger Cub 40" Mower Deck (SN: 6640000 - 6649999) 40" Cutter Deck Parts Diagram

Tiger Cub 40" Mower Deck

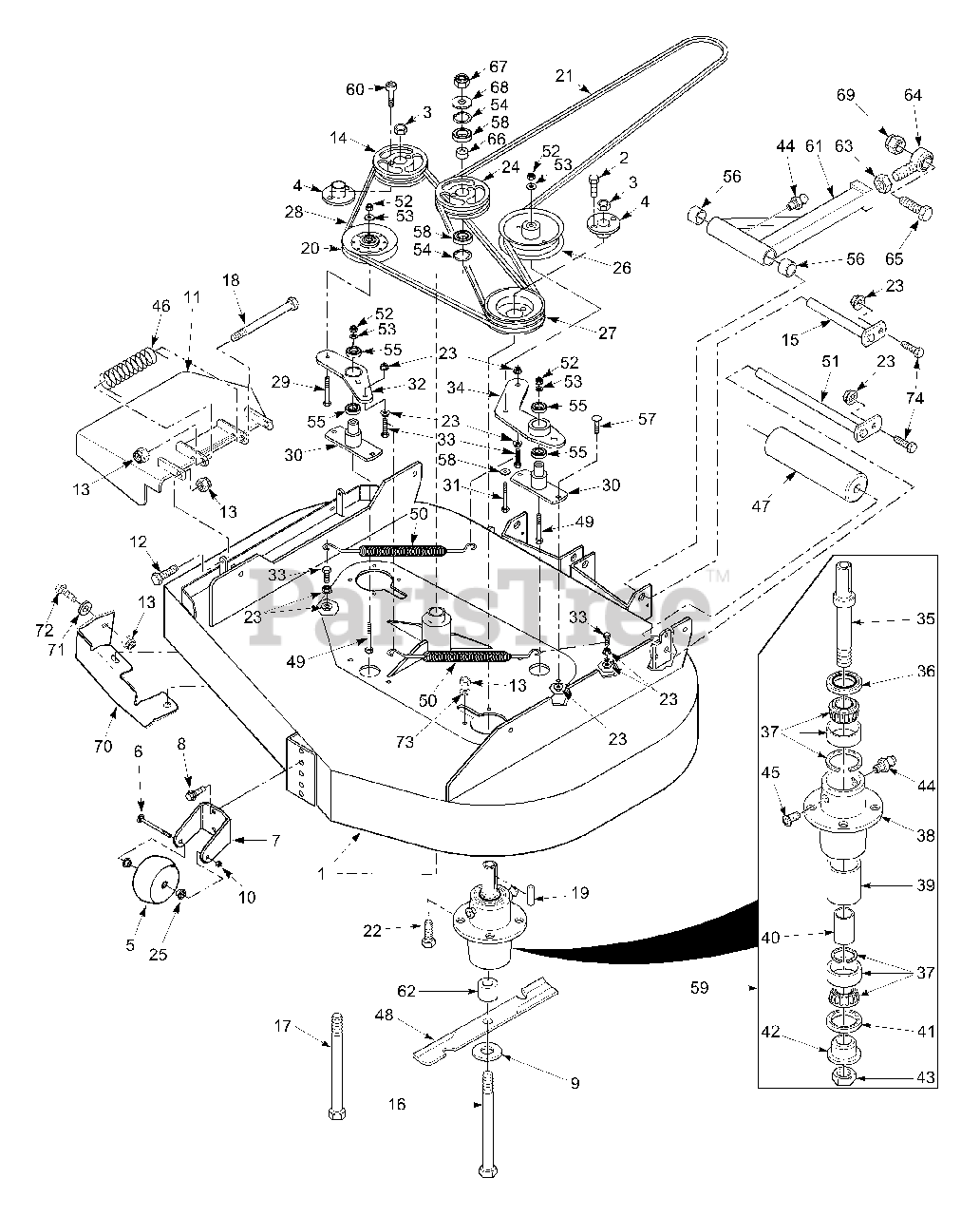

40" Cutter Deck Parts Diagram

  • Title

1

Scag 461309

Cutter Deck
(Superseded to 461364)

Note: (Includes decals)

$1742.99

$

Usually ships in 2-12 days

0

2

Scag 04001-01

Bolt, Hex Head 1/2-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

3

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

4

Scag 48926

Hub, Tapered 1-1/8" Bore

$31.99

$

In Stock, Qty 20+

0

5

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

0

6

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

7

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

8

Scag 04017-27

Bolt, Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04040-10

Flatwasher 5/8"

$0.99

$

In Stock, Qty 11

0

10

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

11

Scag 461291

Discharge Chute

$97.99

$

Usually ships in 2-12 days

0

12

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

13

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 48924

Pulley, Tapered Bore 5-3/4"
(Superseded to 482744)

$30.99

$

In Stock, only 1 left!

0

15

Scag 451240

Push Arm Shaft

$53.99

$

In Stock, Qty 20+

0

16

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

17

Scag 04001-155

Bolt, Hex Head 1/2-13 x 5"

$4.99

$

In Stock, only 2 left!

0

18

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

19

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

20

Scag 482217

Pulley, Idler
(Superseded to 48181)

$26.99

$

In Stock, Qty 14

0

21

Scag 482090

Belt, Cutter Deck Drive

$113.99

$

In Stock, only 1 left!

0

22

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

23

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 48062

Pulley, Idler - 5.75 Dia.

$87.99

$

Usually ships in 2-12 days

0

25

Scag 48100-15

Bushing, .376 ID Oilite

$4.99

$

In Stock, Qty 20+

0

26

Scag 481962

Pulley, Idler 5"
(Superseded to 483210)

$56.99

$

In Stock, Qty 6

0

27

Scag 48923

Pulley, Double Groove 5-3/4"

$113.99

$

In Stock, only 1 left!

0

28

Scag 482091

Belt, RH Cutter Deck

$

$

Not available

29

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 9

0

30

Scag 422713

Pivot, Idler Base

$14.99

$

In Stock, only 1 left!

0

31

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 15

0

32

Scag 461175

Idler Arm

$103.99

$

In Stock, only 1 left!

0

33

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

34

Scag 461314

Idler Arm

$71.99

$

Usually ships in 2-12 days

0

35

Scag 43298

Shaft, Spindle
(Superseded to 43589)

$59.99

$

In Stock, only 1 left!

0

36

Scag 481024

Seal Upper

$4.99

$

In Stock, Qty 20+

0

37

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

38

Scag 43294

Housing, Spindle
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

39

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

40

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

41

Scag 481025

Seal, Lower

$4.99

$

In Stock, Qty 20+

0

42

Scag 43297

Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

43

Scag 481035

Nut, Special 1-1/16-18

$7.99

$

In Stock, only 3 left!

0

44

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

45

Scag 48677

Valve, Grease Relief

$9.49

$

Usually ships in 2-12 days

0

46

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 5

0

47

Scag 48038

Roller Rear

$29.99

$

In Stock, only 2 left!

0

48

Scag 482129

Cutter Blade 20"

$46.99

$

Usually ships in 2-12 days

0

49

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

50

Scag 481597

Spring, Idler
(Superseded to 483704)

$29.99

$

In Stock, Qty 20+

0

51

Scag 45944

Shaft, Roller

$22.99

$

In Stock, Qty 20+

0

52

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

53

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

54

Scag 04050-06

Ret. Ring, 1.575 Internal

$2.99

$

Usually ships in 2-12 days

0

55

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

56

Scag 48100-06

Bearing, Bronze Oilite

$1.49

$

In Stock, only 1 left!

0

57

Scag 04003-04

Bolt, Carr. 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

58

Scag 48102

Bearing, Idler Pulley

$11.99

$

Usually ships in 2-12 days

0

59

Scag 46631

Spindle Assembly
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

60

Scag 04015-14

Socket Head Capscrew 1/4-20 x 1-3/8"

$2.99

$

Usually ships in 2-12 days

0

61

Scag 461036

Push Arm
(Superseded to 461516)

Note: (Includes 56, 44, 63, 64)

$216.99

$

In Stock, only 2 left!

0

62

Scag 43309

Spacer, Spindle
(Superseded to 43590)

$17.99

$

In Stock, Qty 20+

0

63

Scag 04020-16

Nut, 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

64

Scag 48763

Rod End, 5/8 Male RH Thread

$59.99

$

In Stock, Qty 6

0

65

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 10

0

66

Scag 43045

Sleeve, Idler Pulley

$10.99

$

Usually ships in 2-12 days

0

67

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

68

Scag 04043-05

Flatwasher, 1/2 SAE Hardened

$1.49

$

Usually ships in 2-12 days

0

69

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

70

Scag 423093

Turbo Baffle, Bolt On

$118.99

$

Usually ships in 2-12 days

0

71

Scag 04040-15

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

72

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

73

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

74

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+
