SMT-72VS (STT-31EFI) - Scag Turf Tiger 72" Mower Deck (SN: E3400001 - E3499999) 61V & 72VS Cutter Decks Parts Diagram

Turf Tiger 72" Mower Deck

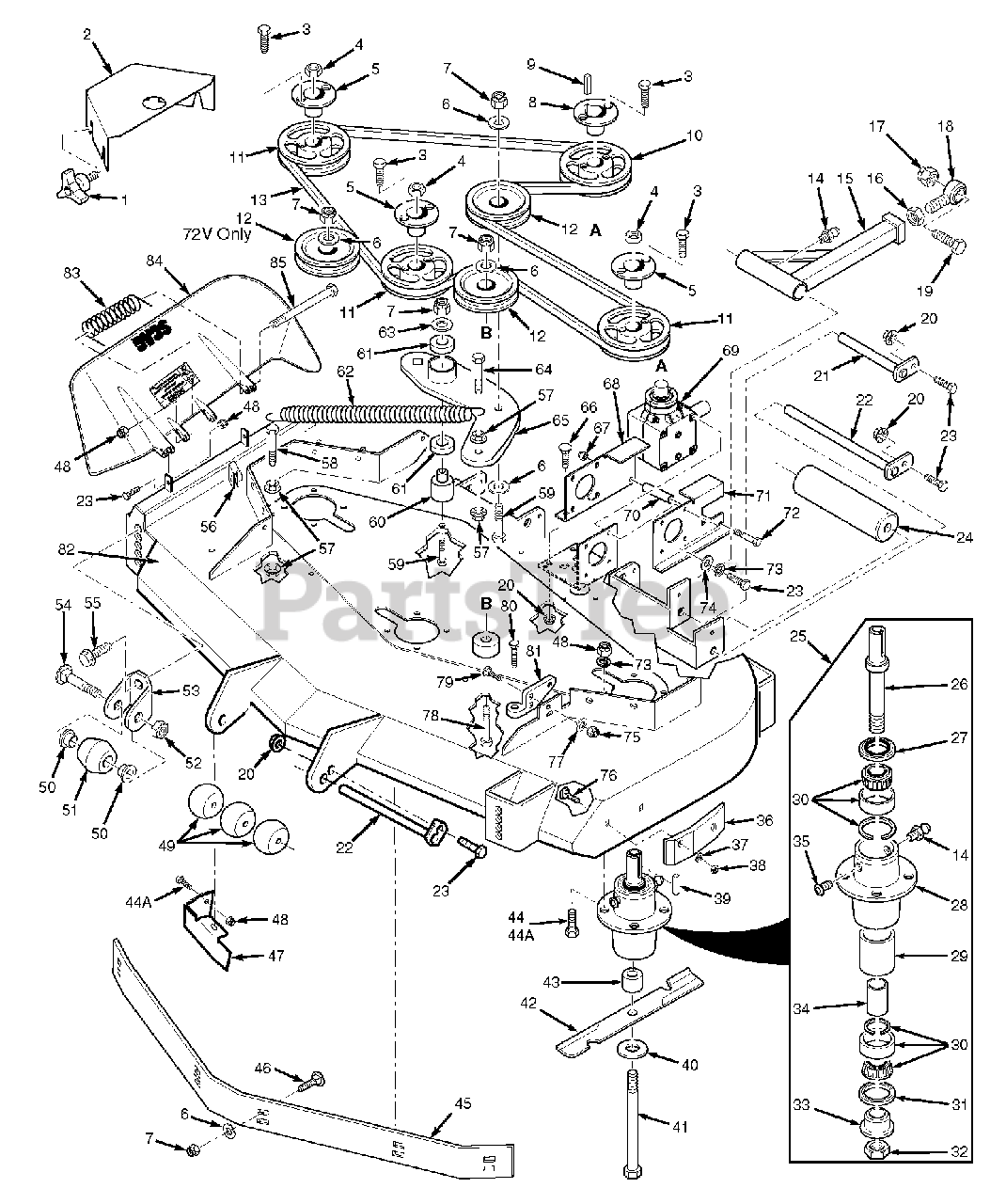

61V & 72VS Cutter Decks Parts Diagram

  • Title

1

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

2

Scag 424325

Belt Cover

$50.99

$

In Stock, only 2 left!

0

2

Scag 422708

Belt Cover RH

$59.99

$

In Stock, only 1 left!

0

2

Scag 422677

Belt Cover LH

$54.99

$

In Stock, only 1 left!

0

3

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

Note: Grd 8

$0.99

$

In Stock, Qty 20+

0

4

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

5

Scag 48926

Tapered Hub, 1-1/8" Bore

$31.99

$

In Stock, Qty 20+

0

6

Scag 04041-07

Flatwasher, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

7

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 48141

Tapered Hub, 1" Bore

$30.99

$

In Stock, only 1 left!

0

9

Scag 04063-0

Key, 1/4 x 1/4 x 1-1/4"

$

$

Currently unavailable

10

Scag 482746

Pulley, 6.75 O.D.

$34.99

$

In Stock, only 1 left!

0

10

Scag 482745

Pulley, 6.35 O.D.

$31.99

$

In Stock, Qty 9

0

11

Scag 482745

Pulley, 6.35 O.D.

$31.99

$

In Stock, Qty 9

0

11

Scag 482747

Pulley, 6.95 O.D.

$36.99

$

In Stock, only 1 left!

0

12

Scag 483215

Pulley, Idler

$62.99

$

In Stock, Qty 20+

0

13

Scag 481558

Belt, Cutter Deck Drive

$98.99

$

In Stock, Qty 12

0

13

Scag 481980

Belt, Cutter Deck Drive

$111.99

$

In Stock, only 4 left!

0

14

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

15

Scag 461516

Pusharm

Note: (incl. items 14, 16, & 18)

$216.99

$

In Stock, only 2 left!

0

16

Scag 04020-16

Nut, Hex Head 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

17

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

18

Scag 48763

Rod End, 5/8" Male RH Thread

$59.99

$

In Stock, Qty 6

0

19

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 10

0

20

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

21

Scag 451240

Push Arm Shaft

$53.99

$

In Stock, Qty 20+

0

22

Scag 45944

Roller Shaft

$22.99

$

In Stock, Qty 20+

0

23

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 48038

Wheel, Anti-Scalp

$29.99

$

In Stock, only 2 left!

0

25

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 20+

0

26

Scag 43589

Spindle Shaft

$59.99

$

In Stock, only 1 left!

0

27

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 20+

0

28

Scag 43644

Spindle Housing

$60.99

$

In Stock, only 2 left!

0

29

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

30

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

31

Scag 481025

Seal, Bottom

$4.99

$

In Stock, Qty 20+

0

32

Scag 481035

Nut, Special 1-1/16-18

$7.99

$

In Stock, only 3 left!

0

33

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

34

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

35

Scag 48677

Relief Fitting, Tapered Spindle

$9.49

$

Usually ships in 2-12 days

0

36

Scag 483176

Wear Pad

$34.99

$

In Stock, Qty 20+

0

36

Scag 483174

Wear Pad

$34.99

$

In Stock, only 2 left!

0

37

Scag 04040-04

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

39

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

40

Scag 04043-06

Flatwasher, 5/8" Hardened

$1.99

$

In Stock, Qty 20+

0

41

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

42

Scag 482879

Cutter Blade, 21"

$26.99

$

In Stock, Qty 20+

0

42

Scag 482882

Cutter Blade, 24.5"

$34.99

$

In Stock, Qty 20+

0

42

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

43

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

45

Scag 424841

Baffle, Custom Cut 61V

$122.99

$

Usually ships in 2-12 days

0

45

Scag 424917

Baffle, Custom Cut 72V

$136.99

$

Usually ships in 2-12 days

0

46

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

47

Scag 424209

Discharge Baffle 61V

$72.99

$

In Stock, only 1 left!

0

47

Scag 424856

Discharge Baffle 72V

$56.99

$

Usually ships in 2-12 days

0

48

Scag 04021-22

Nut, Hex Elastic Stop 5/16-18 Grd 8

$0.99

$

In Stock, Qty 20+

0

49

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

50

Scag 48100-15

Bushing, .376 I.D. Oilite

$4.99

$

In Stock, Qty 20+

0

51

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

0

52

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

53

Scag 422478

Anti-Scalp Wheel Bracket

$28.99

$

In Stock, Qty 20+

0

54

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

55

Scag 04017-27

Bolt, Hex Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

56

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

57

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

58

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

59

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

60

Scag 43503

Pivot, Idler - Short

$27.99

$

In Stock, Qty 19

0

61

Scag 48224

Bearings, Ball

$13.99

$

In Stock, Qty 20+

0

62

Scag 483704

Spring, Cutter Deck

$29.99

$

In Stock, Qty 20+

0

63

Scag 04043-04

Flatwasher,3/8-.39 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

64

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grd 8

$0.99

$

In Stock, Qty 20+

0

65

Scag 461842

Idler Arm, Cutter Deck

$86.99

$

In Stock, only 1 left!

0

66

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

67

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

68

Scag 424798

Mounting Plate, RH Gearbox
(Superseded to 428027)

$24.99

$

Usually ships in 2-12 days

0

69

Scag 482486

Gearbox Assembly, Deck Drive

$704.99

$

In Stock, only 1 left!

0

70

Scag 43763

Spacer, Gearbox Mount

$14.99

$

In Stock, only 3 left!

0

71

Scag 424799

Mounting Plate, LH Gearbox
(Superseded to 428026)

$25.99

$

In Stock, only 1 left!

0

72

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

73

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

74

Scag 04040-15

Flatwasher, 5/16" (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

75

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

76

Scag 04003-12

Bolt, Carraige 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

77

Scag 04040-11

Flatwasher, 7/16-.500 x 1.25 x .083

$0.99

$

In Stock, Qty 13

0

78

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 15

0

79

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 6

0

80

Scag 483167

Bolt, Deck Adjust

$17.99

$

Usually ships in 2-12 days

0

81

Scag 461929

Lever Assy, Deck Level

Note: (Incl. 80)

$62.99

$

Usually ships in 2-12 days

0

82

Scag 461863

Cutter Deck 61 V w/Decals
(Superseded to 462410)

$1953.99

$

Usually ships in 2-12 days

0

82

Scag 462144

Cutter Deck 72 V w/Decals

$1964.99

$

Usually ships in 2-12 days

0

83

Scag 483378

Spring, Discharge Chute

$7.99

$

In Stock, only 4 left!

0

84

Scag 461846

Discharge Chute 61V

$68.99

$

In Stock, only 1 left!

0

84

Scag 462132

Discharge Chute 72V

$82.99

$

In Stock, Qty 6

0

85

Scag 04001-108

Bolt, Hex Head 5/16-18 x 4-1/2"

$2.49

$

In Stock, Qty 9

0
