SMT-72V - Scag Turf Tiger 72" Mower Deck (SN: J1200001 - J1299999) Radiator & Attaching Parts - Cat Diesel Parts Diagram

Turf Tiger 72" Mower Deck

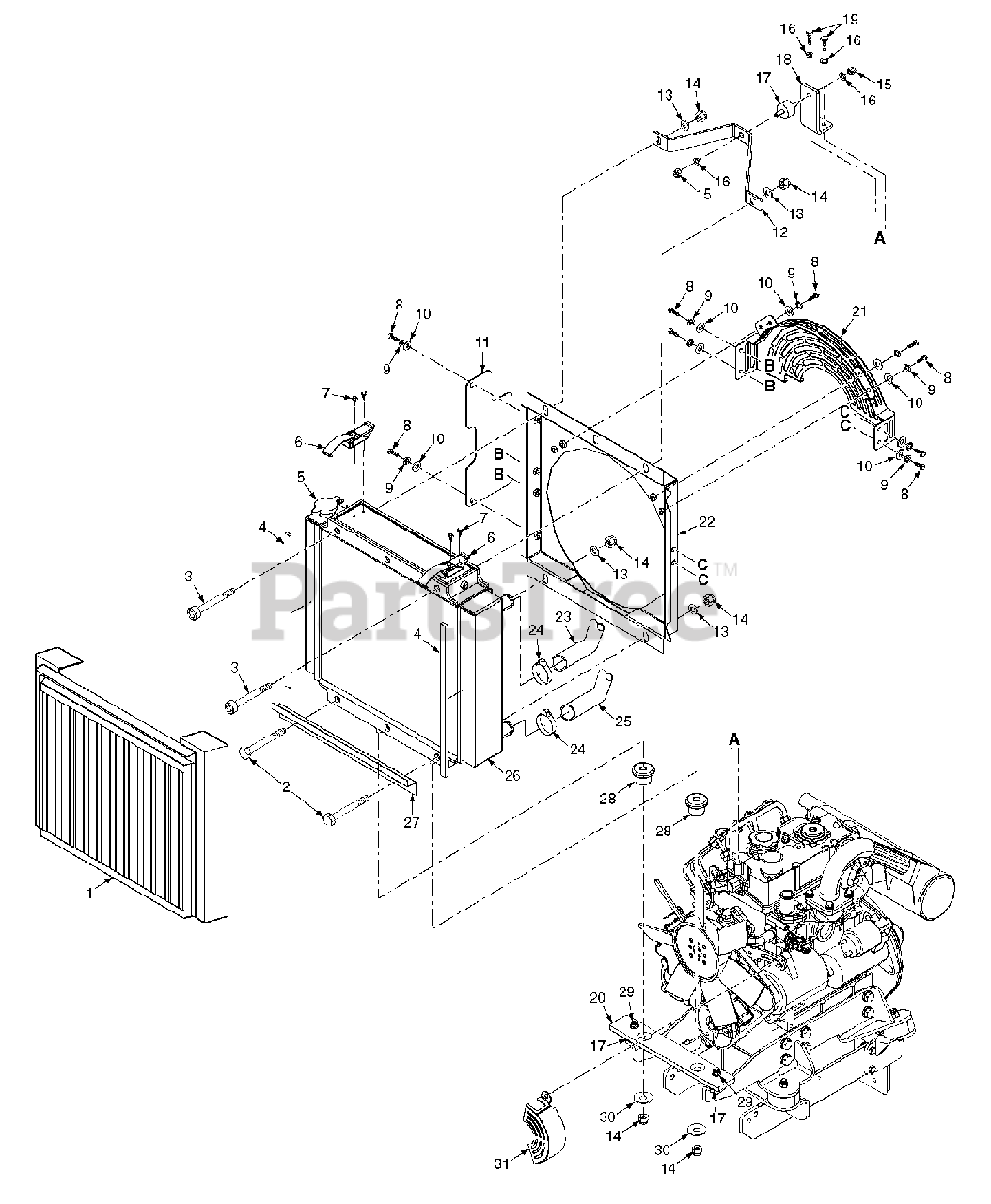

Radiator & Attaching Parts - Cat Diesel Parts Diagram

  • Title

1

Scag 452288

Debris Screen Weldment

$148.99

$

Usually ships in 2-12 days

0

2

Scag 04001-23

Bolt, Hex Head 3/8-16 x 4-1/2"

$2.49

$

In Stock, Qty 7

0

3

Scag 04015-19

Bolt, Socket Head 3/8-16 x 4-1/2"

$

$

Not available

4

Scag 483745

Foam, Seal, 1/2" x 1/4" x 14-1/2"

$2.99

$

Usually ships in 2-12 days

0

5

Radiator Cap

Note: Available through the individual engine manufacturer.

$

$

Not available

6

Scag 481309

Latch, Hood

$7.99

$

Usually ships in 2-12 days

0

7

Scag 04011-11

Screw, #10-32 x .56

$0.99

$

In Stock, Qty 8

0

8

Scag 04001-06

Bolt, Hex Head 1/4-20 x .63"

$0.99

$

In Stock, only 3 left!

0

9

Scag 04030-02

Lockwasher, 1/4" Spring

$0.99

$

In Stock, Qty 20+

0

10

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065)

$0.99

$

In Stock, only 4 left!

0

11

Scag 424944

Heatshield

$18.99

$

Usually ships in 2-12 days

0

12

Scag 425929

Bracket, Radiator Support

$148.99

$

Usually ships in 2-12 days

0

13

Scag 04041-07

Flatwasher, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 04020-03

Nut, 5/16-18

$0.99

$

In Stock, only 1 left!

0

16

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

17

Scag 483756

Mount, Radiator Isolation

$30.99

$

In Stock, only 1 left!

0

18

Scag 424947

Bracket, Radiator Mount to Engine
(Superseded to 462491)

$81.99

$

Usually ships in 2-12 days

0

19

Scag 04002-03

Bolt, Hex Head M8 x 1.25 x 25

$0.99

$

In Stock, only 1 left!

0

20

Scag 424924

Mount, Radiator

$28.99

$

Usually ships in 2-12 days

0

21

Scag 452042

Guard, Fan

$400.99

$

Usually ships in 2-12 days

0

22

Scag 452008

Shroud Weldment, Radiator

$400.99

$

Usually ships in 2-12 days

0

23

Scag 483764

Hose, Upper Radiator

$24.99

$

Usually ships in 2-12 days

0

24

Scag 48136-14

Clamp, Hose, 1-3/4"

$8.49

$

Usually ships in 2-12 days

0

25

Scag 483765

Hose, Lower Radiator

$75.99

$

Usually ships in 2-12 days

0

26

Scag 483750

Radiator

$

$

Not available

27

Scag 424933

Support, Debris Screen

$59.99

$

Usually ships in 2-12 days

0

28

Scag 483755

Mount, Radiator Isolation

$91.99

$

In Stock, only 2 left!

0

29

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

30

Scag 04041-11

Flatwasher, 3/8" (.406 x 1.50 x 7 ga)

$1.99

$

In Stock, only 4 left!

0

31

Scag 452001

Guard, Belt

$88.99

$

Usually ships in 2-12 days

0

31

Scag 483767

Alternator Belt

Note: (not shown)

$56.99

$

Usually ships in 2-12 days

0

31

Scag 483809

Alternator

Note: (not shown)

$1863.99

$

Usually ships in 2-12 days

0
