SMT-72V - Scag Turf Tiger 72" Mower Deck (SN: J1200001 - J1299999) Fuel And Hydraulic System - Cat Diesel Parts Diagram

Turf Tiger 72" Mower Deck

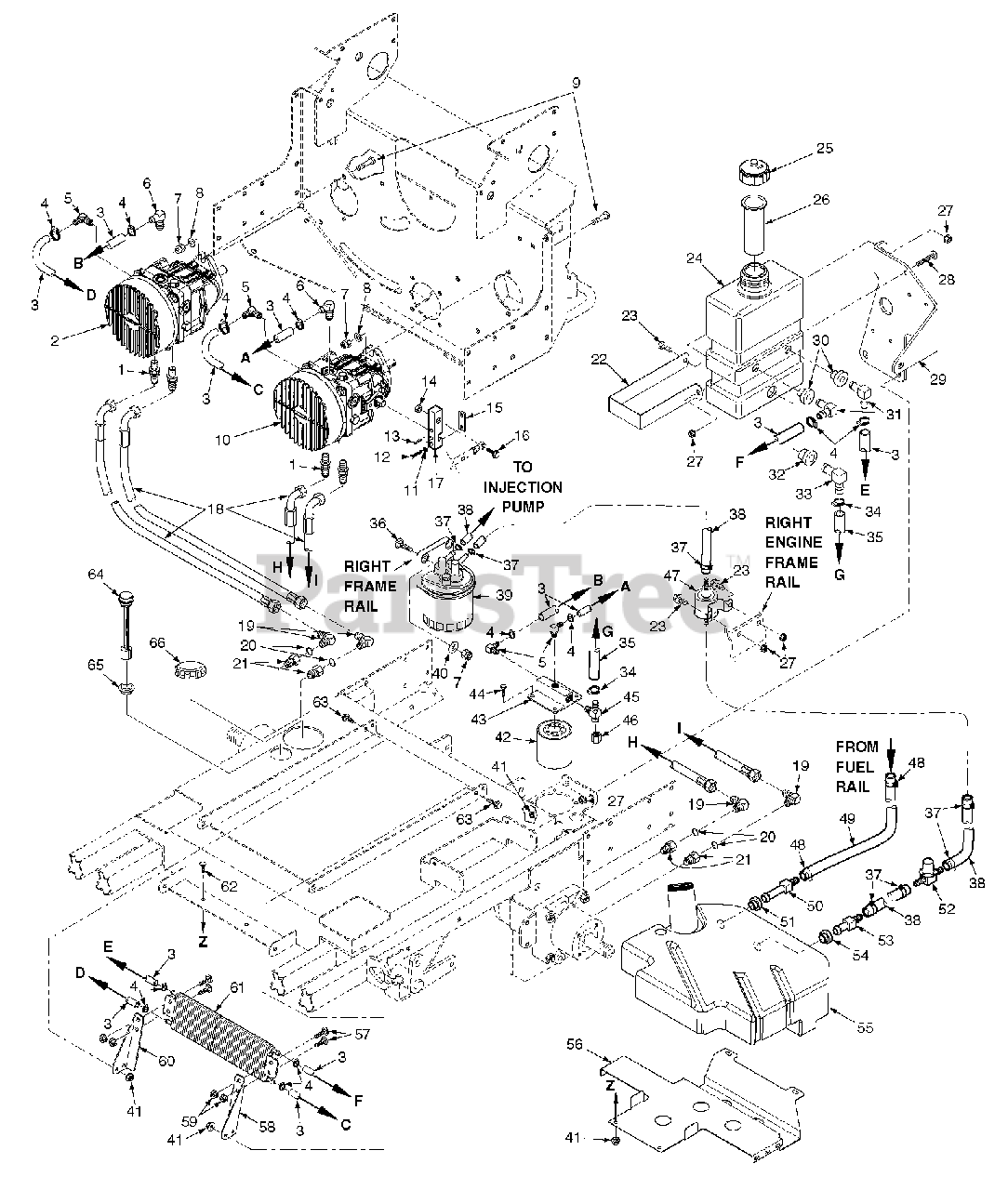

Fuel And Hydraulic System - Cat Diesel Parts Diagram

  • Title

1

Scag 48572-06

Union, 3/4"-16 JIC x O-Ring

$11.99

$

Usually ships in 2-12 days

0

2

Scag 483100

Pump, Right Hand, BDP 16A

$1005.99

$

In Stock, only 1 left!

0

3

Scag 48811

Hose, 3/8" ID Pushlock

Note: Order by the inch.

$0.99

$

In Stock, Qty 20+

0

4

Scag 48136-13

Hose Clamp, 0.69 dia.

$7.49

$

In Stock, Qty 20+

0

5

Scag 482266-01

Elbow, 90 Deg - 9/16 O-Ring x 3/8" Hose

$32.99

$

Usually ships in 2-12 days

0

6

Scag 482266-02

Elbow, 90 Deg - 3/4 O-Ring x 3/8" Hose

$29.99

$

In Stock, only 1 left!

0

7

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04043-04

Flatwasher, 3/8" (.391 x .938 x .105)

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1.5"

$0.99

$

In Stock, Qty 20+

0

10

Scag 483101

Pump, Left Hand, BDP-16A

$1005.99

$

Usually ships in 2-12 days

0

11

Scag 04030-02

Lockwasher, 1/4" Spring

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 14

0

13

Scag 04060-09

Roll Pin, Spring 3/16 x 3/4"

$1.49

$

In Stock, only 3 left!

0

14

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 422694

Clamp Plate, Pump Control

$14.99

$

In Stock, only 1 left!

0

16

Scag 04001-21

Bolt, Hex Head, 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 481793

Block, Pump Control

$56.99

$

Usually ships in 2-12 days

0

18

Scag 483805

Hose Assembly, Pump
(Superseded to 484458)

$137.99

$

Usually ships in 2-12 days

0

19

Scag 48350-01

Elbow, 90 Degree, 7/8-14 THD

$29.99

$

Usually ships in 2-12 days

0

20

Scag 48603-02

O-Ring

$3.49

$

In Stock, only 3 left!

0

21

Scag 48938-02

Bushing, 7/8-14 JIC x 3/4-16 O-Ring

$15.99

$

Usually ships in 2-12 days

0

22

Scag 423513

Strap, Hydraulic Tank

$14.99

$

In Stock, only 1 left!

0

23

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

24

Scag 461451

Oil Reservoir Assembly

Note: (includes 26, 30, 31, 32, 33)

$210.99

$

In Stock, only 1 left!

0

25

Scag 481164

Cap, Hydraulic Tank

$18.99

$

In Stock, Qty 8

0

26

Scag 481507

Insert, Filler Neck

$13.99

$

Usually ships in 2-12 days

0

27

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

28

Scag 04010-10

Screw, Phillips Head, 1/4-20

$0.99

$

In Stock, Qty 12

0

29

Scag 424942

Support Bracket, Hydraulic Tank

$91.99

$

Usually ships in 2-12 days

0

30

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

31

Scag 482572

Elbow, 90 Degree .38 Hose

$10.99

$

Usually ships in 2-12 days

0

32

Scag 482573

Bushing, .78 Dia. Viton

$13.99

$

In Stock, only 2 left!

0

33

Scag 482574

Elbow, 90 Degree

$18.99

$

Usually ships in 2-12 days

0

34

Scag 48136-05

Clamp, Hose

$3.99

$

In Stock, only 2 left!

0

35

Scag 48351

Hose Assembly, 1/2" ID (Oil Reservoir to Filter Base)

Note: Order by the inch.

$0.99

$

In Stock, Qty 12

0

36

Scag 04003-22

Bolt, Carraige 3/8-16 x 1"

$1.99

$

In Stock, Qty 7

0

37

Scag 48059-04

Clamp, Fuel Hose 5/16" ID

$0.99

$

Usually ships in 2-12 days

0

38

Scag 483620

Fuel Hose, 5/16" ID. Non-Perm

Note: High Pressure Fuel Line., Order by the inch.

$0.99

$

In Stock, Qty 20+

0

39

Fuel Filter

Note: Available through the individual engine manufacturer.

$

$

Not available

40

Scag 04041-07

Flatwasher, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

42

Scag 48758

Oil Filter

$27.99

$

In Stock, Qty 20+

0

43

Scag 482417

Oil Filter Base

$128.99

$

Usually ships in 2-12 days

0

44

Scag 04001-09

Bolt, Hex Head 5/16-18 x1.0" Zinc

$0.99

$

In Stock, Qty 20+

0

45

Scag 482477

Tee, 3/4 O-Ring x JIC x 1/2" Hose

$34.99

$

Usually ships in 2-12 days

0

46

Scag 48571-02

Cap

$5.99

$

Usually ships in 2-12 days

0

47

Scag 483768

Fuel Pump, Cat

$750.99

$

Usually ships in 2-12 days

0

48

Scag 48059-03

Clamp, 3/16" ID

$

$

Not available

49

Scag 481179

Hose, 3/16" Fuel Line

Note: Order by the inch.

$0.99

$

Usually ships in 2-12 days

0

50

Scag 481778

Hose Fitting

$29.99

$

Usually ships in 2-12 days

0

51

Scag 482571

Bushing

$12.99

$

In Stock, Qty 20+

0

52

Scag 481308

Valve, Fuel Shutoff

$42.99

$

Usually ships in 2-12 days

0

53

Scag 483749

Fitting, Hose with Screen

$12.99

$

In Stock, only 1 left!

0

54

Scag 482571

Bushing

$12.99

$

In Stock, Qty 20+

0

55

Scag 462305

Fuel Tank Assembly

Note: (incl. items 50, 51, 53, 54 & 64)

$387.99

$

Usually ships in 2-12 days

0

56

Scag 424914

Support Bracket, Fuel Tank

$203.99

$

Usually ships in 2-12 days

0

57

Scag 04003-07

Bolt, Carraige 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 9

0

58

Scag 424884

Mounting Bracket - LH, Oil Cooler

$18.99

$

Usually ships in 2-12 days

0

59

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

60

Scag 424885

Mounting Bracket - RH, Oil Cooler

$18.99

$

Usually ships in 2-12 days

0

61

Scag 482505

Oil Cooler

$247.99

$

Usually ships in 2-12 days

0

62

Scag 04003-12

Bolt, Carraige 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

63

Scag 04017-16

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

64

Scag 484251

Fuel Gauge Assy.

Note: (incl. item 65)

$93.99

$

Usually ships in 2-12 days

0

65

Scag 484242

Seal, Fuel Gauge

$15.99

$

In Stock, only 2 left!

0

66

Scag 484294

Cap, Fuel Tank

$24.99

$

In Stock, only 2 left!

0
