SMT-72V - Scag Turf Tiger 72" Mower Deck (SN: E2300001 - E2399999) Brake And Steering Components Parts Diagram

Turf Tiger 72" Mower Deck

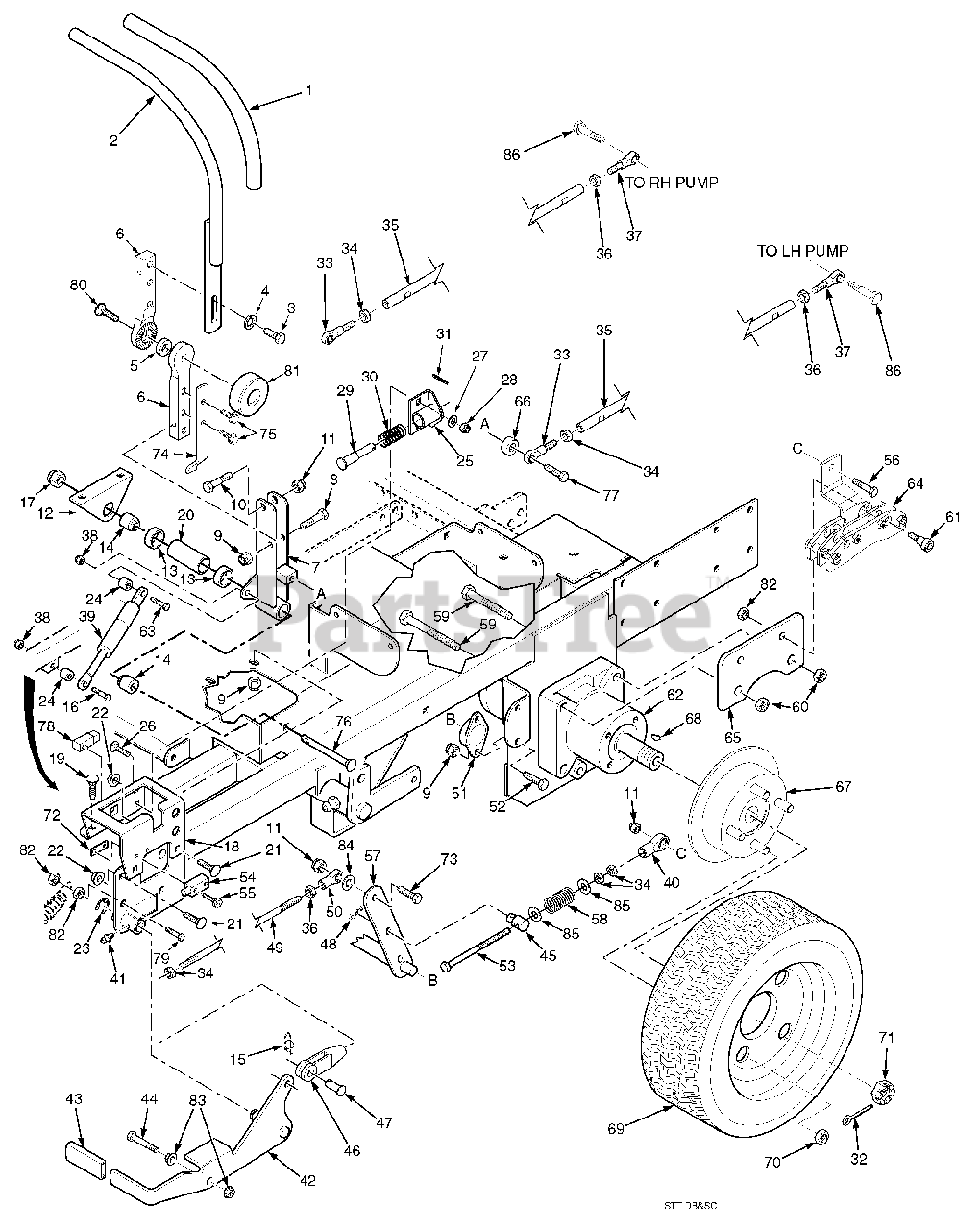

Brake And Steering Components Parts Diagram

  • Title

1

Scag 482340

Grip, Handle Bar

$7.99

$

Usually ships in 2-12 days

0

2

Scag 461914

Handle Bar, LH
(Superseded to 462802)

Note: (Includes item 1)

$147.99

$

In Stock, only 1 left!

0

Scag 461923

Handle Bar, RH
(Superseded to 462803)

Note: (Includes item 1)

$147.99

$

In Stock, only 1 left!

0

3

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

4

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

5

Scag 483250

Rubber Spacer

$9.49

$

In Stock, only 3 left!

0

6

Scag 483238

Bar, Control Lever

$37.99

$

Usually ships in 2-12 days

0

7

Scag 451483

Control Lever Weldment, LH

$88.99

$

Usually ships in 2-12 days

0

Scag 451484

Control Lever Weldment, RH

$88.99

$

Usually ships in 2-12 days

0

8

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

9

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 9

0

11

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 423488

Mount, Control Linkage

$5.99

$

Usually ships in 2-12 days

0

13

Scag 48224

Ball Bearings, Neutral Return

$13.99

$

In Stock, Qty 20+

0

14

Scag 43607

Spacer

$5.99

$

Usually ships in 2-12 days

0

15

Scag 04069-01

Pin, Rue Cotter 3/8 Dia.

$1.49

$

In Stock, Qty 5

0

16

Scag 04001-13

Bolt, Hex Head, 5/16-18 x 2.75 Zinc

$0.99

$

In Stock, only 1 left!

0

17

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

18

Scag 461601

Bracket, Control Lever LH

$41.99

$

Usually ships in 2-12 days

0

Scag 461602

Bracket, Control Lever RH

$41.99

$

Usually ships in 2-12 days

0

19

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

20

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

21

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 04050-01

Ring, Retaining 5/8" External "E"

$0.99

$

In Stock, Qty 20+

0

24

Scag 43602

Spacer

$3.49

$

In Stock, only 1 left!

0

25

Scag 45918

Bracket, Neutral Return

$45.99

$

In Stock, only 2 left!

0

26

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065)

$0.99

$

In Stock, only 4 left!

0

28

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

29

Scag 43477

Pin, Retaining Spring

$19.99

$

In Stock, only 2 left!

0

30

Scag 481389

Spring

$3.99

$

In Stock, only 4 left!

0

31

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

32

Scag 04061-06

Pin, Cotter 9/16 x 1-1/2"

$0.99

$

In Stock, Qty 11

0

33

Scag 482586

Rod End, Male 3/8-24 RH Thread

$20.99

$

Usually ships in 2-12 days

0

34

Scag 04020-25

Nut, 3/8-24 RH Thread

$0.99

$

In Stock, only 2 left!

0

35

Scag 483680

Tube, Control Link

$84.99

$

Usually ships in 2-12 days

0

36

Scag 04020-26

Nut, Hex 3/8-24 LH Thread

$1.99

$

In Stock, only 4 left!

0

37

Scag 482585

Rod End, Male 3/8-24 LH Thread

$20.99

$

Usually ships in 2-12 days

0

38

Scag 04021-05

Locknut, 5/16-18, Elastic Stop

$0.99

$

In Stock, Qty 20+

0

39

Scag 482794

Gas Damper
(Superseded to 484193)

$74.99

$

In Stock, only 2 left!

0

40

Scag 482330

Rod End, 3/8-24 RH Female

$25.99

$

In Stock, only 1 left!

0

41

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

42

Scag 461082

Lever, Parking Brake

Note: (Inc. item 43)

$98.99

$

In Stock, only 1 left!

0

43

Scag 481548

Grip, Parking Brake

$6.49

$

In Stock, Qty 9

0

44

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

45

Scag 43773

Swivel Joint

$41.99

$

Usually ships in 2-12 days

0

46

Scag 48343-04

Clevis, Traction Control

$17.99

$

In Stock, only 2 left!

0

47

Scag 04064-02

Pin, Clevis

$1.49

$

In Stock, only 4 left!

0

48

Scag 04062-01

Hair Pin Cotter

$0.99

$

In Stock, Qty 20+

0

49

Scag 04004-49

Rod, Parking Brake

$83.99

$

Usually ships in 2-12 days

0

50

Scag 48544

Rod End, LH Thread

$27.99

$

Usually ships in 2-12 days

0

51

Scag 482061

Bushing, Self Align

$15.99

$

Usually ships in 2-12 days

0

52

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-192

Bolt, Hex Hd 3/8-24 x 5-1/2"

$9.99

$

Usually ships in 2-12 days

0

54

Scag 481637

Switch, Parking Brake

$9.99

$

In Stock, Qty 20+

0

55

Scag 04010-12

Screw, Hex Slotted Washer Head #10 32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

56

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

57

Scag 45953

Bellcrank, Brake Actuator

$126.99

$

Usually ships in 2-12 days

0

58

Scag 48807

Spring

$32.99

$

Usually ships in 2-12 days

0

59

Scag 04001-190

Bolt, Hex Hd 1/2-13 x 2-3/4" (upper)

$2.49

$

In Stock, Qty 6

0

Scag 04001-52

Bolt, Hex Hd 1/2-13 x 2-1/2" (lower)

$1.99

$

Usually ships in 2-12 days

0

60

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 10

0

61

Scag 04009-10

Bolt, Shoulder 1/2 x 3/8-16 x 2-3/4"

$6.49

$

In Stock, Qty 20+

0

62

Scag 484108

Wheel Motor, Parker

$1006.99

$

Usually ships in 2-12 days

0

63

Scag 04001-12

Bolt, Hex Head, 5/16-18 x 1.75, Zinc

$0.99

$

In Stock, Qty 20+

0

64

Scag 483701

Brake Caliper

$114.99

$

In Stock, only 2 left!

0

65

Scag 424894

Mounting Bracket, Brake

$60.99

$

Usually ships in 2-12 days

0

66

Scag 43063

Spacer

$9.99

$

In Stock, only 2 left!

0

67

Scag 43771

Wheel Hub/Disk Brake Assembly
(Superseded to 462104)

$263.99

$

Usually ships in 2-12 days

0

68

Scag 04063-25

Key, Woodruff 5/16 x 1"

$2.99

$

In Stock, Qty 10

0

69

Scag 481850

Wheel Assembly 24 x 12-12 Turf Master

$394.99

$

Usually ships in 2-12 days

0

Scag 481851

Rim W/Valve Stem

$141.99

$

In Stock, only 2 left!

0

Scag 481852

Tire, 24 x 12-12 Turf Master

$297.99

$

Usually ships in 2-12 days

0

70

Scag 04028-02

Lug Nut, 1/2-20

$1.99

$

In Stock, Qty 20+

0

71

Scag 48680

Nut, Hex Castle

$17.99

$

In Stock, only 4 left!

0

72

Scag 422373

Threaded Plate

$11.99

$

Usually ships in 2-12 days

0

73

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

74

Scag 423491

Actuator, Switch

$25.99

$

Usually ships in 2-12 days

0

75

Scag 04017-16

Bolt, Hex Serrtd Flng 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

76

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 10

0

77

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

78

Scag 481638

Switch, Handle Neutral

$15.99

$

In Stock, Qty 20+

0

79

Scag 04001-168

Bolt, Hex Head 3/8-16 x 1-1/4" Grd 8

$0.99

$

In Stock, Qty 9

0

80

Scag 04003-05

Bolt, Carriage 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 18

0

81

Scag 483269

Knob

$24.99

$

In Stock, only 1 left!

0

82

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

83

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

84

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

85

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, only 4 left!

0

86

Scag 04001-21

Bolt, Hex Head, 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0
