SMT-61A - Scag Turf Tiger 61" Mower Deck (SN: 8570001 - 8579999) Deck Drive Components Parts Diagram

Turf Tiger 61" Mower Deck

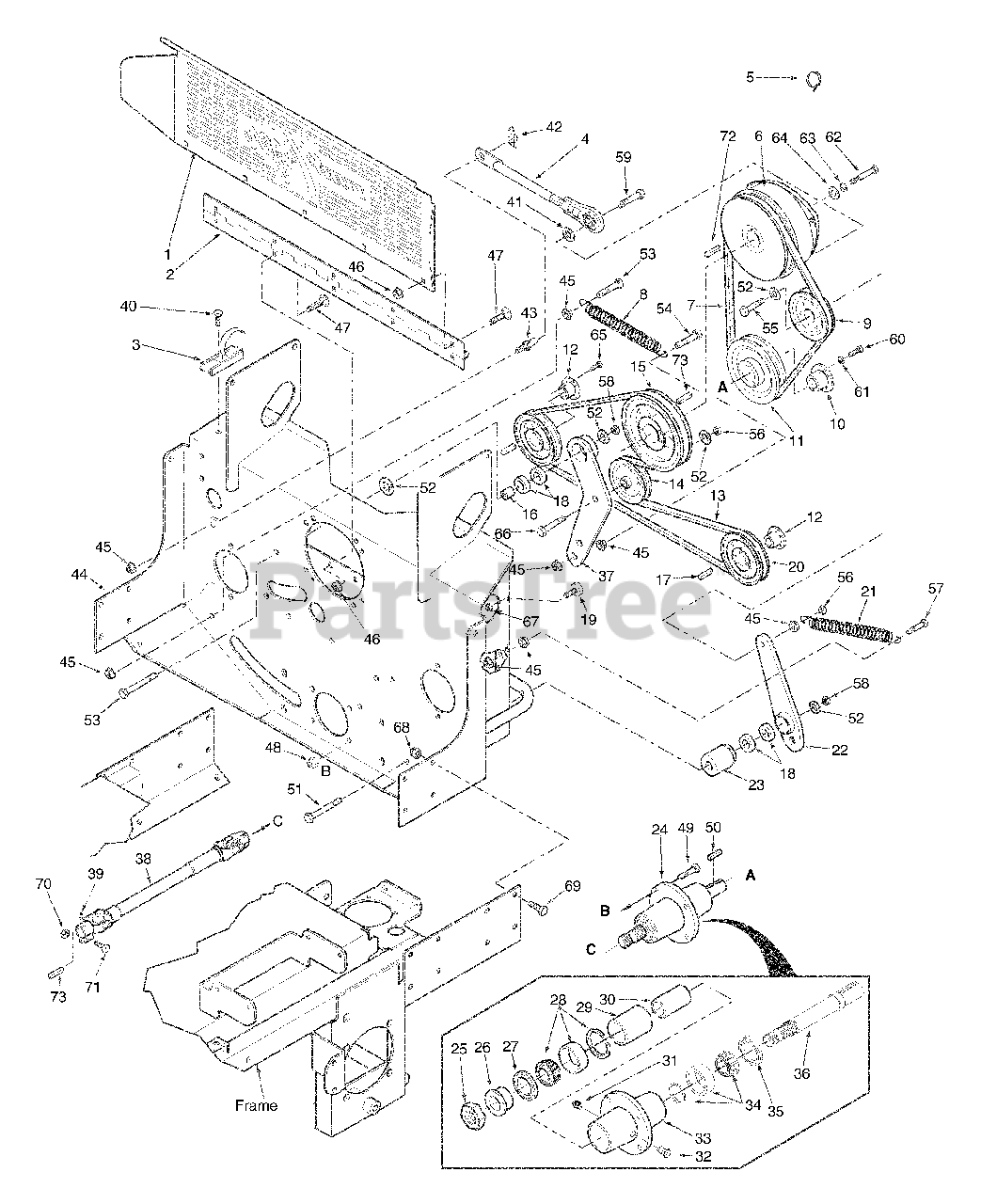

Deck Drive Components Parts Diagram

  • Title

1

Scag 423529

Belt Guard, Rear
(Superseded to 425133)

$69.99

$

In Stock, only 1 left!

0

2

Scag 481531

Hinge, Belt Guard

$31.99

$

In Stock, only 1 left!

0

3

Scag 481309

Latch, Hood

$

$

Not available

4

Scag 482554

Rod Assembly, Clutch Anti-Rotation
(Superseded to 482845)

$69.99

$

In Stock, only 1 left!

0

5

Scag 48030-09

Clamp, Cable

$1.49

$

In Stock, Qty 6

0

6

Scag 461466

Clutch, Ogura GT-3
(Superseded to 461716)

$568.99

$

Usually ships in 2-12 days

0

7

Scag 481460

Belt, Deck Drive

$38.99

$

In Stock, only 1 left!

0

8

Scag 482658

Spring, Transmission Idler
(Superseded to 461705)

$41.99

$

Usually ships in 2-12 days

0

9

Scag 48181

Pulley, Idler 5" Dia.

$26.99

$

In Stock, Qty 14

0

10

Scag 481536

Tapered Hub, 1" Bore

$60.99

$

Usually ships in 2-12 days

0

11

Scag 481398

Pulley, 6.35 Tapered Bore

$120.99

$

Usually ships in 2-12 days

0

12

Scag 481884

Tapered Hub, 17mm Bore

$28.99

$

In Stock, only 1 left!

0

13

Scag 482641

Belt, Pump Drive STT

$52.99

$

In Stock, only 1 left!

0

14

Scag 482655

Pulley, Idler 4" Dia.
(Superseded to 483214)

$27.99

$

In Stock, Qty 5

0

15

Scag 482670

Pulley, 4.45 Dia. - 1.125 Bore
(Superseded to 482872)

$61.99

$

In Stock, only 1 left!

0

16

Scag 43631

Spacer, Idler Bearing

$5.49

$

Usually ships in 2-12 days

0

17

Scag 04063-14

Key, 5.0 x 5.0 x 25mm

$0.99

$

In Stock, Qty 5

0

18

Scag 48224

Ball Bearing

$13.99

$

In Stock, Qty 20+

0

19

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

20

Scag 481883

Pulley, 6.25 OD Tapered Bore
(Superseded to 482752)

$63.99

$

Usually ships in 2-12 days

0

21

Scag 482667

Spring, PTO
(Superseded to 484754)

$18.99

$

In Stock, Qty 6

0

22

Scag 461609

Idler Arm Weldment, PTO Drive

$59.99

$

Usually ships in 2-12 days

0

23

Scag 43632

Pivot, Idler PTO

$27.99

$

Usually ships in 2-12 days

0

24

Scag 46977

Spindle Assembly, Deck Drive
(Superseded to 461697)

$327.99

$

In Stock, only 1 left!

0

25

Scag 481035

Nut, 1.06-18 Thread

$7.99

$

In Stock, only 3 left!

0

26

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

27

Scag 481025

Seal, 2.0 OD x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

28

Scag 481022

Roller Bearing Tapered

$61.99

$

In Stock, Qty 15

0

29

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

30

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

31

Scag 48114-04

Grease Fitting, 1/4-28

$1.49

$

In Stock, Qty 20+

0

32

Scag 48677

Relief Fitting

$9.49

$

Usually ships in 2-12 days

0

33

Scag 43294

Spindle Housing
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

34

Scag 481022

Roller Bearing Tapered

$61.99

$

In Stock, Qty 15

0

35

Scag 481024

Seal, 2.0 OD x 1.5 Bore

$4.99

$

In Stock, Qty 20+

0

36

Scag 43321

Shaft, Deck Drive

$214.99

$

Usually ships in 2-12 days

0

37

Scag 461608

Idler Arm Weldment, Pump Drive

$88.99

$

Usually ships in 2-12 days

0

38

Scag 482424

Driveshaft (Air Cooled Engine)

$627.99

$

In Stock, only 1 left!

0

Scag 482438

Driveshaft (Liquid Cooled Engine)

$667.99

$

Usually ships in 2-12 days

0

39

Scag 04012-08

Set Screw, 3/8-16 x 3/4" Torx Socket
(Superseded to 04012-06)

$0.99

$

In Stock, only 1 left!

0

40

Scag 04011-11

Screw, #10-32 x .56

$0.99

$

In Stock, Qty 8

0

41

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

42

Scag 04069-01

Pin, Rue Cotter 3/8 Dia.

$1.49

$

In Stock, Qty 5

0

43

Scag 43507

Stud, Anti Rotation

$33.99

$

In Stock, only 1 left!

0

44

Scag 451573

Pump Mounting Plate Weldment (Air Cooled)
(Superseded to 462092)

$564.99

$

Usually ships in 2-12 days

0

Scag 451574

Pump Mounting Plate Weldment (Liquid Cooled)
(Superseded to 462091)

$564.99

$

Usually ships in 2-12 days

0

45

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

46

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

47

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

48

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

49

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

50

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2"

$1.49

$

In Stock, only 2 left!

0

51

Scag 04001-171

Bolt, Hex Head 3/8-16 x 4-1/2" Grade 8 Black

$2.49

$

In Stock, Qty 5

0

52

Scag 04043-04

Washer, 3/8 Hardened

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4" Grade 8 Black

$0.99

$

In Stock, Qty 5

0

54

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

55

Scag 04001-170

Bolt, Hex Head 3/8-16 x 2-1/2" 1.5 Thread Grd.8

$3.99

$

In Stock, Qty 6

0

56

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

57

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

58

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

59

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 9

0

60

Scag 04001-109

Bolt, Hex Head 1/4-20 x 1-3/8"

$2.49

$

In Stock, only 2 left!

0

61

Scag 04030-02

Lockwasher, 1/4 Spring

$0.99

$

In Stock, Qty 20+

0

62

Scag 04001-101

Bolt, Hex Head 7/16-20 x 2-1/2" UNF

$2.49

$

In Stock, only 3 left!

0

63

Scag 04030-05

Lockwasher, 7/16 Spring

$0.99

$

In Stock, Qty 8

0

64

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 13

0

65

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

66

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

67

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

68

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

69

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

70

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

71

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

72

Scag 04063-02

Key, 1/4 x 1/4 x 2-1/4"

$1.99

$

In Stock, only 2 left!

0

73

Scag 04063-20

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 5

0
