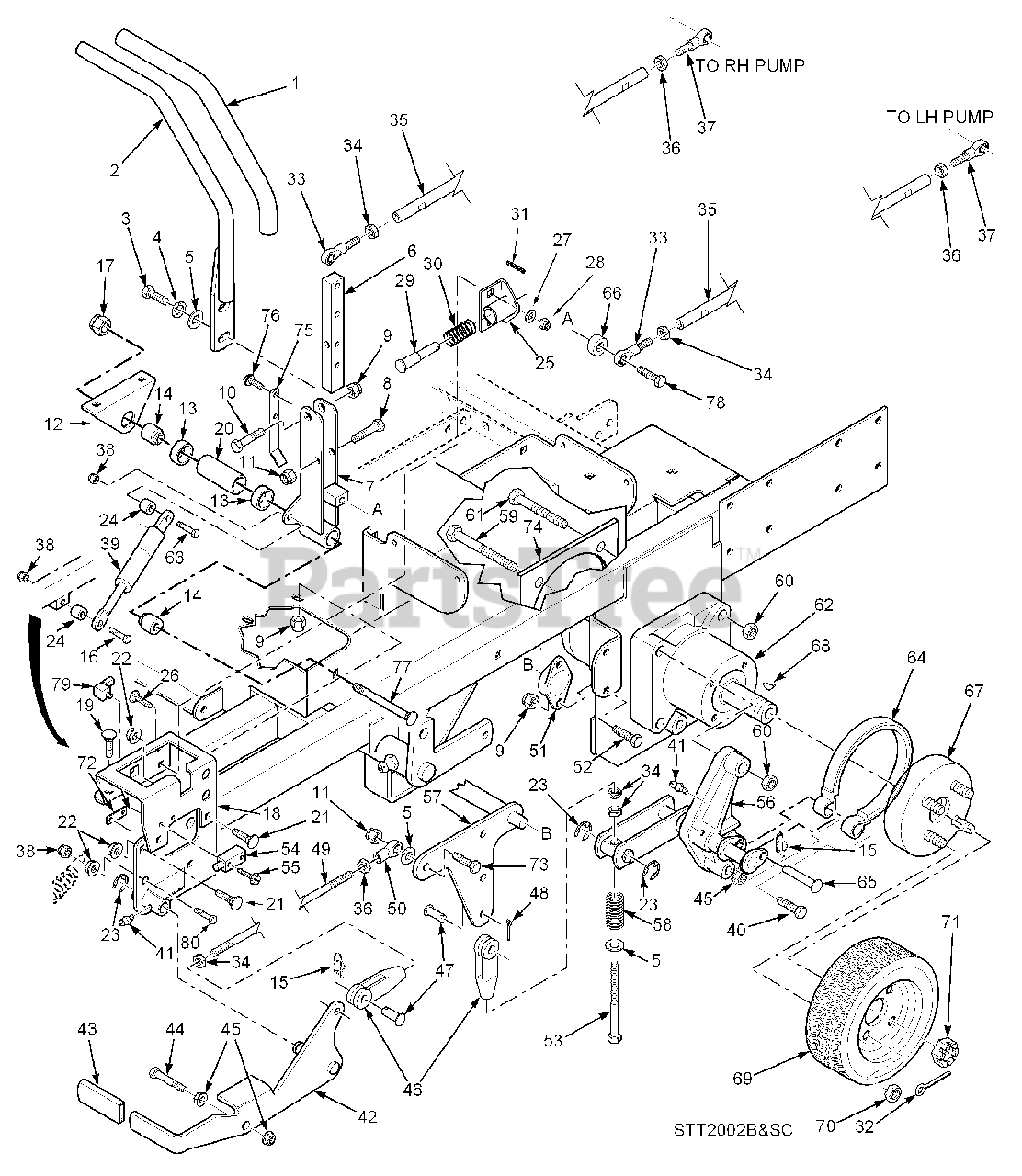

SMT-52A - Scag Turf Tiger 52" Mower Deck (SN: 7760001 - 7769999) Brake And Steering Components Parts Diagram

Turf Tiger 52" Mower Deck

Brake And Steering Components Parts Diagram

  • Title

1

Scag 482340

Grip, Handle Bar

$7.99

$

Usually ships in 2-12 days

0

2

Scag 461386

Handle Bar

Note: (Includes item 1)

$74.99

$

Usually ships in 2-12 days

0

3

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

4

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

5

Scag 04041-07

Flatwasher. 3/8"

Note: (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

6

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

7

Scag 451483

Control Lever Weldment, LH

$86.99

$

Usually ships in 2-12 days

0

Scag 451484

Control Lever Weldment, RH

$86.99

$

Usually ships in 2-12 days

0

8

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

9

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

11

Scag 04021-09

Nut, Hex Elastic Stop

$0.99

$

In Stock, Qty 20+

0

12

Scag 423488

Mount, Control Linkage

$5.99

$

Usually ships in 2-12 days

0

13

Scag 48224

Ball Bearings, Neutral Return

$12.99

$

In Stock, Qty 20+

0

14

Scag 43607

Spacer

$5.99

$

Usually ships in 2-12 days

0

15

Scag 04069-01

Pin, Rue Cotter 3/8 Dia.

$1.49

$

In Stock, only 4 left!

0

16

Scag 04001-13

Bolt, Hex Head, 5/16-18 x 2.75 Zinc.

$0.99

$

In Stock, only 1 left!

0

17

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

18

Scag 423486

Bracket, Control Lever LH
(Superseded to 461601)

$40.99

$

Usually ships in 2-12 days

0

Scag 423487

Bracket, Control Lever RH
(Superseded to 461602)

$40.99

$

Usually ships in 2-12 days

0

19

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

20

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

21

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 04050-01

Ring, Retaining 5/8" External "E"

$0.99

$

In Stock, Qty 20+

0

24

Scag 43602

Spacer

$2.99

$

In Stock, only 2 left!

0

25

Scag 45918

Bracket, Neutral Return

$44.99

$

In Stock, only 2 left!

0

26

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-14

Flatwasher, 1/4"

Note: (.312 x .750 x .065)

$0.99

$

In Stock, only 4 left!

0

28

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

29

Scag 43477

Pin, Retaining Spring

$18.99

$

In Stock, only 2 left!

0

30

Scag 481389

Spring

$3.49

$

In Stock, only 4 left!

0

31

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

32

Scag 04061-06

Pin, Cotter 9/16 x 1-1/2"

$0.99

$

In Stock, Qty 11

0

33

Scag 482586

Rod End, Male 3/8-24 RH Thread

$20.99

$

Usually ships in 2-12 days

0

34

Scag 04020-25

Nut, 3/8-24 RH Thread

$0.99

$

In Stock, only 2 left!

0

35

Scag 43463

Tube, Control Link Air Cooled Engine

$80.99

$

Usually ships in 2-12 days

0

Scag 43623

Tube, Control Link Liquid Cooled Engine

$170.99

$

Usually ships in 2-12 days

0

36

Scag 04020-26

Nut, Hex 3/8-24 LH Thread

$1.99

$

In Stock, only 4 left!

0

37

Scag 482585

Rod End, Male 3/8-24 LH Thread

$20.99

$

In Stock, only 1 left!

0

38

Scag 04021-10

Locknut, 5/16-18, Elastic Stop

$0.99

$

In Stock, Qty 20+

0

39

Scag 482452

Gas Damper

$93.99

$

In Stock, only 3 left!

0

40

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

41

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

42

Scag 461082

Lever, Parking Brake

Note: (Includes item 43)

$95.99

$

In Stock, only 1 left!

0

43

Scag 481548

Grip, Parking Brake

$6.49

$

In Stock, Qty 9

0

44

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

45

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

46

Scag 48343-04

Clevis, Traction Control

$16.99

$

In Stock, only 2 left!

0

47

Scag 04064-02

Pin, Clevis 3/8-16 x 1-1/16"

$1.49

$

In Stock, only 3 left!

0

48

Scag 04061-02

Pin, Cotter 3/32 x .75

$0.99

$

In Stock, Qty 11

0

49

Scag 04004-34

Rod, Parking Brake

$25.99

$

Usually ships in 2-12 days

0

50

Scag 48544

Rod End, LH Thread

$26.99

$

Usually ships in 2-12 days

0

51

Scag 48796

Bushing, Self Align

$12.99

$

Usually ships in 2-12 days

0

52

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-147

Bolt, Hex Hd 3/8-24 x 5-1/4", 23/4" Thrd

$14.99

$

In Stock, Qty 8

0

54

Scag 481637

Switch

$9.99

$

In Stock, Qty 20+

0

55

Scag 04010-12

Screw, Hex SLTD WSHR Head #10 32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

56

Scag 461471

Brake Linkage, LH

$363.99

$

Usually ships in 2-12 days

0

Scag 461472

Brake Linkage, RH

$363.99

$

Usually ships in 2-12 days

0

57

Scag 45953

Bellcrank, Brake Actuator

$123.99

$

Usually ships in 2-12 days

0

58

Scag 48807

Spring

$32.99

$

Usually ships in 2-12 days

0

59

Scag 04001-163

Bolt, Hex Head 1/2-13 x 3-3/4"

$2.99

$

In Stock, Qty 14

0

60

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 5

0

61

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2-1/2"

$1.49

$

Usually ships in 2-12 days

0

62

Scag 481529

Wheel Motor, Ross
(Superseded to 482639)

$955.99

$

In Stock, only 1 left!

0

63

Scag 04001-12

Bolt, Hex Head, 5/16-18 x 1.75, Zinc

$0.99

$

In Stock, Qty 20+

0

64

Scag 481601

Brake Band Assembly

$59.99

$

In Stock, only 1 left!

0

65

Scag 04064-16

Pin, Clevis 3/8" Dia. x 1.93"

$

$

Not available

66

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0

67

Scag 461438

Wheel Hub/Brake Drum Assembly

$124.99

$

In Stock, only 1 left!

0

68

Scag 04063-25

Key, Woodruff 5/16 x 1"

$2.99

$

In Stock, Qty 10

0

69

Scag 481552

Wheel Assembly 23 x 10.5-12

Note: (52" Only)

$368.99

$

Usually ships in 2-12 days

0

69

Scag 481659

Rim W/Valve Stem

Note: (52" Only)

$137.99

$

In Stock, only 1 left!

0

69

Scag 481660

Tire, 23 x 10.5-12

Note: (52" Only)

$417.99

$

Usually ships in 2-12 days

0

69

Scag 481850

Wheel Assembly 24 x 12-12 Turf Master

$385.99

$

Usually ships in 2-12 days

0

69

Scag 481851

Rim W/Valve Stem

$138.99

$

In Stock, only 1 left!

0

69

Scag 481852

Tire, 24 x 12-12 Turf Master

$290.99

$

Usually ships in 2-12 days

0

70

Scag 04028-02

Lug Nut, 1/2-20

$1.49

$

In Stock, Qty 20+

0

71

Scag 48680

Nut, Hex Castle

$16.99

$

In Stock, only 3 left!

0

72

Scag 422373

Threaded Plate

$11.99

$

Usually ships in 2-12 days

0

73

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

74

Scag 423279

Plate Weldment, Motor Backing

$26.99

$

Usually ships in 2-12 days

0

75

Scag 423491

Actuator Switch

$25.99

$

Usually ships in 2-12 days

0

76

Scag 04017-16

Bolt, Hex Serrated Flange 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

77

Scag 04003-36

Bolt, Carriage 3/8-16 x 4-3/4"

$19.99

$

Usually ships in 2-12 days

0

78

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

79

Scag 481638

Switch

$15.99

$

In Stock, Qty 20+

0

80

Scag 04001-168

Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8

$0.99

$

In Stock, Qty 9
