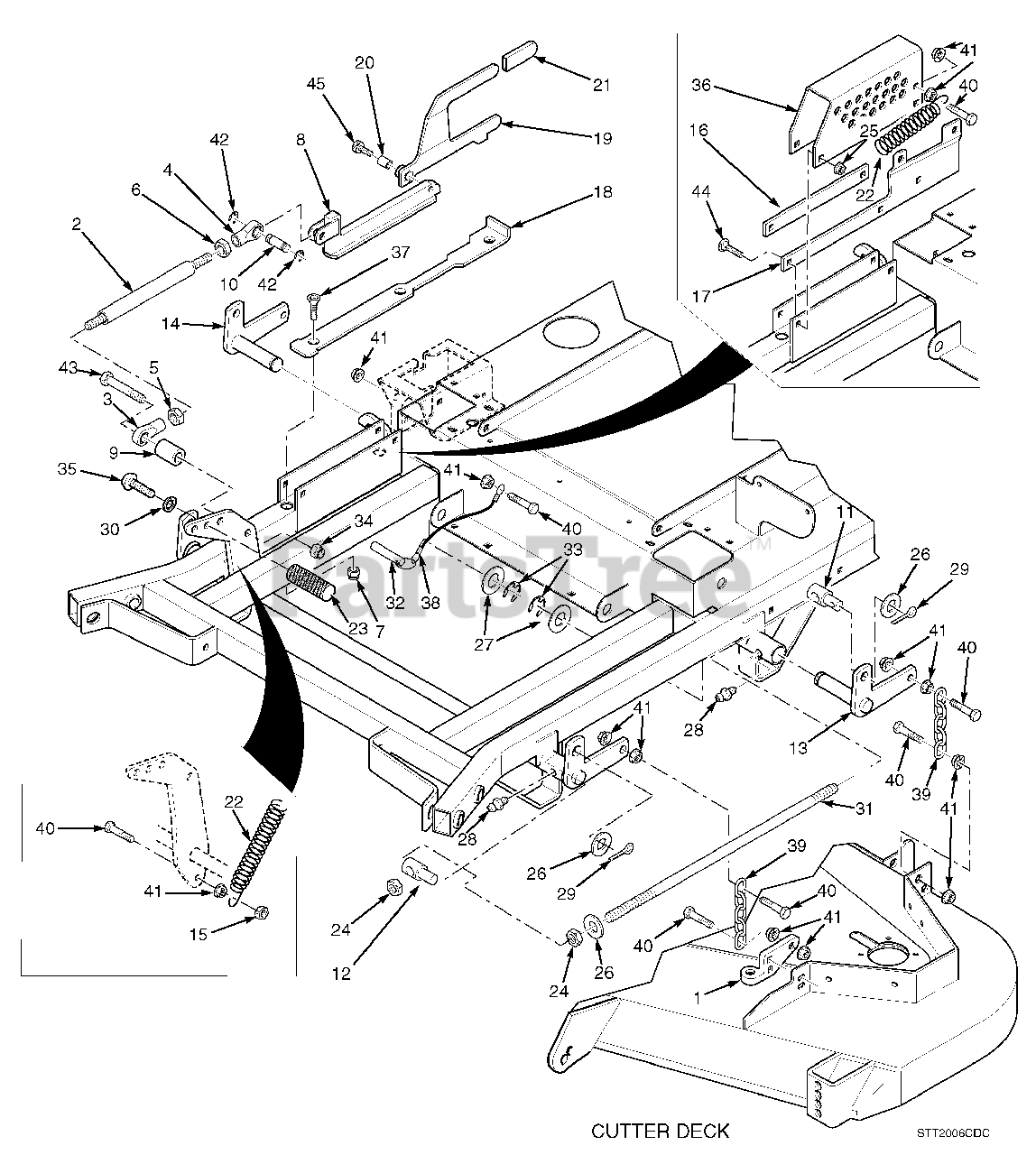

SMST-72A - Scag Turf Tiger 72" Mower Deck (SN: E0000001 - E0099999) Cutter Deck Controls Parts Diagram

Turf Tiger 72" Mower Deck

Cutter Deck Controls Parts Diagram

  • Title

1

Scag 461929

Lever Assembly, Deck Level

$62.99

$

Usually ships in 2-12 days

0

2

Scag 481764

Link, Deck Lift

$10.99

$

Usually ships in 2-12 days

0

3

Scag 481765

Rod End, Female - 1/2-20 RH

$42.99

$

In Stock, only 1 left!

0

4

Scag 481766

Rod End, Female - 1/2-20 LH

$49.99

$

In Stock, only 1 left!

0

5

Scag 04020-27

Nut, Jam 1/2-20 RH

$4.49

$

In Stock, Qty 5

0

6

Scag 04020-28

Nut, Jam 1/2-20 LH

$3.49

$

In Stock, Qty 8

0

7

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

8

Scag 482429

Slide Weldment, Height Adjustment

$89.99

$

Usually ships in 2-12 days

0

9

Scag 43391

Spacer, Decklift Pedal

$8.99

$

Usually ships in 2-12 days

0

10

Scag 43487

Pin, Decklift

$4.99

$

In Stock, only 1 left!

0

11

Scag 43526

Swivel Joint, LH

$18.99

$

In Stock, Qty 11

0

12

Scag 43527

Swivel Joint, RH

$16.99

$

In Stock, Qty 5

0

13

Scag 45904

Bellcrank Weldment, LH Rear

$107.99

$

Usually ships in 2-12 days

0

14

Scag 45905

Bellcrank Weldment, RH Rear

$107.99

$

Usually ships in 2-12 days

0

15

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

16

Scag 422381

Guide, Short

$20.99

$

Usually ships in 2-12 days

0

17

Scag 423509

Guide, Long

$69.99

$

Usually ships in 2-12 days

0

18

Scag 422346

Lockplate, Decklift

$46.99

$

Usually ships in 2-12 days

0

19

Scag 46975

Deck Latch

Note: (Includes items 20 & 21)

$57.99

$

Usually ships in 2-12 days

0

20

Scag 48100-14

Bushing, .502" ID.

$2.49

$

In Stock, only 2 left!

0

21

Scag 481428

Grip, Deck Latch

$4.49

$

Usually ships in 2-12 days

0

22

Scag 481598

Spring, Helper

Note: (61" & 72" Cutter Decks Only)

$66.99

$

Usually ships in 2-12 days

0

23

Scag 424504

Foot Pedal, Height Adjustment

$14.99

$

In Stock, only 1 left!

0

24

Scag 04020-09

Nut, Hex 5/8-11

$0.99

$

In Stock, Qty 20+

0

25

Scag 04019 -03

Nut, Hex Serrated Flange 5/16-18

$

$

Currently unavailable

26

Scag 04040-09

Flatwasher, 5/8" (.656 x 1.312 x .095")

$0.99

$

In Stock, Qty 12

0

27

Scag 04041-14

Flatwasher, 1" (1.062 x 1.50 x .048")

$0.99

$

In Stock, Qty 15

0

28

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

29

Scag 04061-07

Cotter Pin, 3/16 x 1"

$1.49

$

In Stock, Qty 9

0

30

Scag 04030-07

Lockwasher, 5/8"

$1.49

$

In Stock, Qty 19

0

31

Scag 04004-44

Stud, 5/8-11 x 22.0"

$33.99

$

Usually ships in 2-12 days

0

32

Scag 04067-09

Ring Pin, 1/2 x 3.06"

$34.99

$

Usually ships in 2-12 days

0

33

Scag 04050-08

Ring, Retaining 1" External "E"

$0.99

$

In Stock, Qty 12

0

34

Scag 04021-07

Nut, Hex Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

35

Scag 04105-01

Capscrew, 5/8-11 x 1-1/2"
(Superseded to 04108-04)

$2.99

$

Usually ships in 2-12 days

0

36

Scag 423463

Bracket, Cutting Height Adjustment

$95.99

$

Usually ships in 2-12 days

0

37

Scag 04014-03

Screw, Cap 5/16-18 x 3" FHHS

$1.99

$

In Stock, Qty 7

0

38

Scag 481547

Lanyard, Deck Height Pin

$16.99

$

In Stock, only 1 left!

0

39

Scag 48540

Chain
(Superseded to 482628)

$11.99

$

In Stock, only 3 left!

0

40

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

41

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

42

Scag 04050-10

Ring, Retaining 1/2" External "E"

$0.99

$

In Stock, only 4 left!

0

43

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0

44

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

45

Scag 04009-02

Bolt, Shoulder 1/2 x 3/4"

$3.99

$

In Stock, only 1 left!

0
