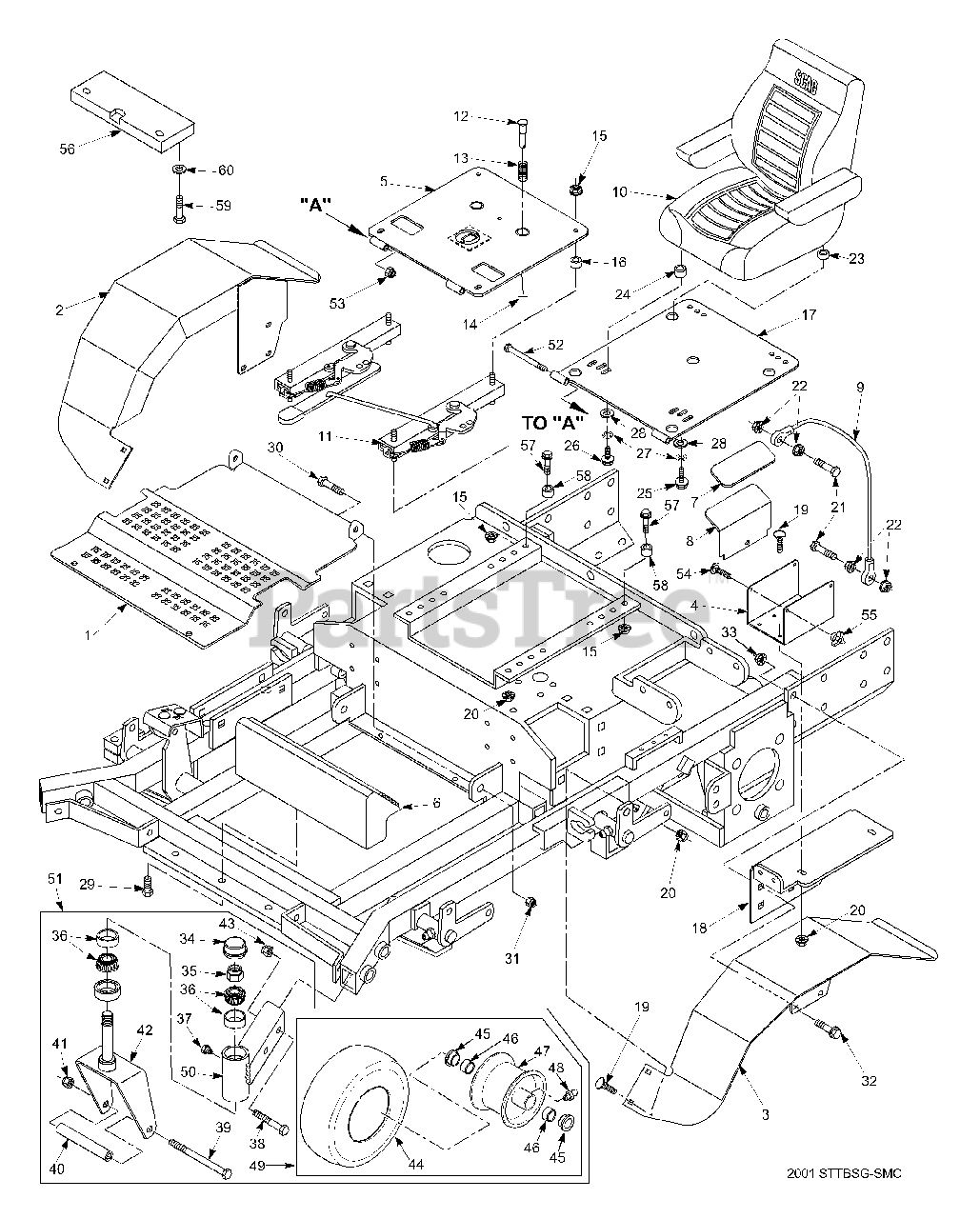

SMST-72A - Scag Sabre Tooth Tiger 72" Mower Deck (SN: 6860001 - 6869999) Sheet Metal Components Parts Diagram

Sabre Tooth Tiger 72" Mower Deck

Sheet Metal Components Parts Diagram

  • Title

1

Scag 422567

Footplate
(Superseded to 423309)

$148.99

$

Usually ships in 2-12 days

0

2

Scag 451079

Fender, RH
(Superseded to 451481)

$273.99

$

Usually ships in 2-12 days

0

3

Scag 451078

Fender, LH
(Superseded to 451480)

$178.99

$

Usually ships in 2-12 days

0

4

Scag 422683

Box, Battery

$

$

Not available

5

Scag 45925

Plate, Lower Seat

$256.99

$

Usually ships in 2-12 days

0

6

Scag 481825

Footrest

$192.99

$

Usually ships in 2-12 days

0

7

Scag 481780

Insulation, Battery Cover

$11.99

$

Usually ships in 2-12 days

0

8

Scag 422682

Cover, Battery

$35.99

$

In Stock, only 1 left!

0

9

Scag 48566

Cable, Seat Stop

$17.99

$

In Stock, only 1 left!

0

10

Scag 482147

Seat
(Superseded to 482597)

$779.99

$

In Stock, only 1 left!

0

Scag 482344

Armrest, Both Sides
(Superseded to 482595)

$

$

Not available

Scag 482343

Cover, Armrest

$95.99

$

Usually ships in 2-12 days

0

Scag 482342

Cover, Lower Cushion

$

$

Not available

Scag 482341

Cover, Backrest

$

$

Not available

11

Scag 461232

Track Set, Seat Adjuster

$156.99

$

In Stock, only 1 left!

0

12

Scag 43462

Pin, Spring

$28.99

$

In Stock, only 1 left!

0

13

Scag 481389

Spring, Seat

$3.99

$

In Stock, only 4 left!

0

14

Scag 04060-01

Spring Pin, .156 x .75"

$0.99

$

Usually ships in 2-12 days

0

15

Scag 04019-03

Nut, Serr. Flg. 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 43336

Spacer

$9.99

$

Usually ships in 2-12 days

0

17

Scag 45926

Plate, Upper Seat

$166.99

$

Usually ships in 2-12 days

0

18

Scag 422699

Bracket, Battery
(Superseded to 423419)

$59.99

$

Usually ships in 2-12 days

0

19

Scag 04003-12

Bolt, Carr. 5/16 -18 x .75"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04019-03

Nut, Serr. Flg. 5/16-18

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1.25"

$0.99

$

In Stock, Qty 6

0

22

Scag 04019-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

23

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

24

Scag 43535

Spacer

$11.99

$

In Stock, only 1 left!

0

25

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1.5"

$0.99

$

In Stock, Qty 6

0

26

Scag 04001-39

Bolt, Hex Head 5/16-18 x 2.25"

$0.99

$

In Stock, Qty 10

0

27

Scag 04030-03

Lock Washer 5/16"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04040-15

Flat Washer 5/16 .375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-71

Bolt, Hex Head 1/2-13 x 1.5"

$1.49

$

In Stock, only 4 left!

0

30

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1.0"

$0.99

$

In Stock, Qty 7

0

31

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

32

Scag 04017-27

Capscrew, Serr. Flng. 3/8-16 x 1.00"

$1.49

$

In Stock, Qty 20+

0

33

Scag 04019-04

Nut, Serr. Flng. 3/8-16

$0.99

$

In Stock, Qty 20+

0

34

Scag 481559

Cap, Grease

$6.99

$

In Stock, Qty 20+

0

35

Scag 04021-20

Nut, Hex Elastic Stop 1.0-14

$4.99

$

In Stock, Qty 20+

0

36

Scag 481657

Bearing w/ Race
(Superseded to 48668)

$24.99

$

In Stock, Qty 20+

0

37

Scag 482028-01

Plug, 1/4-28 THD Form

$6.49

$

In Stock, only 3 left!

0

38

Scag 04001-125

Bolt, Hex Head 5/8-11 x 4.00"

$7.49

$

In Stock, only 4 left!

0

39

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7.5"

$5.49

$

In Stock, Qty 20+

0

40

Scag 43430

Spacer

$16.99

$

In Stock, Qty 6

0

41

Scag 04021-07

Nut, Hex Head Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

42

Scag 45934

Yoke Weldment, Caster

$156.99

$

In Stock, only 2 left!

0

43

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

44

Scag 481613

Tire

$123.99

$

In Stock, only 1 left!

0

45

Scag 481770

Bearing, Oilite

$4.99

$

In Stock, Qty 20+

0

46

Scag 481846

Bearing, Roller

$19.99

$

In Stock, only 2 left!

0

47

Scag 481612

Rim Assembly

Note: (Incl. item # 48)

$225.99

$

Usually ships in 2-12 days

0

48

Scag 48114-06

Fitting, Grease

$3.99

$

Usually ships in 2-12 days

0

49

Scag 481551

Wheel Assembly

Note: (Incl. # 44 through 48)

$205.99

$

Usually ships in 2-12 days

0

50

Scag 45934

Extension, Caster Wheel LH, 61"

$156.99

$

In Stock, only 2 left!

0

Scag 45938

Extension, Caster Wheel LH, 72"

$137.99

$

Usually ships in 2-12 days

0

Scag 45937

Extension, Caster Wheel LH, 61" Adv.

$

$

Not available

Scag 45939

Extension, Caster Wheel LH, 72" Adv.

$567.99

$

Usually ships in 2-12 days

0

Scag 45989

Extension, Caster Wheel RH, 61"

$237.99

$

Usually ships in 2-12 days

0

Scag 451076

Extension, Caster Wheel RH, 72"

$173.99

$

Usually ships in 2-12 days

0

Scag 45937

Extension, Caster Wheel RH, 61" Adv.

$

$

Not available

Scag 451128

Extension, Caster Wheel RH, 72" Adv.

$479.99

$

Usually ships in 2-12 days

0

51

Scag 46986

Caster Wheel Assembly LH, 61" Adv.

Note: (Incl. # 34 through #37, & #39 through 50 )

$

$

Not available

Scag 46988

Caster Wheel Assembly LH , 72" Adv.

Note: (Incl. # 34 through #37, & #39 through 50 )

$749.99

$

Usually ships in 2-12 days

0

Scag 46986

Caster Wheel Assembly RH, 61" Adv.

Note: (Incl.# 34 through #37, & #39 through 50 )

$

$

Not available

Scag 461189

Caster Wheel Assembly RH, 72" Adv.

Note: (Incl.# 34 through #37, & #39 through 50 )

$694.99

$

Usually ships in 2-12 days

0

52

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3.50"

$1.49

$

Usually ships in 2-12 days

0

53

Scag 04021-10

Nut, Hex Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

54

Scag 04003-01

Bolt, Carriage 1/4-20 x 6.00"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

55

Scag 04029-01

Wing Nut 1/4-20 x .75"

$2.49

$

In Stock, Qty 19

0

56

Scag 41020

Weight

Note: (61" cutter deck only)

$141.99

$

Usually ships in 2-12 days

0

57

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1.75"

$0.99

$

In Stock, Qty 20+

0

58

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

59

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3.5"

$2.49

$

In Stock, only 4 left!

0

60

Scag 04040-13

Flat Washer 1/2-.562 x .1.375 x .109

$0.99

$

In Stock, Qty 20+

0
