SMST-72A - Scag Sabre Tooth Tiger 72" Mower Deck (SN: 6860001 - 6869999) Brake And Steering Components Parts Diagram

Sabre Tooth Tiger 72" Mower Deck

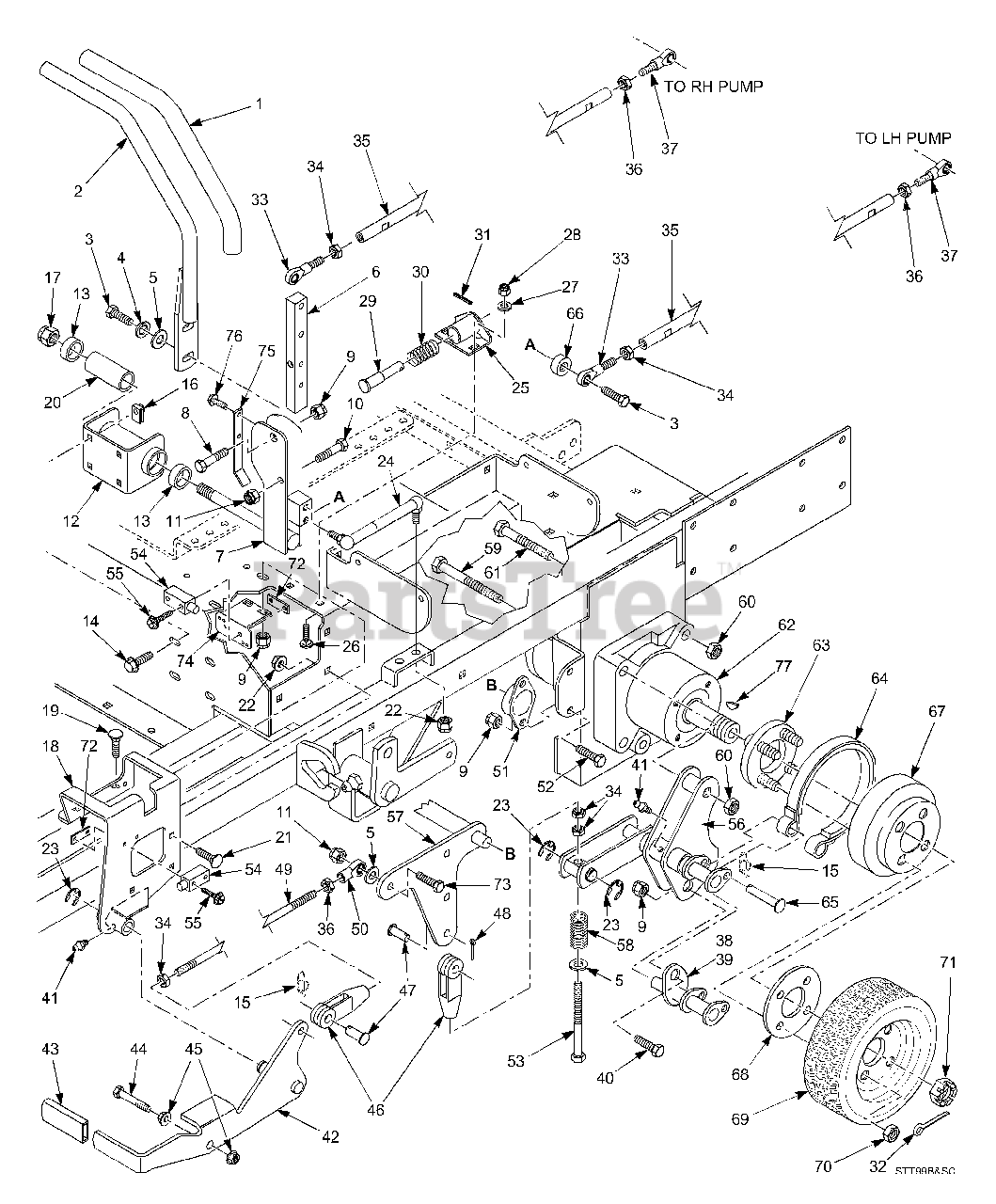

Brake And Steering Components Parts Diagram

  • Title

1

Scag 481599

Grip, Handle Bar

$10.99

$

Usually ships in 2-12 days

0

2

Scag 461037

Handle Bar

Note: (Includes item 1)

$114.99

$

Usually ships in 2-12 days

0

3

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

4

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

5

Scag 04041-07

Flatwasher. 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

6

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

7

Scag 45915

Control Lever

$180.99

$

Usually ships in 2-12 days

0

8

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

9

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

11

Scag 04021-09

Nut, Hex Elastic Stop

$0.99

$

In Stock, Qty 20+

0

12

Scag 461080

Bracket, Control

Note: (Includes items 13 & 20)

$

$

Not available

13

Scag 48224

Ball Bearings, Neutral Return

$12.99

$

In Stock, Qty 20+

0

14

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

15

Scag 04069-01

Pin, Rue Cotter 3/8 DIA

$1.49

$

In Stock, Qty 5

0

16

Scag 04110-02

U-Nut,5/16-18

$3.49

$

Usually ships in 2-12 days

0

17

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

18

Scag 45973

Bracket, Control Lever LH

$

$

Not available

Scag 422362

Bracket, Control Lever RH

$

$

Not available

19

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

20

Scag 43465

Spacer, Bearing

$

$

Not available

21

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 04050-01

Ring, Retaining 5/8" External "E"

$0.99

$

In Stock, Qty 20+

0

24

Scag 461090

Gas Damper

Note: (Includes Ball Stud & Spring Clip)

$131.99

$

Usually ships in 2-12 days

0

Scag 481356

Ball Stud, Gas Spring

Note: (Not Shown)

$4.49

$

Usually ships in 2-12 days

0

Scag 481357

Spring Clip, Gas Spring

Note: (Not Shown)

$1.49

$

Usually ships in 2-12 days

0

25

Scag 45918

Bracket, Neutral Return

$44.99

$

In Stock, only 2 left!

0

26

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065)

$0.99

$

In Stock, only 4 left!

0

28

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

29

Scag 43477

Pin, Retaining Spring

$18.99

$

In Stock, only 2 left!

0

30

Scag 481389

Spring

$3.49

$

In Stock, only 4 left!

0

31

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

32

Scag 04061-06

Pin, Cotter 9/16 x 1-1/2"

$0.99

$

In Stock, Qty 11

0

33

Scag 481539

Rod End, Male 3/8-24 RH THD.
(Superseded to 482586)

$20.99

$

Usually ships in 2-12 days

0

34

Scag 04020-25

Nut, 3/8-24 RH THD.

$0.99

$

In Stock, only 2 left!

0

35

Scag 481767

Tube, Control Link

$141.99

$

Usually ships in 2-12 days

0

36

Scag 04020-26

Nut, Hex 3/8-24 LH THD.

$1.99

$

In Stock, only 4 left!

0

37

Scag 481538

Rod End, Male 3/8-24 LH THD.
(Superseded to 482585)

$20.99

$

In Stock, only 1 left!

0

38

Scag 451073

Brake Linkage Weldment LH

$70.99

$

Usually ships in 2-12 days

0

39

Scag 451074

Brake Linkage Weldment RH

$

$

Not available

40

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

41

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

42

Scag 461082

Lever, Parking Brake

Note: (Includes item 43)

$95.99

$

In Stock, only 1 left!

0

43

Scag 481548

Grip, Parking Brake

$6.49

$

In Stock, Qty 9

0

44

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

45

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

46

Scag 48343-04

Clevis, Traction Control

$16.99

$

In Stock, only 2 left!

0

47

Scag 04064-02

Pin, Clevis 3/8-16 x 1-1/16"

$1.49

$

In Stock, only 3 left!

0

48

Scag 04061-02

Pin, Cotter 3/32 x .75

$0.99

$

In Stock, Qty 11

0

49

Scag 04004-34

Rod, Parking Brake

$25.99

$

Usually ships in 2-12 days

0

50

Scag 48544

Rod End, LH THD.

$26.99

$

Usually ships in 2-12 days

0

51

Scag 48796

Bushing, Self Align

$12.99

$

Usually ships in 2-12 days

0

52

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-147

Bolt, Hex Head 3/8-24 x 5-1/4", 2-3/4" Thread

$14.99

$

In Stock, Qty 8

0

54

Scag 481637

Switch

$9.99

$

In Stock, Qty 20+

0

55

Scag 04010-12

Screw, Hex SLTD WSHR Head #10-32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

56

Scag 451071

Brake Linkage, LH
(Superseded to 461471)

$363.99

$

Usually ships in 2-12 days

0

Scag 451072

Brake Linkage, RH
(Superseded to 461472)

$363.99

$

Usually ships in 2-12 days

0

57

Scag 45953

Bellcrank, Brake Actuator

$123.99

$

Usually ships in 2-12 days

0

58

Scag 48807

Spring

$32.99

$

Usually ships in 2-12 days

0

59

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 3 left!

0

60

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 5

0

61

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2-1/2"

$1.49

$

Usually ships in 2-12 days

0

62

Scag 481787

Wheel Motor, Ross

$1022.99

$

Usually ships in 2-12 days

0

63

Scag 46929

Wheel Hub Assembly

$173.99

$

In Stock, only 1 left!

0

64

Scag 481601

Brake Band Assembly

$59.99

$

In Stock, only 1 left!

0

65

Scag 04064-03

Pin, Clevis 3/8" Dia. x 2"

$2.99

$

In Stock, only 2 left!

0

66

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0

67

Scag 48513

Brake Drum

$

$

Not available

68

Scag 422487

Spacer, Wheel

$31.99

$

Usually ships in 2-12 days

0

69

Scag 481850

Wheel Assembly 24 x 12-12 Turf Master

$385.99

$

Usually ships in 2-12 days

0

Scag 481851

Rim W/Valve Stem

$138.99

$

In Stock, only 1 left!

0

Scag 481852

Tire, 24 x 12-12 Turf Master

$290.99

$

Usually ships in 2-12 days

0

70

Scag 04028-01

Lug Nut, 1/2-20

$1.49

$

In Stock, Qty 14

0

71

Scag 48680

Nut, Hex Castle

$16.99

$

In Stock, only 3 left!

0

72

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

73

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

74

Scag 422494

Bracket, Switch Mounting

$

$

Not available

75

Scag 422493

Bracket, Switch Actuator
(Superseded to 423057)

$14.99

$

Usually ships in 2-12 days

0

76

Scag 04017-16

Bolt, Hex Serrated Flange 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

77

Scag 04063-25

Key, Woodruff 5/16 x 1"

$2.99

$

In Stock, Qty 10

0
