SMST-72A - Scag Sabre Tooth Tiger 72" Mower Deck (SN: 4870001 - 5589999) Hydraulic Pump Assembly - BDP-21L Parts Diagram

Sabre Tooth Tiger 72" Mower Deck

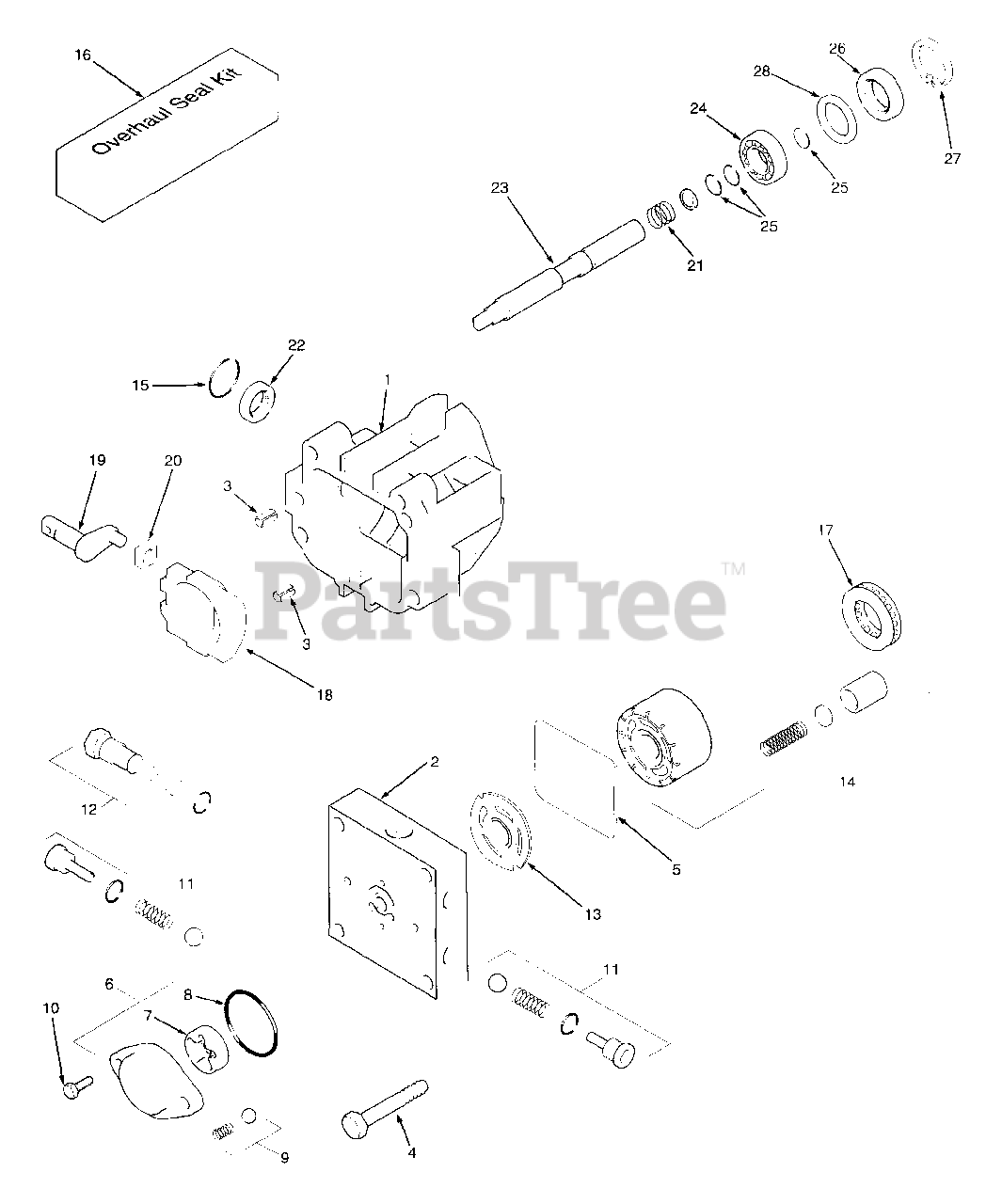

Hydraulic Pump Assembly - BDP-21L Parts Diagram

  • Title

1

Scag HG2510065

Housing Kit

Note: (Includes Housing, Journal Bearing)

$

$

Not available

2

Scag HG2510066

End Cap
(Superseded to HG71770)

$

$

Not available

3

Scag HG50641

Straight Headless Pin

$

$

Not available

4

Scag HG50633

Socket Head Screw

$6.99

$

Usually ships in 2-12 days

0

5

Scag HG50381

End Cap Gasket
(Superseded to HG54020)

$13.99

$

Usually ships in 2-12 days

0

6

Scag HG2510071

Charge Pump Kit

Note: (Includes Charge Cover, Gerotor Assy., O-Ring)

$160.99

$

Usually ships in 2-12 days

0

7

Scag HG50406

Gerotor Assembly

$74.99

$

Usually ships in 2-12 days

0

8

Scag HG9004100-1430

O-Ring

$1.99

$

Usually ships in 2-12 days

0

9

Scag HG70402

Charge Relief Valve Kit

$6.49

$

In Stock, only 1 left!

0

10

Scag HG9007200-3116

Socket Head Screw

$

$

Not available

11

Scag HG2510027

Check Valve Kit

Note: (Includes Check Plug, Spring, O-Ring, Orifice Check Valve)

$44.99

$

Usually ships in 2-12 days

0

12

Scag HG2513030

Bypass Valve Kit

Note: (Includes Bypass Valve, O-Ring, Back-up Ring)

$43.99

$

Usually ships in 2-12 days

0

13

Scag HG50619

Valve Plate

$

$

Not available

14

Scag HG70080

Cylinder Block Kit
(Superseded to HG72159)

$135.99

$

Usually ships in 2-12 days

0

15

Scag HG50574

Trunion Seal Retaining Ring

$

$

Not available

16

Scag HG2510073

Overhaul Kit

$69.99

$

In Stock, only 1 left!

0

17

Scag HG50552

Roller Thrust Bearing

$23.99

$

Usually ships in 2-12 days

0

18

Scag HG50203

Swash Plate

$

$

Not available

19

Scag HG2000014

Trunnion Arm

$

$

Not available

20

Scag HG2000015

Guide Slot

$7.49

$

Usually ships in 2-12 days

0

21

Scag HG2000025

Block Spring

$

$

Not available

22

Scag HG2000037

Lip Seal

$3.49

$

Usually ships in 2-12 days

0

23

Scag HG50601

Pump Shaft

$

$

Not available

24

Scag HG2000032

Ball Bearing

$

$

Not available

25

Scag HG2000038

Retaining Ring

$4.49

$

Usually ships in 2-12 days

0

26

Scag HG51092

Lip Seal

$19.99

$

Usually ships in 2-12 days

0

27

Scag HG2000038

Retaining Ring

$4.49

$

Usually ships in 2-12 days

0

28

Scag HG2000023

Spacer

$2.99

$

Usually ships in 2-12 days

0
