SMST-72A - Scag Sabre Tooth Tiger 72" Mower Deck (SN: 4870001 - 5589999) Electrical System Parts Diagram

Sabre Tooth Tiger 72" Mower Deck

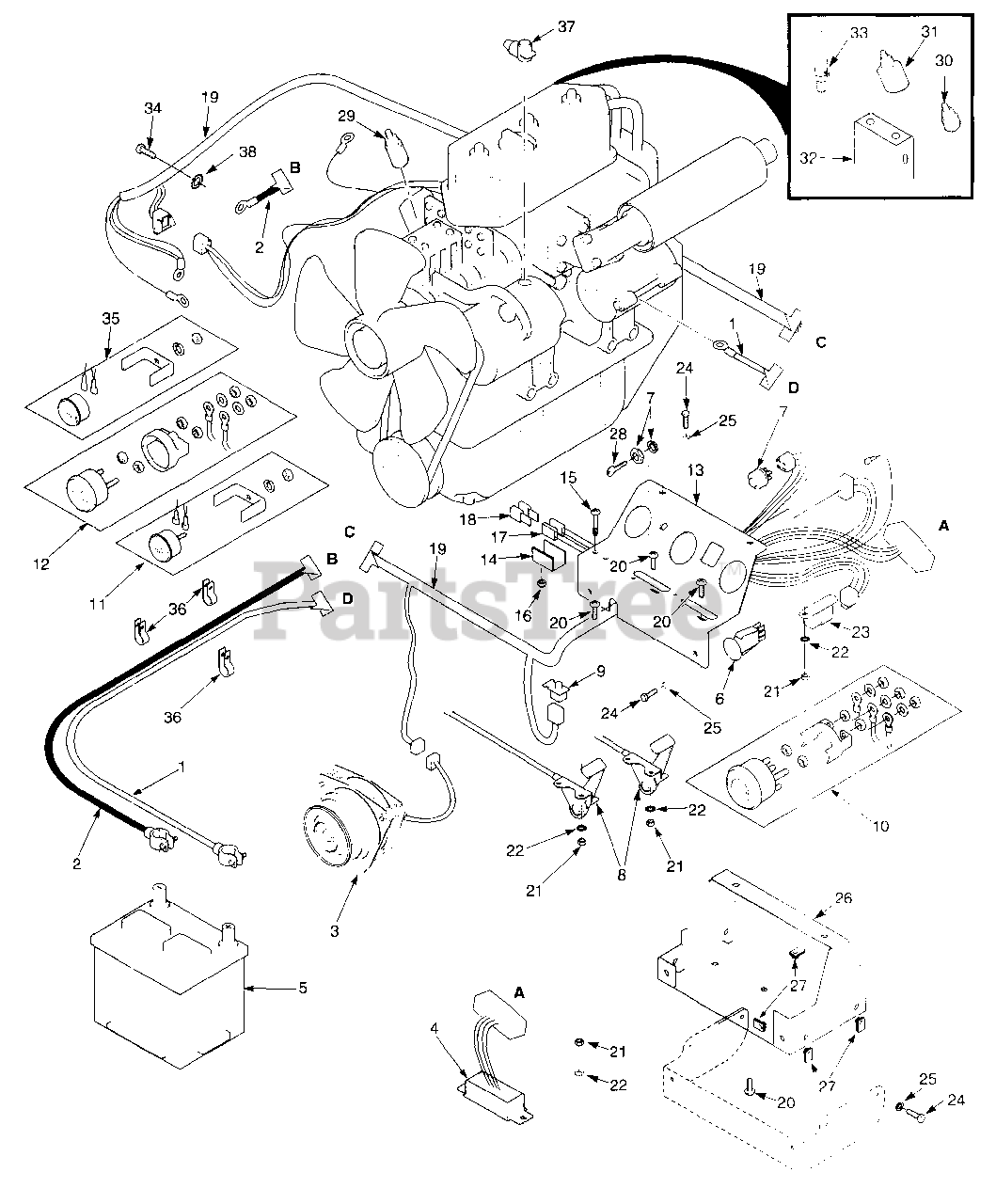

Electrical System Parts Diagram

  • Title

1

Scag 481176-04

Cable, Positive Battery

$38.99

$

Usually ships in 2-12 days

0

2

Scag 481176-03

Cable, Negative Battery

$38.99

$

Usually ships in 2-12 days

0

3

Scag 481790

Clutch, Electric PTO
(Superseded to 461716)

$524.99

$

Usually ships in 2-12 days

0

4

Scag 481808

Module, Interlock
(Superseded to 484054)

$134.99

$

Usually ships in 2-12 days

0

5

Scag 481786

Battery

$

$

Not available

6

Scag 481687

Switch, PTO
(Superseded to 483957)

$37.99

$

In Stock, Qty 20+

0

7

Scag 48798

Switch, Key

Note: (Includes Nut and Lockwasher)

$27.99

$

In Stock, Qty 20+

0

Scag 48017-03

Nut, 5/8-32 Special

$0.99

$

In Stock, Qty 6

0

Scag 48017-04

Lock Washer 5/8"

$1.49

$

In Stock, Qty 5

0

8

Scag 481806

Cable, Control

Note: (Throttle, Choke)

$32.99

$

Usually ships in 2-12 days

0

9

Scag 481638

Switch, Seat

$15.99

$

In Stock, Qty 20+

0

10

Scag 481183

Gauge, Water Temperature

$136.99

$

Usually ships in 2-12 days

0

11

Scag 481805

Gauge, Oil Pressure

$122.99

$

Usually ships in 2-12 days

0

12

Scag 481184

Gauge, Volts

$94.99

$

Usually ships in 2-12 days

0

13

Scag 422524

Panel, Instrument Panel
(Superseded to 461393)

$

$

Not available

14

Scag 42413

Bracket, Fuse Holder

$40.99

$

Usually ships in 2-12 days

0

15

Scag 04010-11

Screw, #10-32 x 1.5" Phillips

$0.99

$

Usually ships in 2-12 days

0

16

Scag 04021-01

Nut, #10-32 Elastic Stop

$0.99

$

In Stock, Qty 10

0

17

Scag 48297

Fuse Holder w/ 20 Amp Fuse

$13.99

$

Usually ships in 2-12 days

0

18

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

19

Scag 481822

Harness, Wiring

$

$

Not available

20

Scag 04010-01

Screw, #10-32 x .5" Phillips

$0.99

$

In Stock, Qty 20+

0

21

Scag 04020-01

Nut, Hex #10-32

$8.99

$

In Stock, Qty 20+

0

22

Scag 04031-01

Lock Washer #10

$0.99

$

In Stock, Qty 20+

0

23

Scag 48788

Relay

$28.99

$

In Stock, only 2 left!

0

24

Scag 04001-01

Bolt, Hex Head 1/4-20 x .75"

$0.99

$

In Stock, Qty 18

0

25

Scag 04030-02

Lock Washer 1/4"

$0.99

$

In Stock, Qty 20+

0

26

Scag 451081

Base, Instrument Panel
(Superseded to 451879)

$112.99

$

Usually ships in 2-12 days

0

27

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

28

Scag 48017-02

Key & Ring Assembly

$3.99

$

In Stock, Qty 9

0

29

Scag 481791

Sender Unit, Water Temperature

$33.99

$

Usually ships in 2-12 days

0

30

Scag 481812

Switch, Low Oil Pressure

$

$

Not available

31

Scag 481811

Sender Unit, Oil Pressure

$241.99

$

Usually ships in 2-12 days

0

32

Scag 481813

Manifold, Oil

$87.99

$

Usually ships in 2-12 days

0

33

Scag 481919

Hose, Oil Pressure Sender

$55.99

$

Usually ships in 2-12 days

0

34

Scag 04002-17

Bolt, Hex Head M8-1.25 x 14

$1.49

$

Usually ships in 2-12 days

0

35

Scag 48023

Hour Meter

$157.99

$

Usually ships in 2-12 days

0

36

Scag 48030-09

Clamp, Cable .5" ID

$1.49

$

In Stock, Qty 5

0

Scag 48030-10

Clamp, Cable .75" ID

$0.99

$

Usually ships in 2-12 days

0

37

Scag 481335

Boot, Positive Battery Terminal

$3.99

$

Usually ships in 2-12 days

0

38

Scag 04031-03

Washer, Star

$0.99

$

Usually ships in 2-12 days

0
