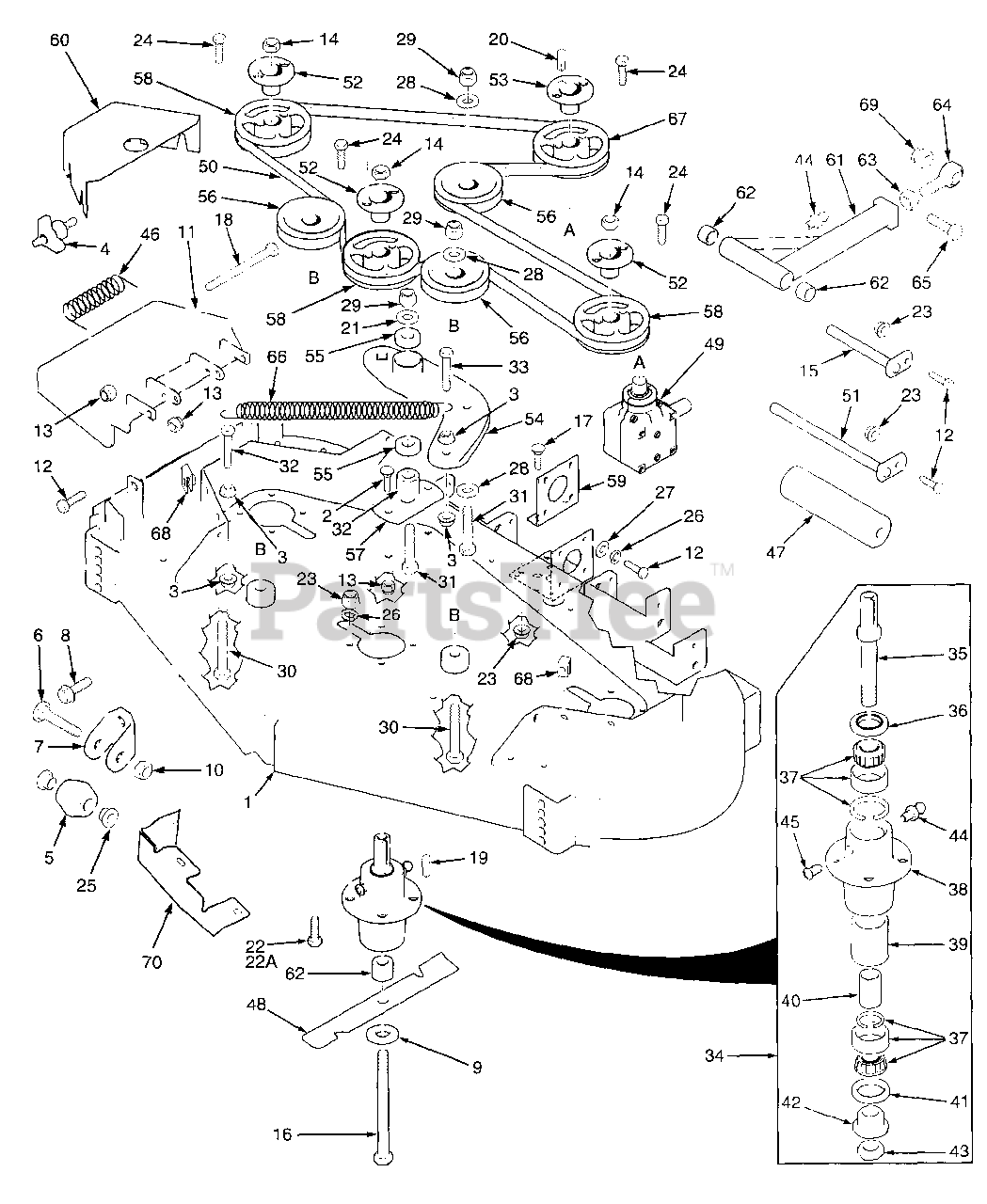

SMST-72A - Scag Sabre Tooth Tiger 72" Mower Deck (SN: 4870001 - 5589999) Cutter Deck Parts Diagram

Sabre Tooth Tiger 72" Mower Deck

Cutter Deck Parts Diagram

  • Title

1

Scag 461267

Cutter Deck, 61"

Note: (Includes Decals)

$1333.99

$

Usually ships in 2-12 days

0

1

Scag 461268

Cutter Deck, 61" Advantage
(Superseded to 461657K)

Note: (Includes Decals)

$1960.99

$

Usually ships in 2-12 days

0

1

Scag 461144

Cutter Deck, 72"

Note: (Includes Decals)

$2769.99

$

Usually ships in 2-12 days

0

1

Scag 461148

Cutter Deck, 72" Advantage
(Superseded to 461659K)

Note: (Includes Decals)

$2058.99

$

Usually ships in 2-12 days

0

2

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

3

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

5

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

0

6

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

7

Scag 422478

Anti-Scalp Wheel Bracket

$28.99

$

In Stock, Qty 20+

0

8

Scag 04017-27

Bolt, Hex Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04040-10

Flatwasher, 5/8" (.688 x 1.75 x .134)

$0.99

$

In Stock, Qty 11

0

10

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

11

Scag 461292

Discharge Chute, 61" & 72"

$70.99

$

In Stock, only 2 left!

0

Scag 461296

Discharge Chute, 61" & 72" Adv.

Note: (Not Shown)

$70.99

$

In Stock, only 2 left!

0

12

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1.75"

Note: (Front)

$0.99

$

In Stock, Qty 20+

0

04001.11

Bolt, Hex Head 5/16-18 x 1.5"

Note: (Rear)

$

$

Not available

13

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

15

Scag 45332

Push Arm Shaft
(Superseded to 451240)

$53.99

$

In Stock, Qty 20+

0

16

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9.5"

$15.99

$

In Stock, Qty 20+

0

17

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

19

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

20

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

21

Scag 04043-04

Flatwasher, 3/8-.39 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1.5"

$0.99

$

In Stock, Qty 6

0

22A

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1.75"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04021-10

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-01

Bolt, Hex Head 1/2-20 x .75"

$0.99

$

In Stock, Qty 18

0

25

Scag 48100-15

Bushing, .376 I.D. Oilite

$4.99

$

In Stock, Qty 20+

0

26

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-15

Flatwasher, 5/16" (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

28

Scag 04041-07

Flatwasher, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 15

0

31

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2.5"

$0.99

$

In Stock, Qty 20+

0

32

Scag 43503

Pivot, Idler - Short

$27.99

$

In Stock, Qty 19

0

33

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1.5" Grade 8

$0.99

$

In Stock, Qty 20+

0

34

Scag 46631

Spindle Assembly
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

35

Scag 43298

Spindle Shaft
(Superseded to 43589)

$59.99

$

In Stock, only 1 left!

0

36

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 20+

0

37

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

38

Scag 43294

Spindle Housing
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

39

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

40

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

41

Scag 481025

Seal, Bottom

$4.99

$

In Stock, Qty 20+

0

42

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

43

Scag 481035

Nut, Special 1-1/16 - 18

$7.99

$

In Stock, only 3 left!

0

44

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

45

Scag 48677

Relief Fitting, Tapered Spindle

$9.49

$

Usually ships in 2-12 days

0

46

Scag 481050

Spring, Discharge Chute
(Superseded to 482245)

$11.99

$

In Stock, Qty 5

0

47

Scag 48038

Guide, Roller

$29.99

$

In Stock, only 2 left!

0

48

Scag 482001

Cutter Blade, 21.0" 61"
(Superseded to 482881)

$32.99

$

In Stock, Qty 20+

0

48

Scag 482002

Cutter Blade, 24.5" 72"
(Superseded to 482882)

$34.99

$

In Stock, Qty 20+

0

49

Scag 481516

Gearbox Assembly, Deck Drive
(Superseded to 482486)

$704.99

$

In Stock, only 1 left!

0

50

Scag 481558

Belt, Cutter Deck Drive, 61"

$98.99

$

In Stock, Qty 12

0

50

Scag 481980

Belt, Cutter Deck Drive, 72"

$111.99

$

In Stock, only 4 left!

0

51

Scag 45944

Roller Shaft

$22.99

$

In Stock, Qty 20+

0

52

Scag 48926

Tapered Hub. 1.125" Bore

$31.99

$

In Stock, Qty 20+

0

53

Scag 48141

Tapered Hub, 1" Bore

$30.99

$

In Stock, only 1 left!

0

54

Scag 461174

Idler Arm, Cutter Deck

$97.99

$

In Stock, only 1 left!

0

55

Scag 48224

Bearings, Ball

$13.99

$

In Stock, Qty 20+

0

56

Scag 48269

Pulley, Idler
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

57

Scag 422713

Base, idler Pivot

$14.99

$

In Stock, only 1 left!

0

58

Scag 48753

Pulley, 6.35 O.D. - 61"
(Superseded to 482745)

$31.99

$

In Stock, Qty 9

0

Scag 48967

Pulley, 6.95 O.D. - 72"
(Superseded to 482747)

$36.99

$

In Stock, only 1 left!

0

59

Scag 422426

Mounting Plate. Gearbox

$52.99

$

Usually ships in 2-12 days

0

60

Scag 422413

Belt Cover, LH - 61"

$79.99

$

Usually ships in 2-12 days

0

Scag 422677

Belt Cover, LH - 72"

$54.99

$

In Stock, only 1 left!

0

Scag 422413

Belt Cover RH - 61"

$79.99

$

Usually ships in 2-12 days

0

Scag 422708

Belt Cover, RH - 72"

$59.99

$

In Stock, only 1 left!

0

61

Scag 461036

Pusharm
(Superseded to 461516)

Note: (Includes items 44, 62, 63 & 64)

$216.99

$

In Stock, only 2 left!

0

62

Scag 43309

Spacer, Spindle
(Superseded to 43590)

$17.99

$

In Stock, Qty 20+

0

63

Scag 04020-16

Nut, Hex Head 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

64

Scag 48763

Rod End, 5/8" Male RH Thread

$59.99

$

In Stock, Qty 6

0

65

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4.5"

$4.99

$

In Stock, Qty 10

0

66

Scag 481597

Spring, Cutter Deck
(Superseded to 483704)

$29.99

$

In Stock, Qty 20+

0

67

Scag 48753

Pulley, 6.35 O.D. - 61"
(Superseded to 482745)

$31.99

$

In Stock, Qty 9

0

Scag 48924

Pulley, 5.75 O.D. - 72"
(Superseded to 482744)

$30.99

$

In Stock, only 1 left!

0

68

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

69

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

70

Scag 422601

Discharge Baffle 61"
(Superseded to 423957)

$77.99

$

Usually ships in 2-12 days

0

Scag 422602

Discharge Baffle 72"
(Superseded to 423958)

$63.99

$

Usually ships in 2-12 days

0
