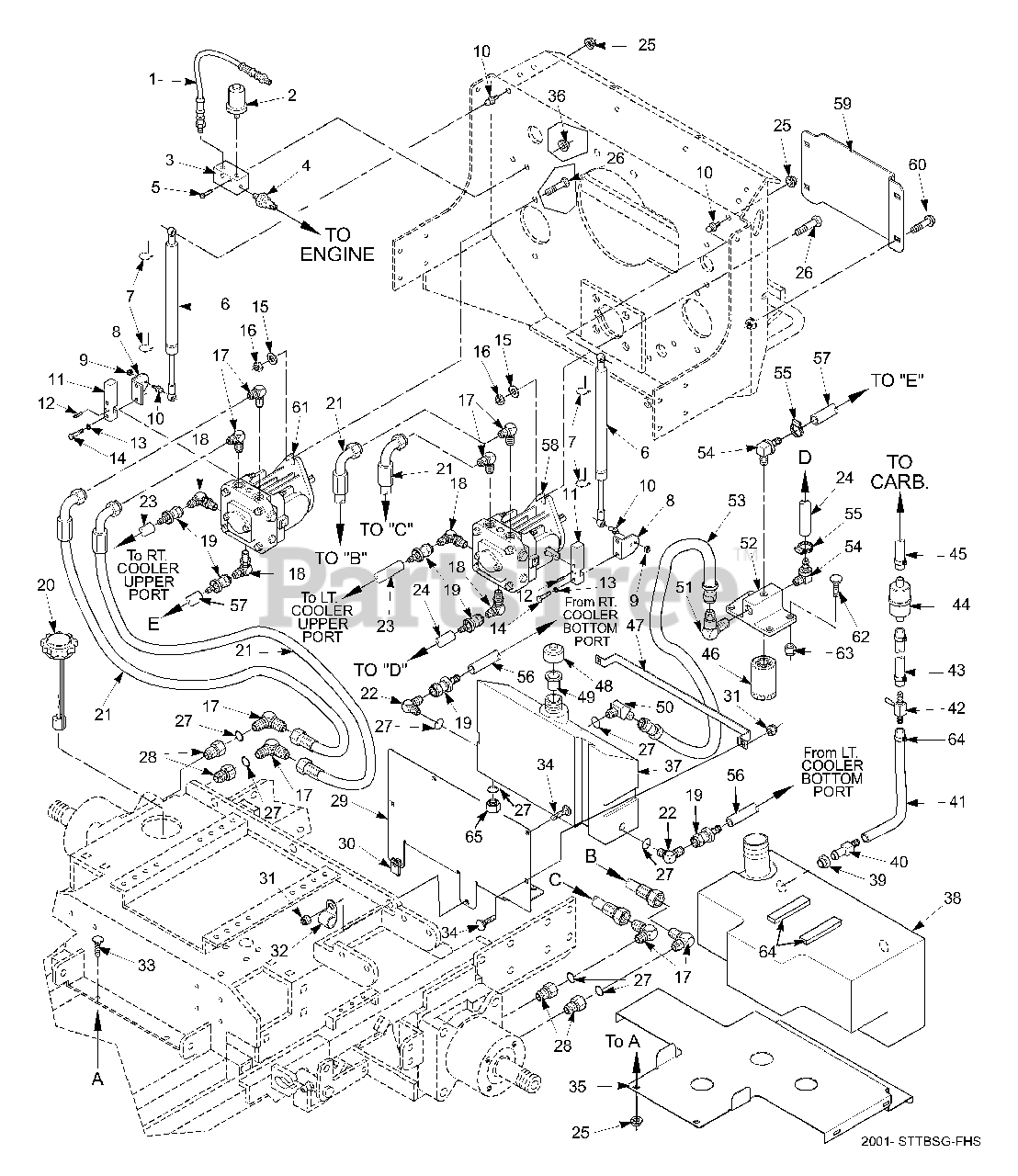

SMST-61A - Scag Sabre Tooth Tiger 61" Mower Deck (SN: 6850001 - 6859999) Fuel And Hydraulic System Parts Diagram

Sabre Tooth Tiger 61" Mower Deck

Fuel And Hydraulic System Parts Diagram

  • Title

1

Scag 481919

Hose, Oil Pressure Sender

$57.99

$

Usually ships in 2-12 days

0

2

Scag 481811

Oil Pressure Sender

$247.99

$

Usually ships in 2-12 days

0

3

Scag 481813

Oil Manifold

$89.99

$

Usually ships in 2-12 days

0

4

Scag 481812

Switch, Low Oil Pressure

$27.99

$

Usually ships in 2-12 days

0

5

Scag 04001-03

Bolt, Hex Head 1/4-20 x 2"

$0.99

$

In Stock, Qty 8

0

6

Scag 461090

Gas Damper

Note: (Includes items 7 & 10)

$134.99

$

Usually ships in 2-12 days

0

7

Scag 481357

Spring Clip

$1.49

$

Usually ships in 2-12 days

0

8

Scag 422826

Clamp Plate, Pump Control

$155.99

$

Usually ships in 2-12 days

0

9

Scag 04021-04

Locknut, 5/16-18 CTR

$0.99

$

In Stock, Qty 20+

0

10

Scag 481356

Ball Stud

$4.99

$

Usually ships in 2-12 days

0

11

Scag 481793

Block, Pump Control

$56.99

$

Usually ships in 2-12 days

0

12

Scag 04060-09

Pin, Spring .210 x 1.0"

$1.49

$

In Stock, only 3 left!

0

13

Scag 04030-02

Lockwasher, 1/4 Spring

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-04

Bolt, Hex Head 1/4-20 x 1.50"

$0.99

$

In Stock, Qty 14

0

15

Scag 04040-07

Flatwasher, 1/2 (.531 x .062 x .095)

$0.99

$

In Stock, Qty 5

0

16

Scag 04021-07

Nut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

17

Scag 48350-05

Elbow, 90 Degree, 7/8-14 THD

$32.99

$

Usually ships in 2-12 days

0

18

Scag 48350-02

Elbow, 90 Degree,3/4-16 THD

$26.99

$

Usually ships in 2-12 days

0

19

Scag 48353-07

Coupling, 3/4-16 THD

$14.99

$

Usually ships in 2-12 days

0

20

Scag 481661

Cap, Fuel Tank W/Gauge
(Superseded to 483790)

$61.99

$

In Stock, only 1 left!

0

21

Scag 481740

Hose Assembly, Wheel Motor
(Superseded to 482516)

$140.99

$

Usually ships in 2-12 days

0

22

Scag 48350-09

Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring

$25.99

$

In Stock, only 1 left!

0

23

Scag 48811

Hose, 3/8" ID. Pushlock - 25.0"

Note: (Order by the inch)

$0.99

$

In Stock, Qty 20+

0

24

Scag 48811

Hose, 3/8" ID. Pushlock - 10.25"

Note: (Order by the inch)

$0.99

$

In Stock, Qty 20+

0

25

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-03

Bolt, Hex Head 1/4-20 x 2.0"

$0.99

$

In Stock, Qty 8

0

27

Scag 48603-02

O-Ring

$3.49

$

In Stock, only 3 left!

0

28

Scag 48938-02

Bushing, 7/8-14 JIC x 3/4-16 O-Ring

$15.99

$

Usually ships in 2-12 days

0

29

Scag 422354

Support Bracket, Hydraulic Tank

$115.99

$

Usually ships in 2-12 days

0

30

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

31

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

32

Scag 48030-09

Hose Clamp

$1.49

$

In Stock, Qty 6

0

33

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

34

Scag 04003-06

Bolt, Carriage 1/4-20 x 1.0"

$0.99

$

In Stock, Qty 6

0

35

Scag 422353

Support Bracket, Fuel Tank

$193.99

$

Usually ships in 2-12 days

0

36

Scag 04019-02

Nut, Hex 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

37

Scag 46978

Oil Reservior Assembly

$282.99

$

Usually ships in 2-12 days

0

38

Scag 46974

Fuel Tank Assembly

Note: (Includes items 48 & 49)

$

$

Not available

39

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

40

Scag 481602

Hose Fitting

$7.99

$

In Stock, only 1 left!

0

41

Scag 48058

Fuel Hose, 1/4" ID. - 10"
(Superseded to 483617)

Note: (Order by the inch)

$0.99

$

In Stock, Qty 20+

0

42

Scag 48568

Valve, Shutoff

$27.99

$

Usually ships in 2-12 days

0

43

Scag 48058

Fuel Hose, 1/4" ID. - 2"
(Superseded to 483617)

Note: (Order by the inch)

$0.99

$

In Stock, Qty 20+

0

44

Fuel Filter

Note: (Purchase from Briggs & Stratton)

$

$

Not available

45

Fuel Hose To Carb.

Note: (Purchase from B & S)

$

$

Not available

46

Scag 48758

Oil Filter

$27.99

$

In Stock, Qty 20+

0

47

Scag 421208

Strap, Hydraulic Tank

$31.99

$

Usually ships in 2-12 days

0

48

Scag 481164

Cap, Hydraulic Tank

$18.99

$

In Stock, Qty 8

0

49

Scag 481507

Insert, Filler Neck

$13.99

$

Usually ships in 2-12 days

0

50

Scag 48573-02

Elbow, 45 Degree 3/4-16 JIC x 3/4-16 O-Ring

$25.99

$

In Stock, only 2 left!

0

51

Scag 48573-02

Elbow, 45 Degree 1/2 NPT x 3/4 JIC

$25.99

$

In Stock, only 2 left!

0

52

Scag 48471-02

Oil Filter Base

$108.99

$

Usually ships in 2-12 days

0

53

Scag 482088

Hose Assembly, (Hydro Tank to Filter Base)

$47.99

$

In Stock, only 1 left!

0

54

Scag 481301-03

Elbow, 90 Degree-1/4 NPT x 3/8 Hose

$10.99

$

In Stock, only 2 left!

0

55

Scag 48136-07

Clamp, Hose 1/2"

$

$

Not available

56

Scag 48811

Hose, 3/8 ID. Pushlock - 14.50"

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

57

Scag 48811

Hose, 3/8 ID. Pushlock - 38.0"

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

58

Scag 481792

Pump, BDP-21L-305 LH

$2035.99

$

Usually ships in 2-12 days

0

59

Scag 422475

Rear Cover

$31.99

$

Usually ships in 2-12 days

0

60

Scag 04003-12

Bolt, Carriage 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

61

Scag 481819

Pump, BDP-21L-403 RH

$2087.99

$

Usually ships in 2-12 days

0

62

Scag 04003-04

Bolt, Carriage 5/16-18 x 1.0"

$0.99

$

In Stock, Qty 9

0

63

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

64

Scag 48657

Pad, Rubber

$5.99

$

Usually ships in 2-12 days

0

65

Scag 48604-02

Plug, 3/4-16" O" Ring

$9.49

$

Usually ships in 2-12 days

0
