SMS-50 - Toro 50" Sickle Bar Mower Attachment (1963) SIDE MOUNTED SICKLE SMS-50 Parts Diagram

50" Sickle Bar Mower Attachment

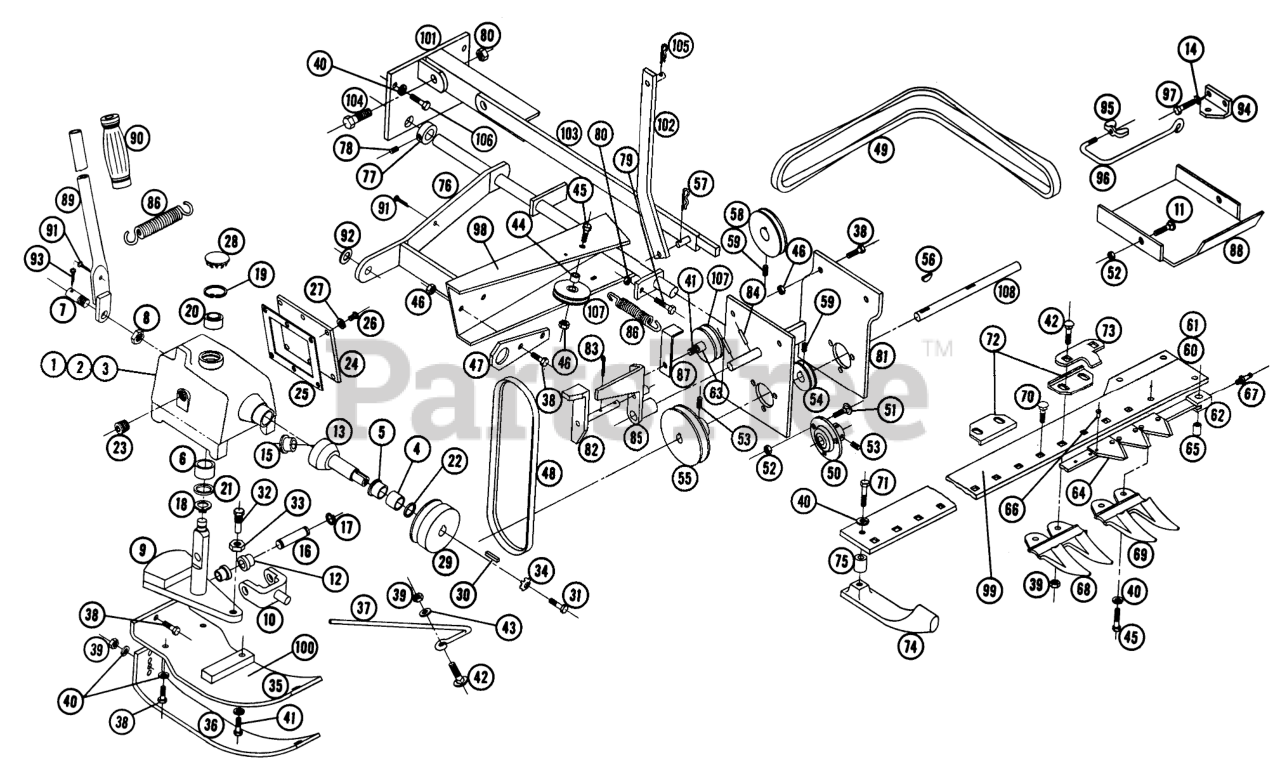

SIDE MOUNTED SICKLE SMS-50 Parts Diagram

  • Title

1

Toro 5041

Ass-y Housing Complete-Sickle Drive

$

$

Currently unavailable

2

Toro 2701

Ass-y Housings & Bearings

$

$

Currently unavailable

3

Toro 2644

Housing

$

$

Currently unavailable

4

Toro 2694

Bearing-Bronze Sleeve

$

$

Not available

5

Toro 2692

Bearing-Bronze Sleeve

$

$

Not available

6

Toro 2695

Bearing-Bronze Sleeve

$

$

Currently unavailable

7

Toro 2655

Pin

$

$

Currently unavailable

8

Toro 915090-4

Nut, 3/4-16

$

$

Currently unavailable

9

Toro 2683

Ass-y. Shaft-Weldment

$

$

Currently unavailable

10

Toro 2687

Ass-y. Yoke

$

$

Currently unavailable

11

Toro 900038-4

Bolt-Car. 5/16-18 x 1

$

$

Currently unavailable

12

Toro 2686

Bearing-Bronze Sleeve

$

$

Not available

13

Toro 2702

Ass-y. Shaft & Bearing

$

$

Currently unavailable

14

Toro 9200824

Washer-Lock
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

15

Toro 2693

Bearing-Bronze Sleeve

$

$

Currently unavailable

16

Toro 2691

Pin Yoke

$

$

Not available

17

Toro S-50-62

Snap Ring - Truarc .625 Shaft

$

$

Currently unavailable

18

Toro S-50-66

Snap Ring - Truarc .669 Shaft

$

$

Currently unavailable

19

Toro S-51-156

Snap Ring - Truarc 1.562 Bore

$

$

Currently unavailable

20

Toro 1499

Bearing - Ball .687 Shaft

$

$

Not available

21

Toro 1482

Seal 1 1/4 I.D.
(Superseded to 103118)

$21.99

$

In Stock, Qty 6

0

22

Toro 1232

Seal
(Superseded to 100863)

$16.99

$

In Stock, only 4 left!

0

23

Toro 943464-4

Plug 1 x 11 1/2 N.P.T.F.

$

$

Currently unavailable

24

Toro 2657

Cover Plate

$

$

Currently unavailable

25

Toro 2656

Gasket

$

$

Not available

26

Toro 909017-4

Screw-Rd. Hd. #10-24 x 3/8

$

$

Currently unavailable

27

Toro 920079-4

Lockwasher #10

$

$

Currently unavailable

28

Toro 935135-4

Plug Button

$

$

Currently unavailable

29

Toro 2659

Pulley 4 Dia.

$

$

Not available

30

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.99

$

In Stock, only 3 left!

0

31

Toro 1398

Screw - Nylock 3/8-16 x 7/8

$

$

Currently unavailable

32

Toro 2680

Pin Sickle Drive

$

$

Currently unavailable

33

Toro 915089-4

Nut-5/8-18

$

$

Currently unavailable

34

Toro 1336

WASHER

$

$

Not available

35

Toro 2643

Ass y. Shoe-Upper-Weldment

$

$

Currently unavailable

36

Toro 2677

Shoe-Lower

$

$

Currently unavailable

37

Toro 2685

Rod-Grass

$

$

Not available

38

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

39

Toro 915113-4

Nut

$

$

Currently unavailable

40

Toro 920083-4

Lockwasher

$

$

Currently unavailable

41

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

42

Toro 900064-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

43

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

44

Toro 1967

SPACER

$

$

Not available

45

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

46

Toro 915113-6

Nut

$

$

Currently unavailable

47

Toro 1966

Link

$

$

Currently unavailable

48

Toro 1552

Belt "A" Sec. 37"

$

$

Not available

49

Toro 1S88

Belt "A" Sec. 59"

$

$

Currently unavailable

50

Toro 1968

Bearing-Flanged Ball
(Superseded to 107743)

$178.99

$

Usually ships in 3-6 days

0

51

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

52

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

53

Toro 909862-4

Set Screw 5/16-18 x 5/16

$

$

Currently unavailable

54

Toro 1608

Pulley

$

$

Not available

55

Toro 1969

Pulley

$

$

Currently unavailable

56

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

57

Toro S-52-12

Hairpin

$

$

Currently unavailable

58

Toro 3694

Pulley - Engine Drive

$

$

Not available

59

Toro 909848-4

Set Screw 1/4-20

$

$

Currently unavailable

60

Toro 5043

Ass-y. Cutter Bar Complete

$

$

Currently unavailable

61

Toro 2704

Ass-y. Bar Guard

$

$

Currently unavailable

62

Toro 2697

Ass-y. Knife Bar & Sections

$

$

Not available

63

Toro 2233

Spacer

$

$

Not available

64

Toro 2236

Section

$

$

Currently unavailable

65

Toro 1498

Bushing

$

$

Currently unavailable

66

Toro 1071

Rivet

$

$

Currently unavailable

67

Toro 1030

Zerk

$

$

Not available

68

Toro 2230

Twin Guard

$

$

Not available

69

Toro 2684

Guard Cutter Bar

$

$

Not available

70

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

71

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

72

Toro 2231

Wear Plates

$

$

Currently unavailable

73

Toro 2232

Clip, Hold Down

$

$

Not available

74

Toro 2234

Skid

$

$

Not available

75

Toro 2233

Spacer

$

$

Not available

76

Toro 3384

Ass-y. Frame

$

$

Currently unavailable

77

Toro 3374

Collar

$

$

Currently unavailable

78

Toro 909863-4

Set Screw 5/16-18 x 3/8 Hex. Soc.

$

$

Currently unavailable

79

Toro 908064-4

Bolt-Hex. 1/2-13 x 2 3/4

$

$

Currently unavailable

80

Toro 9151

"V" Belt-Drive

$

$

Not available

81

Toro 3388

Ass-y. Shaft Support

$

$

Not available

82

Toro 3380

Ass-y. Lever

$

$

Currently unavailable

83

Toro 932009-4

Hairpin

$

$

Currently unavailable

84

Toro 933188-4

Roll Pin 3/16 x 1

$

$

Currently unavailable

85

Toro 3381

Pedal

$

$

Currently unavailable

86

Toro 1014

Spring

$

$

Not available

87

Toro 3760

Clip - Belt

$

$

Not available

88

Toro 3389

Shield - Pulley
(Superseded to 701849)

$58.99

$

Usually ships in 3-6 days

0

89

Toro 2678

Ass-y. Lever Lift

$

$

Currently unavailable

90

Toro 1000

Grip
(Superseded to 6542)

$16.99

$

Usually ships in 3-6 days

0

91

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

92

Toro 920015-4

Washer

$

$

Currently unavailable

93

Toro 932034-4

Cotter Pin 3/16 x 1

$

$

Currently unavailable

94

Toro 2700

Bracket-Travel Hook

$

$

Currently unavailable

95

Toro 915586-4

3/8 NC Wing Nut

$

$

Currently unavailable

96

Toro 3378

Hook - Travel Support

$

$

Currently unavailable

97

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

98

Toro 4410

Decal
(Superseded to 102832)

$

$

Not available

99

Toro 4411

Decal
(Superseded to 83-3410)

$

$

Not available

100

Toro 3710

Decal

$

$

Currently unavailable

101

Toro 3391

Ass-y. Plate - Mounting

$

$

Currently unavailable

102

Toro 3390

Ass-y. Bar - Lift
(Superseded to 701850)

$58.99

$

Usually ships in 3-6 days

0

103

Toro 4739

Ass-y. Bar and Pin - Lower

$

$

Currently unavailable

104

Toro 908059-4

Bolt Hex 1/2-13 x 1 1/2

$

$

Currently unavailable

105

Toro S-52-3

Hairpin

$

$

Currently unavailable

106

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

107

Toro 1623

Pulley
(Superseded to 92-7102)

$71.99

$

In Stock, only 1 left!

0

108

Toro 3376

Shaft

$

$

Currently unavailable
