SMISPVH 21775 E (7800548) - Simplicity 21" Walk-Behind Mower, 7hp Transmission (4058_tra-7501852) Parts Diagram

21" Walk-Behind Mower, 7hp

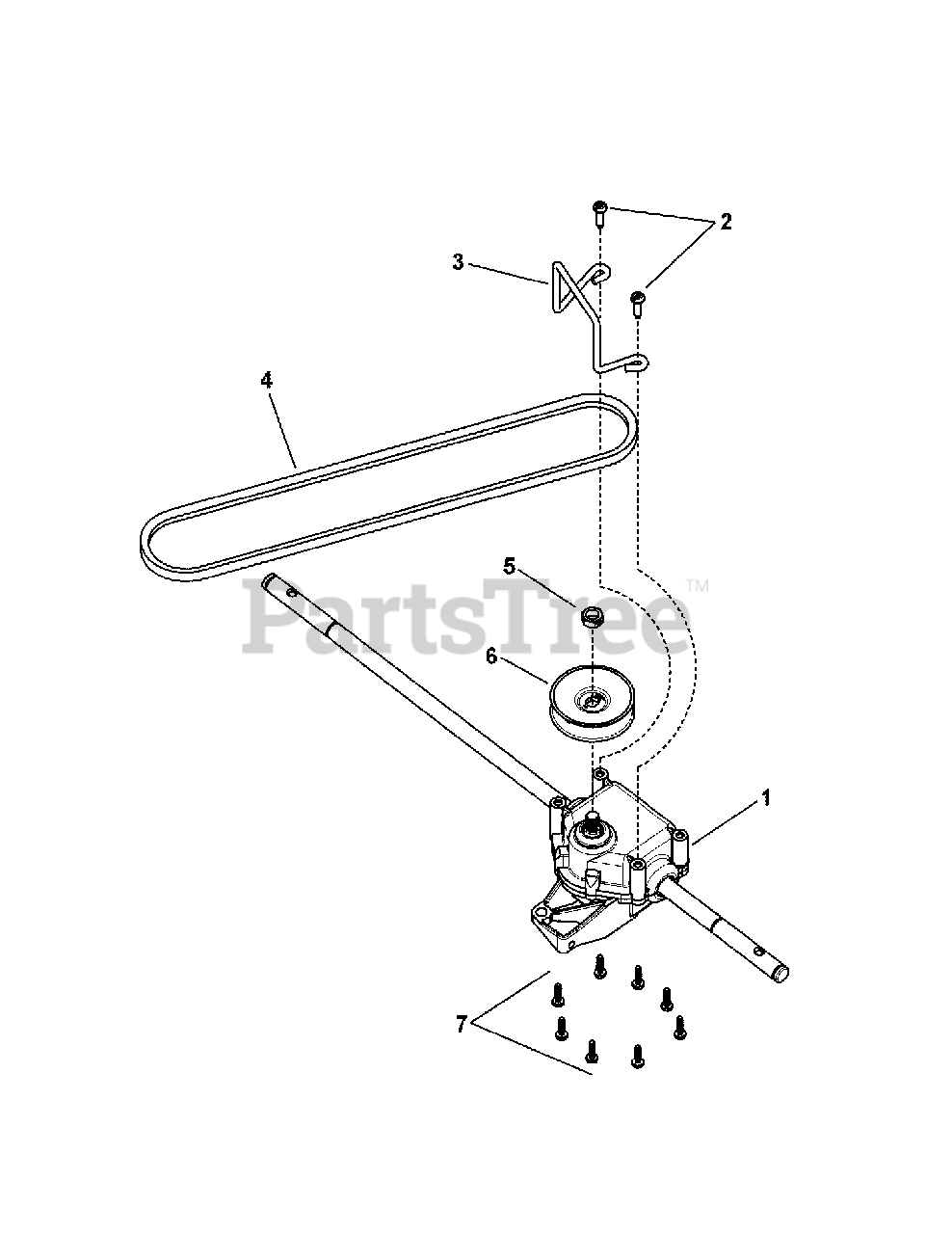

Transmission (4058_tra-7501852) Parts Diagram

  • Title
1

Simplicity 7101245YP

TRANSMISSION, 21" WBM, RD, Snapper

$

$

Not available

2

Simplicity 7091195SM

SCREW, #10-16 x 3/4" Pan Head Self-Tap, Combo

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 7100863YP

BELT GUIDE, Transmission

$6.49

$

Usually ships in 2-12 days

0

4

Simplicity 7100883YP

BELT, Traction Drive, 21" Pivot Handle

Note: Section 3L, 32.86 effective length

$20.99

$

In Stock, only 1 left!

0

5

Simplicity 703347

NUT, 3/8-16 Hex Center Lock, GR5

$4.99

$

In Stock, only 2 left!

0

6

Simplicity 7100240YP

PULLEY, Trans Var Speed, LC WBM

$23.99

$

Usually ships in 2-12 days

0

7

Simplicity 7900032YP

SCREW, 7mm x 1 x .550 AB Point

$4.49

$

In Stock, only 1 left!

0
