SMILSPVH 21875 (7800572) - Simplicity 21" Walk-Behind Mower, 8.75hp Front & Rear Wheels Parts Diagram

21" Walk-Behind Mower, 8.75hp

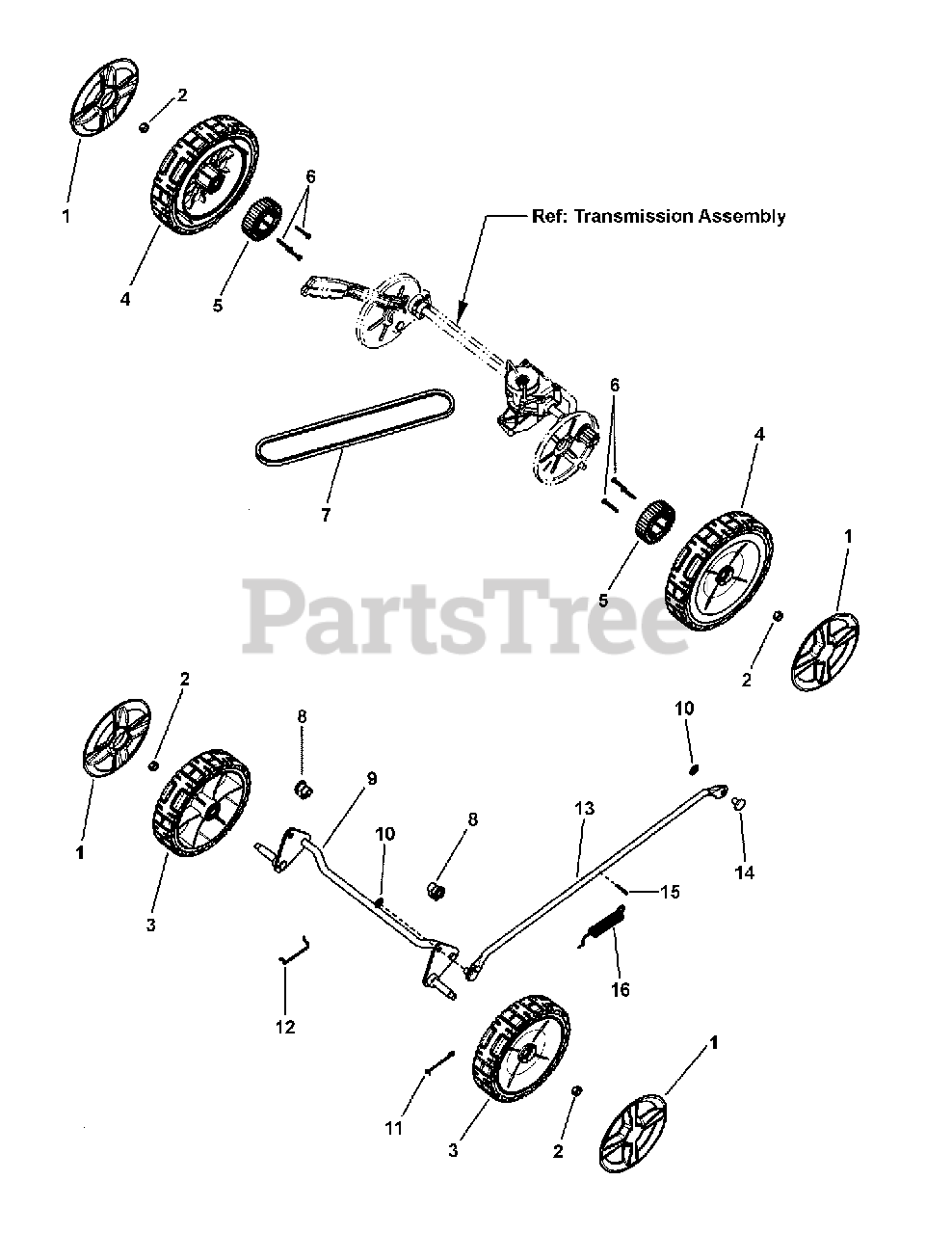

Front & Rear Wheels Parts Diagram

  • Title

1

Simplicity 7101350

HUBCAP, 8" & 9" Wheel Spoked Cool Gray
(Superseded to 7101350YP)

$10.99

$

In Stock, Qty 20+

0

2

Simplicity 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

3

Simplicity 7500540

ASSY, Wheel, 8 x 2 Idle, Charcoal Gray
(Superseded to 7500540YP)

Note: incl. 1-1/8" OD Flange Ball Bearing (p/n 7101380) qty. 2

$40.99

$

In Stock, only 2 left!

0

4

Simplicity 7500647

ASSY, 9" Wheel & Bearing, Charcoal Gray
(Superseded to 7500647YP)

Note: incl. 1-1/8" OD Flange Ball Bearing (p/n 7101380) qty. 2

$49.99

$

In Stock, only 1 left!

0

5

Simplicity 7100914

GEAR, External Wheel
(Superseded to 7100914YP)

$10.99

$

Usually ships in 2-12 days

0

6

Simplicity 7091196

SCREW, #8 x 1-1/4, Hex Washer Self-Tap (Hi-Lo)
(Superseded to 7091196SM)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 7100883

BELT, Traction Drive
(Superseded to 7100883YP)

Note: 3L Section, 32.86 effective length

$20.99

$

In Stock, only 1 left!

0

8

Simplicity 7024558

BUSHING, Front Axle
(Superseded to 7024558YP)

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 7400285A

WELDMENT, Front Axle
(Superseded to 7400285AYP)

$87.99

$

Usually ships in 2-12 days

0

10

Simplicity 7013946

WHEEL RETAINER, 3/8
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 7034340

SPRING, Axle Retaining, LH
(Superseded to 7034340YP)

$7.49

$

Usually ships in 2-12 days

0

12

Simplicity 7034341

SPRING, Axle Retaining, RH
(Superseded to 7034341YP)

$8.99

$

Usually ships in 2-12 days

0

13

Simplicity 7041364A

WELDMENT, Tie Bar
(Superseded to 7041364AYP)

$119.99

$

Usually ships in 2-12 days

0

14

Simplicity 7091232

PIN, 3/8" X 5/8"
(Superseded to 7091232YP)

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 7090365

COTTER PIN, 1/8 x 3/4
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

16

Simplicity 7024751

SPRING, Tie Bar
(Superseded to 7024751YP)

$12.99

$

Usually ships in 2-12 days

0
