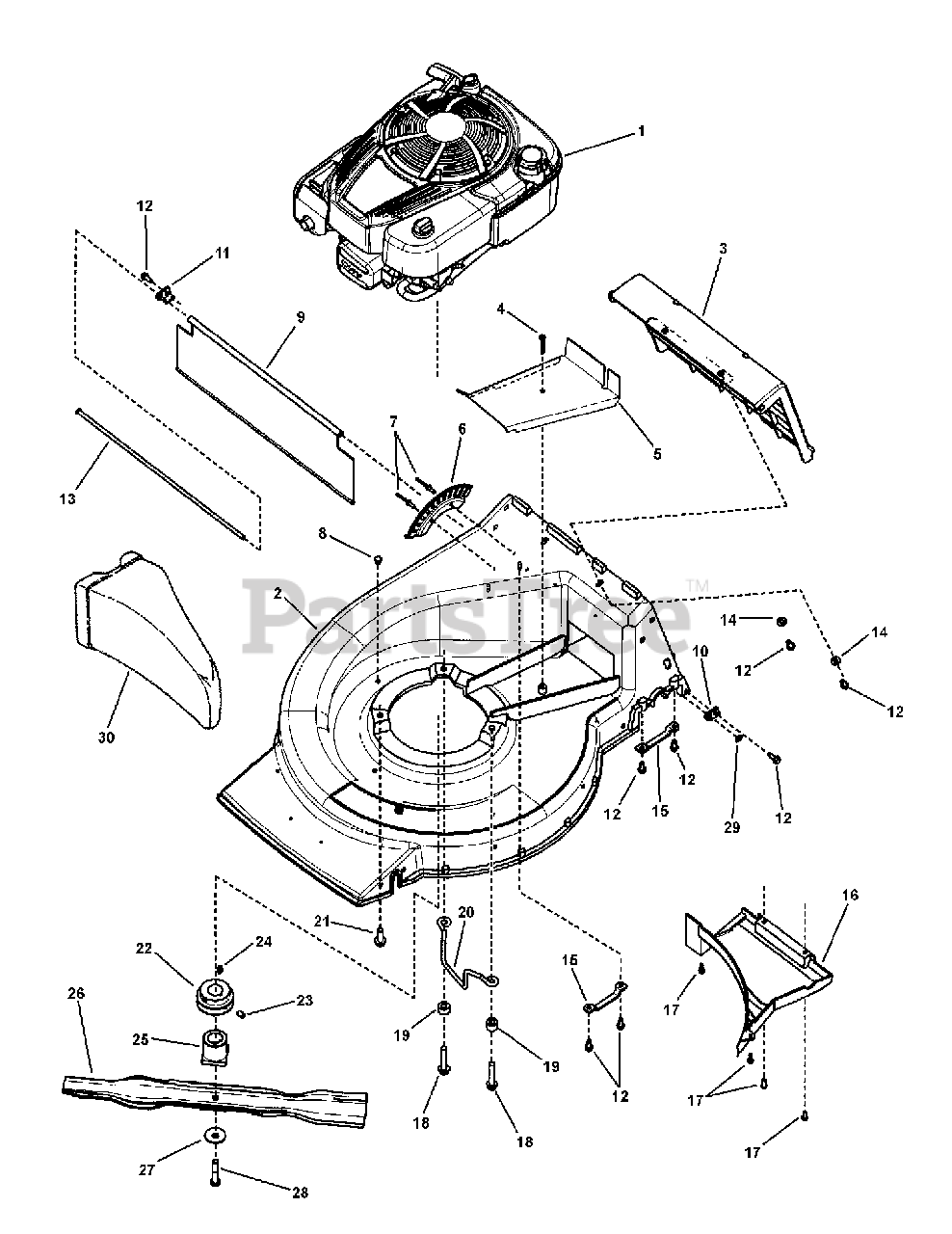

SMILSPVH 21875 (7800572) - Simplicity 21" Walk-Behind Mower, 8.75hp Engine, Cutting Deck & Blade Parts Diagram

21" Walk-Behind Mower, 8.75hp

Engine, Cutting Deck & Blade Parts Diagram

  • Title

1

Simplicity 129S902-0129-B1

* ENGINE, Briggs & Stratton, W14, 875 Series

$

$

Not available

2

Simplicity 7073626C

DECK, 21" Cast Aluminum
(Superseded to 7073626CYP)

$883.99

$

Usually ships in 2-12 days

0

3

Simplicity 7052881

ASSY, Discharge Door
(Superseded to 7052881YP)

$75.99

$

In Stock, only 1 left!

0

4

Simplicity 7091201

SCREW, #10-24 x 1-1/2" Slotted Hex Washer Head Self-Tap
(Superseded to 7091201YP)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 7301034C

BELT COVER, Cast Deck
(Superseded to 7301034CYP)

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 7033752

PLATE, Height Adjust
(Superseded to 7033752YP)

$23.99

$

Usually ships in 2-12 days

0

7

Simplicity 7091191

RIVET, 3/16" x 1/2" Steel
(Superseded to 7091191YP)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 7073293

HOLE PLUG (Polyethylene)
(Superseded to 7073293YP)

$2.99

$

Usually ships in 2-12 days

0

9

Simplicity 7043870

SHIELD, Trailing, Commercial Cast
(Superseded to 7043870YP)

$28.99

$

Usually ships in 2-12 days

0

10

Simplicity 7043836

BRACKET, LH Trailing Shield Rod
(Superseded to 7043836YP)

$20.99

$

Usually ships in 2-12 days

0

11

Simplicity 7043835

BRACKET, RH Trailing Shield Rod
(Superseded to 7043835YP)

$18.99

$

Usually ships in 2-12 days

0

12

Simplicity 7090362

SCREW, 1/4-20 x 5/8" Hex Washer Face Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

13

Simplicity 7043808

ROD, Trailing Shield (16-1/4" long)
(Superseded to 7043808YP)

$56.99

$

Usually ships in 2-12 days

0

14

Simplicity 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 7033732

SUPPORT, Rear Axle
(Superseded to 7033732YP)

$9.99

$

Usually ships in 2-12 days

0

16

Simplicity 7024595

BAFFLE, Discharge
(Superseded to 7024595YP)

$26.99

$

Usually ships in 2-12 days

0

17

Simplicity 7091075

SCREW, #10-24 x 5/8" Slotted Hex Washer Head Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

18

Simplicity 7091088

SCREW, 3/8-16 x 2" Hex Head Self-Tap
(Superseded to 7091088YP)

$6.49

$

Usually ships in 2-12 days

0

19

Simplicity 7016719

IDLER SPACER
(Superseded to 7016719YP)

$7.49

$

Usually ships in 2-12 days

0

20

Simplicity 7072143

BELT GUIDE (Wireform)
(Superseded to 7072143YP)

$28.99

$

Usually ships in 2-12 days

0

21

Simplicity 7090324

SCREW, 3/8-16 x 1 Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 7100437

PULLEY, Engine
(Superseded to 7100437YP)

$40.99

$

Usually ships in 2-12 days

0

23

Simplicity 7092086

SET SCREW, 5/16-18 x 1/2" Hex Recess
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 7091214

KEY, Hi-Pro #HP506
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

25

Simplicity 7015626

HUB, Blade Drive 25mm I.D.
(Superseded to 7015626YP)

$15.99

$

In Stock, only 1 left!

0

26

Simplicity 7100242

BLADE, Wave, 21" Steel Deck
(Superseded to 7100242AYP)

$28.99

$

In Stock, only 1 left!

0

27

Simplicity 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

28

Simplicity 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 7091892

PUSHNUT, 1/4 Black
(Superseded to 7091892YP)

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 7026390

PLUG, 21M Mulching
(Superseded to 7026390YP)

$62.99

$

Usually ships in 2-12 days

0
