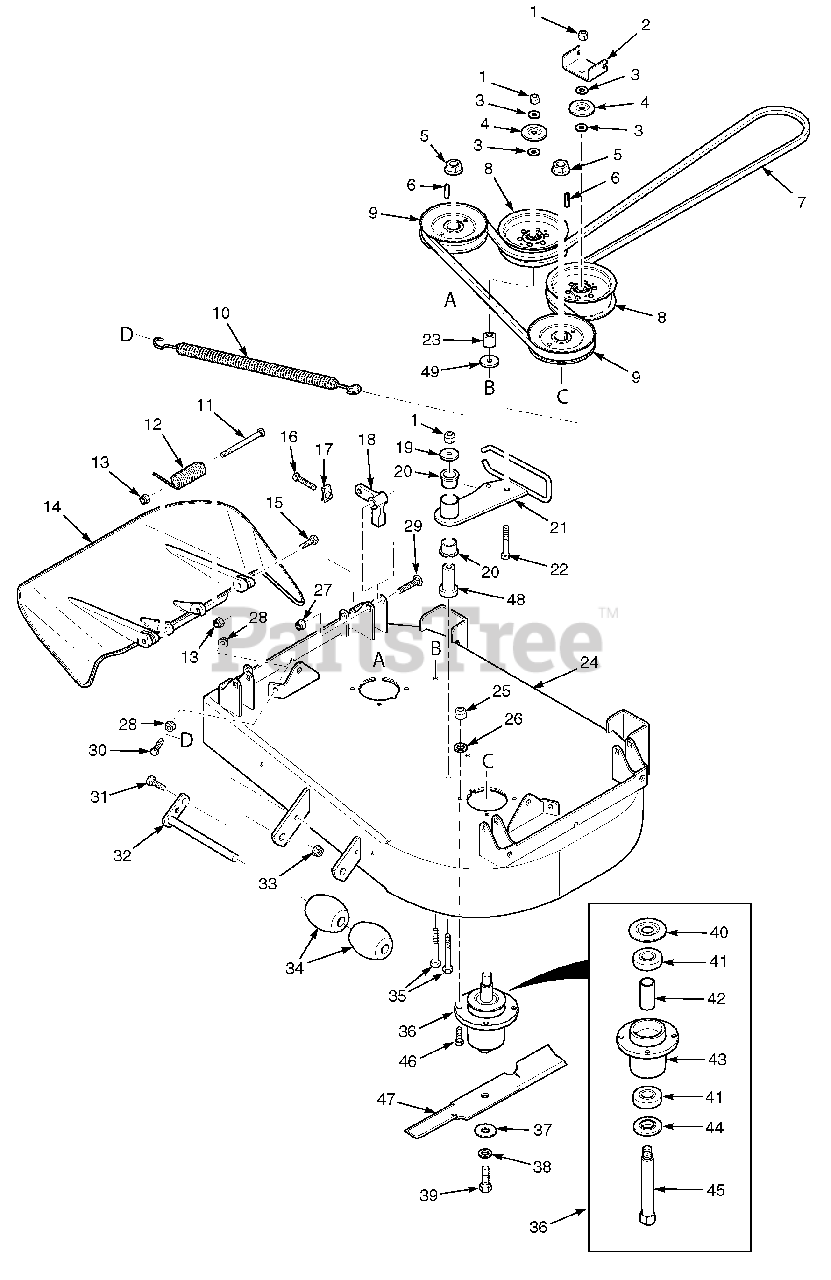

SMFZ-36 - Scag Freedom Z 36" Mower Deck (SN: E3100001 - E3199999) 36 Cutter Deck Parts Diagram

Freedom Z 36" Mower Deck

36 Cutter Deck Parts Diagram

  • Title

1

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

3

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

4

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

5

Scag 04112-06

Nut, 3/4-16 Spiral Lock

$11.99

$

In Stock, Qty 5

0

6

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

7

Scag 483667

Belt, Cutter Deck

$95.99

$

Usually ships in 2-12 days

0

8

Scag 483442

Pulley, 5" Idler

$41.99

$

Usually ships in 2-12 days

0

9

Scag 483324

Pulley, 5.73" OD - 25mm Bore

$32.99

$

In Stock, only 3 left!

0

10

Scag 483375

Spring, Idler

$85.99

$

In Stock, only 1 left!

0

11

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

12

Scag 482245

Spring, Discharge Chute

$10.99

$

In Stock, Qty 5

0

13

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 462031

Discharge Chute Assembly

$65.99

$

In Stock, only 1 left!

0

15

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04107-05

Bolt, Hex Head 3/8-16 x 2" Special Lock

$4.99

$

Usually ships in 2-12 days

0

17

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

18

Scag 483361

Lever, Deck Level

$21.99

$

In Stock, only 1 left!

0

19

Scag 04041-11

Flatwasher, 3/8-.406 x 1.50" x 7 Ga.

$1.99

$

In Stock, only 4 left!

0

20

Scag 483453-03

Bearing

$7.99

$

In Stock, only 2 left!

0

21

Scag 462133

Idler Arm

Note: (incl. item #20)

$70.99

$

Usually ships in 2-12 days

0

22

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

23

Scag 43711

Spacer

$6.49

$

Usually ships in 2-12 days

0

24

Scag 462135

Cutter Deck w/Decals, SFZ36

$988.99

$

Usually ships in 2-12 days

0

25

Scag 04021-22

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 04030-03

Lockwasher, 5/16 Spring

$0.99

$

In Stock, Qty 20+

0

27

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

28

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 3 left!

0

30

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 20+

0

31

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

32

Scag 451926

Shaft Weldment

$25.99

$

In Stock, only 1 left!

0

33

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

35

Scag 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

36

Scag 461950

Spindle Assembly

$137.99

$

In Stock, only 1 left!

0

37

Scag 04043-06

Flatwasher, 5/8-11 x 1-1/2"

$1.99

$

In Stock, Qty 20+

0

38

Scag 04030-07

Lockwasher, 1/2 Spring

$0.99

$

In Stock, Qty 19

0

39

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$1.99

$

In Stock, Qty 20+

0

40

Scag 483304

Debris Shield

$6.49

$

In Stock, only 1 left!

0

41

Scag 483303

Bearing

$13.99

$

In Stock, Qty 17

0

42

Scag 43693

Spacer, Bearing

$22.99

$

Usually ships in 2-12 days

0

43

Scag 462014

Spindle Housing Assembly

Note: (incl. item #41, 42)

$129.99

$

In Stock, only 1 left!

0

44

Scag 43694

Protector, Bearing

$28.99

$

In Stock, only 1 left!

0

45

Scag 43695

Shaft, Spindle

$49.99

$

In Stock, only 1 left!

0

46

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 10

0

47

Scag 482878

Cutter Blade, 48"

$23.99

$

In Stock, Qty 20+

0

48

Scag 43708

Pivot, Idler

$31.99

$

In Stock, only 1 left!

0

49

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 8

0
