SM-72A - Scag Advantage 72" Mower Deck (SN: B3900001 - B3899999) Engine Deck Parts Diagram

Advantage 72" Mower Deck

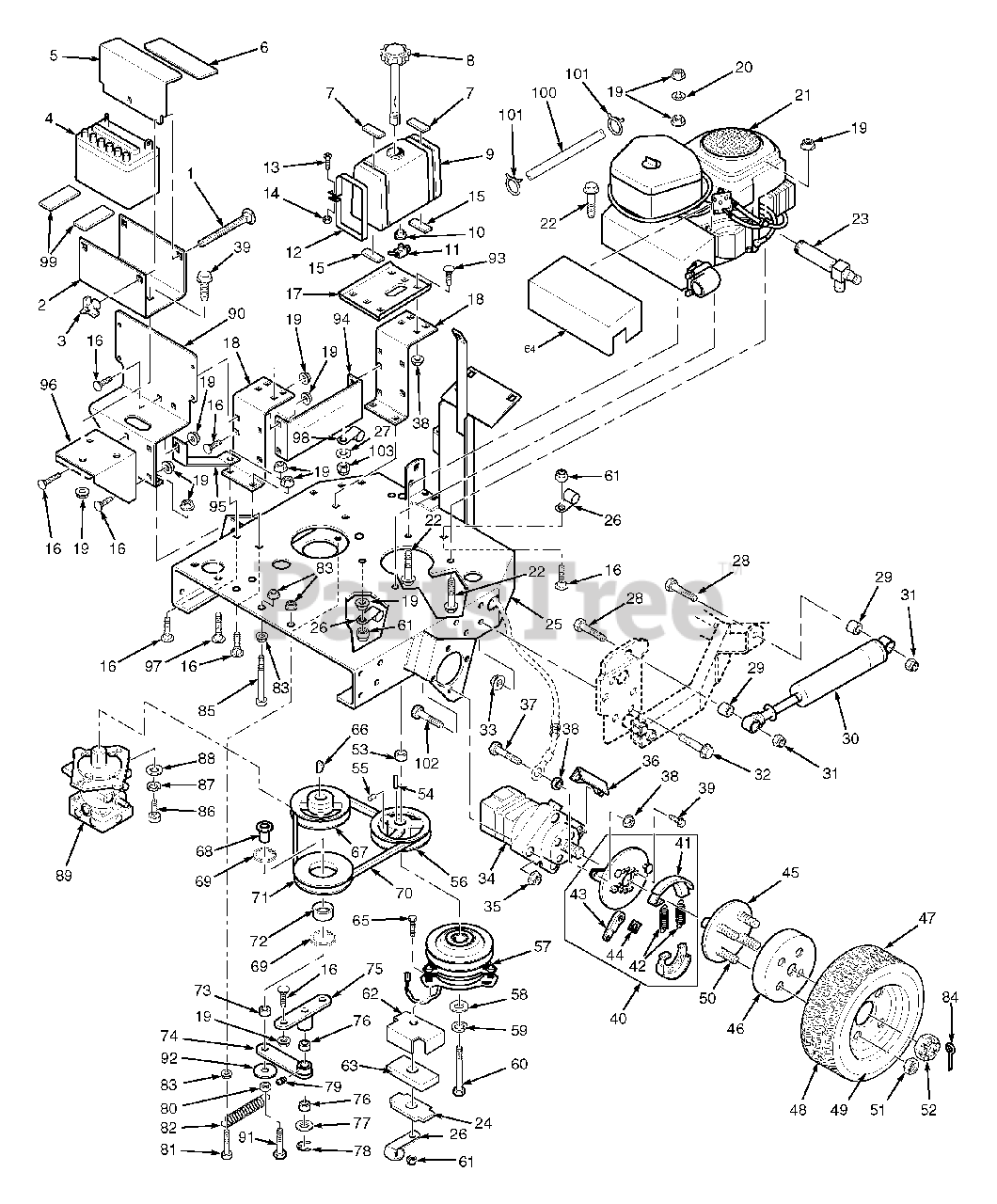

Engine Deck Parts Diagram

  • Title

1

Scag 04003-01

Carriage Bolt, 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

2

Scag 423308

Battery Box

$54.99

$

In Stock, only 1 left!

0

3

Scag 04029-01

Nut, Wing 1/4-20

$2.49

$

In Stock, Qty 19

0

4

Scag 48015

Battery

$

$

Not available

5

Scag 42392

Battery Cover

$47.99

$

Usually ships in 2-12 days

0

6

Scag 48099

Insulation, Battery Cover

$5.99

$

Usually ships in 2-12 days

0

7

Scag 48292

Pad, Fuel Tank Strap

$3.99

$

In Stock, only 2 left!

0

8

Scag 481556

Cap, Fuel Tank
(Superseded to 483787)

$61.99

$

Usually ships in 2-12 days

0

9

Scag 46846

Fuel Tank Assy.

Note: (Includes items 10 - 11)

$248.99

$

In Stock, only 1 left!

0

10

Scag 48309

Bushing, Fuel Tank Valve
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

11

Scag 48308

Fuel Shut Off Valve
(Superseded to 483747)

$30.99

$

In Stock, only 4 left!

0

12

Scag 421239

Strap, Fuel Tank

$25.99

$

In Stock, only 4 left!

0

13

Scag 04010-10

Phil RDHD Machine Screw 1/4-20 x 2"

$0.99

$

In Stock, Qty 12

0

14

Scag 04020-02

Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

15

Scag 48205

Pad, Fuel Tank Support

$4.49

$

Usually ships in 2-12 days

0

16

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 42377

Support, Fuel Tank

$51.99

$

Usually ships in 2-12 days

0

18

Scag 421522

Bracket, Fuel Tank Support

$63.99

$

Usually ships in 2-12 days

0

19

Scag 04019-03

Serr. Fl. Hex Nut 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 04031-09

Lockwasher, 5/16 Int. Tooth

$0.99

$

In Stock, Qty 8

0

21

Scag 481776

Engine, 23 HP Kohler CV, (Spec PS-75523)

$

$

Currently unavailable

22

Scag 04001-12

Hex Head CPSCR, 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 482352

Oil Drain Extension

$44.99

$

Usually ships in 2-12 days

0

24

Scag 422534

Plate, Backing

$5.49

$

Usually ships in 2-12 days

0

25

Scag 45586

Engine Deck

$

$

Not available

26

Scag 48030-09

Wire Loom, .50 I.D.

$1.49

$

In Stock, Qty 6

0

27

Scag 04040-14

Washer, 1/4 (.312 x .750 x .065)

$0.99

$

In Stock, only 4 left!

0

28

Scag 04001-72

Bolt, Hex Head 1/2-13 x 2"

$1.99

$

Usually ships in 2-12 days

0

29

Scag 43041

Sleeve, Shock Absorber Mount

$5.49

$

Usually ships in 2-12 days

0

30

Scag 48516

Shock Absorber

$506.99

$

In Stock, only 1 left!

0

31

Scag 04021-07

Hex Locknut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

32

Scag 04017-42

Serr. Fl. Hex Head CPSCR, 7/16-14 x 1"

$2.49

$

In Stock, Qty 10

0

33

Scag 04019-05

Serr. Fl. Hex Nut, 7/16-14

$0.99

$

In Stock, Qty 12

0

34

Scag 48769

Motor - White

Note: (Includes item 52)

$2963.99

$

Usually ships in 2-12 days

0

35

Scag 04030-06

Lockwasher, 1/2"

$0.99

$

In Stock, only 2 left!

0

35A

Scag 04020-07

Nut, 1/2-13

Note: Not Illustrated

$0.99

$

In Stock, only 3 left!

0

36

Scag 421289

Anchor, Brake

$

$

Not available

37

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

38

Scag 04019-02

Serr. Fl. Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

39

Scag 04017-16

Serr. Fl. Hex Head CPSCR, 5/16-18 x .75"

$0.99

$

In Stock, Qty 10

0

40

Scag 48461

Parking Brake Assembly

Note: (Incl. 41-44)

$318.99

$

Usually ships in 2-12 days

0

41

Scag 48461-02

Brake Pads- Pair

$149.99

$

Usually ships in 2-12 days

0

42

Scag 48461-03

Springs - Pair

$14.99

$

Usually ships in 2-12 days

0

43

Scag 48461-04

Actuating Arm,

Note: Incl. Pin & Clip)

$149.99

$

Usually ships in 2-12 days

0

44

Scag 48461-05

Clip

$4.99

$

Usually ships in 2-12 days

0

45

Scag 46929

Hub Assembly

Note: (Includes item 50)

$178.99

$

In Stock, only 1 left!

0

46

Scag 48513

Brake Drum

$97.99

$

Usually ships in 2-12 days

0

47

Scag 48933

Rim and Tire Assembly

Note: (Includes items 48, 49)

$349.99

$

Usually ships in 2-12 days

0

48

Scag 48933-02

Tire 20 x 10 x 10, 4 Ply

$283.99

$

Usually ships in 2-12 days

0

49

Scag 48416-04

Rim Only

$298.99

$

Usually ships in 2-12 days

0

50

Scag 04008-03

Bolt, Hub

$13.99

$

Usually ships in 2-12 days

0

51

Scag 04028-01

Wheel Nut

$1.49

$

In Stock, Qty 14

0

52

Scag 48680

Castle Nut, 1.0-20 UNEF

$17.99

$

In Stock, only 4 left!

0

53

Scag 43261

Spacer, Clutch

$9.99

$

Usually ships in 2-12 days

0

54

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

55

Scag 04012-04

Hex Socket Set Screw, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

0

56

Scag 48792

Pulley, Engine Pump Drive

Note: (Incl. 55)

$119.99

$

Usually ships in 2-12 days

0

57

Scag 461397

Clutch, Electric (Ogura)

$332.99

$

In Stock, only 1 left!

0

58

Scag 04041-28

Flatwasher, 7/16 (.469 x 1.75 x .25)

$2.99

$

In Stock, Qty 13

0

59

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 8

0

60

Scag 04102-05

Bolt, Hex Head 7/16-20 x 2.75"

$2.49

$

In Stock, only 1 left!

0

61

Scag 04021-10

Hex Locknut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

62

Scag 422533

Backing Plate, Clutch Stop

$14.99

$

In Stock, only 1 left!

0

63

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

In Stock, only 1 left!

0

64

Scag 481641

Heatshield, Muffler

$

$

Currently unavailable

65

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

66

Scag 04063-12

Key, Woodruff 3/16 x 5/8"

$0.99

$

In Stock, Qty 12

0

67

Scag 48581

Pulley, Pump Input

$84.99

$

In Stock, only 1 left!

0

68

Scag 43117

Sleeve, Idler

$13.99

$

Usually ships in 2-12 days

0

69

Scag 04050-06

Ring, Retaining, 1-9/16 Internal

$2.99

$

Usually ships in 2-12 days

0

70

Scag 48854

Belt, Pump Drive

$71.99

$

Usually ships in 2-12 days

0

71

Scag 46370

Pulley, Idler-Traction Drive

Note: (Incl. 68,69,72)

$155.99

$

Usually ships in 2-12 days

0

72

Scag 48102

Bearing, Idler Pulley

$11.99

$

Usually ships in 2-12 days

0

73

Scag 43063

Spacer, Idler

$9.99

$

In Stock, only 2 left!

0

74

Scag 46327

Pump Idler Arm

Note: (includes items 76, 79)

$54.99

$

Usually ships in 2-12 days

0

75

Scag 45037

Idler Pivot Base

$31.99

$

Usually ships in 2-12 days

0

76

Scag 48100-05

Bushing, Oillube

$0.99

$

In Stock, only 3 left!

0

77

Scag 04041-08S

Flatwasher, 3/4"

$0.99

$

In Stock, Qty 20+

0

78

Scag 04050-02

Ring, Retaining, 3/4" Ext. "E"

$0.99

$

In Stock, Qty 7

0

79

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

80

Scag 04020-12

Hex Nut, Jam 3/8-16

$0.99

$

In Stock, only 3 left!

0

81

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 15

0

82

Scag 48929

Spring, Pump Drive Idler

$54.99

$

Usually ships in 2-12 days

0

83

Scag 04019-04

Serr. Fl. Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

84

Scag 04061-04

Cotter Pin, 5/32 x 1.50"

$

$

Currently unavailable

85

Scag 04001-47

Bolt, Hex Head 3/8-16 x 5"

$3.49

$

Usually ships in 2-12 days

0

86

Scag 04015-03

Socket Head CPSCR, 1/2-13 x 1-1/4"

$2.99

$

Usually ships in 2-12 days

0

87

Scag 04030-06

Lockwasher, 1/2"

$0.99

$

In Stock, only 2 left!

0

88

Scag 04041-04

Flatwasher, 1/2 (.516 x .938 x .105)

$0.99

$

Usually ships in 2-12 days

0

89

Scag 481100

Pump, Sundstrand

$3432.99

$

Usually ships in 2-12 days

0

90

Scag 421520

Bracket, Oil Tank Support

$84.99

$

Usually ships in 2-12 days

0

91

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

92

Scag 04041-10

Washer 2" OD, 3/8 ID, 16 Ga.

$1.99

$

Usually ships in 2-12 days

0

93

Scag 04003-02

Carriage Bolt, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

94

Scag 421523

Guard, Pulley

$61.99

$

Usually ships in 2-12 days

0

95

Scag 421521

Gusset, Battery Box

$15.99

$

Usually ships in 2-12 days

0

96

Scag 421705

Support, Battery Box

$34.99

$

Usually ships in 2-12 days

0

97

Scag 04003-04

Carrage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

98

Scag 48030-10

Wire Loom, .75" I.D.

$0.99

$

Usually ships in 2-12 days

0

99

Scag 48661

Rubber Pad

$4.99

$

Usually ships in 2-12 days

0

100

Scag 48058

Fuel Hose, Order by the inch
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

101

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

102

Scag 04001-52

Bolt, 1/2-13 x 2.50"

$1.99

$

Usually ships in 2-12 days

0

103

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 10

0
