SM 706 - Poulan Pro String Trimmer, Type 2 Engine Type 2 Parts Diagram

String Trimmer, Type 2

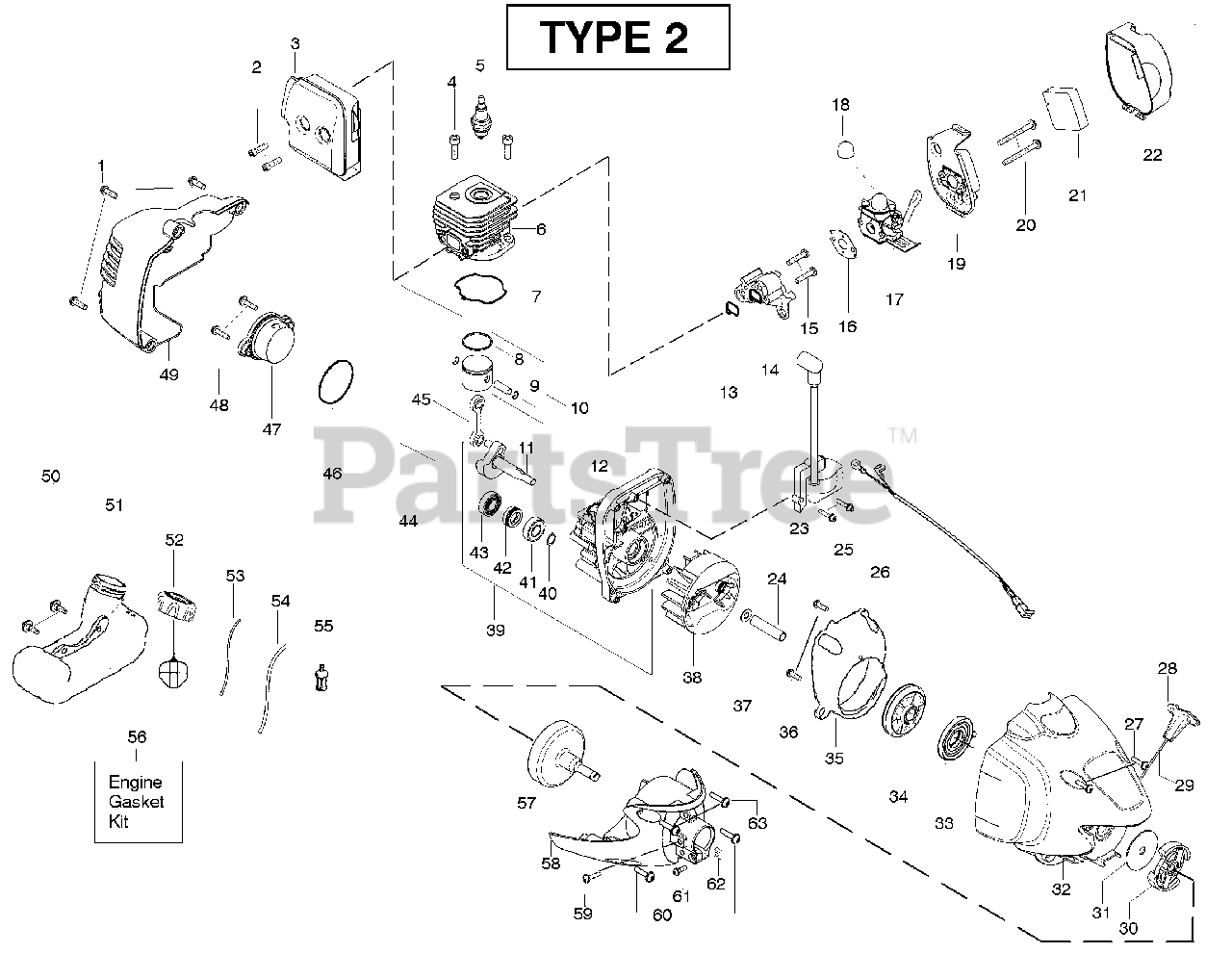

Engine Type 2 Parts Diagram

  • Title

1

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

2

Poulan 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

3

Poulan 530057863

Assy-Muffler/Shield
(Superseded to 545227901)

Note: (Incl. 2)

$43.99

$

Usually ships in 3-10 days

0

4

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

5

Poulan 952030249

Spark Plug (RCJ 6Y)

$4.99

$

In Stock, Qty 20+

0

6

Poulan 530012541

Cylinder

$31.99

$

In Stock, only 1 left!

0

7

Poulan 530071750

Seal-Cylinder (kit)

$

$

Not available

8

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

9

Poulan 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

10

Poulan 530071833

Kit - Piston

Note: (Incl. 8, 9)

$37.99

$

Usually ships in 3-10 days

0

11

Poulan 530012579

Assy-Crankshaft
(Superseded to 545145802)

$28.99

$

Usually ships in 3-10 days

0

12

Poulan 530012582

Assy-Crankcase

Note: (Incl. 41,42,43)

$37.99

$

Usually ships in 3-10 days

0

13

Poulan 530071750

Seal-Cyl/Carb.(kit)

$

$

Not available

14

Poulan 530057547

Adapter-Carb.

$10.99

$

Usually ships in 3-10 days

0

15

Poulan 530016441

Screw

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530071750

Gasket-Carb. (kit)

$

$

Not available

17

Poulan 530071811

Kit-Carb.(C1U-W19)

Note: (Note: Repair kits are not available for this carburetor)

$50.99

$

In Stock, only 1 left!

0

18

Poulan 530058709

Bulb - Purge

$7.99

$

In Stock, only 1 left!

0

19

Poulan 545077501

Air Box

$9.49

$

In Stock, only 1 left!

0

20

Poulan 530016429

Screw

$6.49

$

In Stock, Qty 6

0

21

Poulan 530036575

Foam-Air Filter

$5.99

$

In Stock, only 2 left!

0

22

Poulan 530057545

Cover-Air Box

$6.99

$

In Stock, only 4 left!

0

23

Poulan 530039229

Ignition Module
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

24

Poulan 530059758

Spacer-Flywheel

$5.99

$

Usually ships in 3-10 days

0

25

Poulan 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

26

Poulan 530047278

Assy-Switch wire

$10.99

$

In Stock, only 1 left!

0

27

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

28

Poulan 530054834

Handle-Starter

$4.99

$

In Stock, only 1 left!

0

29

Poulan 530071798

Kit - Rope

$

$

Not available

30

Poulan 530055122

Assy-Clutch

$20.99

$

In Stock, Qty 5

0

31

Poulan 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

32

Poulan 545016004

Assy.-Fan Hsg
(Superseded to 545016102)

$27.99

$

Usually ships in 3-10 days

0

33

Poulan 545054901

Spring-Starter
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

34

Poulan 545050407

Kit-Starter Pulley

$13.99

$

In Stock, only 3 left!

0

35

Poulan 545080601

Baffle

$9.99

$

In Stock, only 1 left!

0

36

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

37

Poulan 530016463

Washer-Clutch Flat

$6.99

$

In Stock, only 3 left!

0

38

Poulan 530039243

Assy-Flywheel
(Superseded to 577235901)

$14.99

$

In Stock, only 1 left!

0

39

Poulan 530071951

Assy-C'case & C'shaft
(Superseded to 545102101)

Note: (Incl. 11,12,40)

$22.35

$

Usually ships in 3-10 days

0

40

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

42

Poulan 530019264

Seal-C'shaft

$7.49

$

In Stock, only 1 left!

0

43

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

44

Poulan 530071785

Kit-piston/rod

Note: (Incl. 10,45)

$47.99

$

Usually ships in 3-10 days

0

45

Poulan 530069945

Kit-Conn. Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

46

Poulan 530071750

O-Ring-C'case (kit)

$

$

Not available

47

Poulan 530057954

Assy-Plug

Note: (incl.46)

$5.99

$

In Stock, only 1 left!

0

48

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

49

Poulan 530057539

Shroud-Rear

$13.99

$

Usually ships in 3-10 days

0

50

Poulan 530016445

Retainer-Tank

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 530057974

Assy-Fuel Tank
(Superseded to 545103702)

Note: (incl. filter, lines & fuel cap)

$24.99

$

Usually ships in 3-10 days

0

52

Poulan 530057973

Assy-Fuel Cap
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

53

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

54

Poulan 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

55

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

56

Poulan 530071750

Kit-Engine Gasket

Note: (Incl. 7,13,16,46)

$

$

Not available

57

Poulan 530150247

Assy-Clutch Drum

$28.99

$

Usually ships in 3-10 days

0

58

Poulan 545077301

Assy-Clutch Cover

Note: (Incl. 61,62)

$20.99

$

Usually ships in 3-10 days

0

59

Poulan 530016319

Screw-Align

$5.99

$

In Stock, Qty 10

0

60

Poulan 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

61

Poulan 530016381

Screw 12-24

$3.49

$

Usually ships in 3-10 days

0

62

Poulan 530016382

Nut 12-24

$6.99

$

Usually ships in 3-10 days

0

63

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0
