SM 706 - Electrolux/AYP String Trimmer, Type 1 (2008-12) Engine - Type1 Parts Diagram

String Trimmer, Type 1

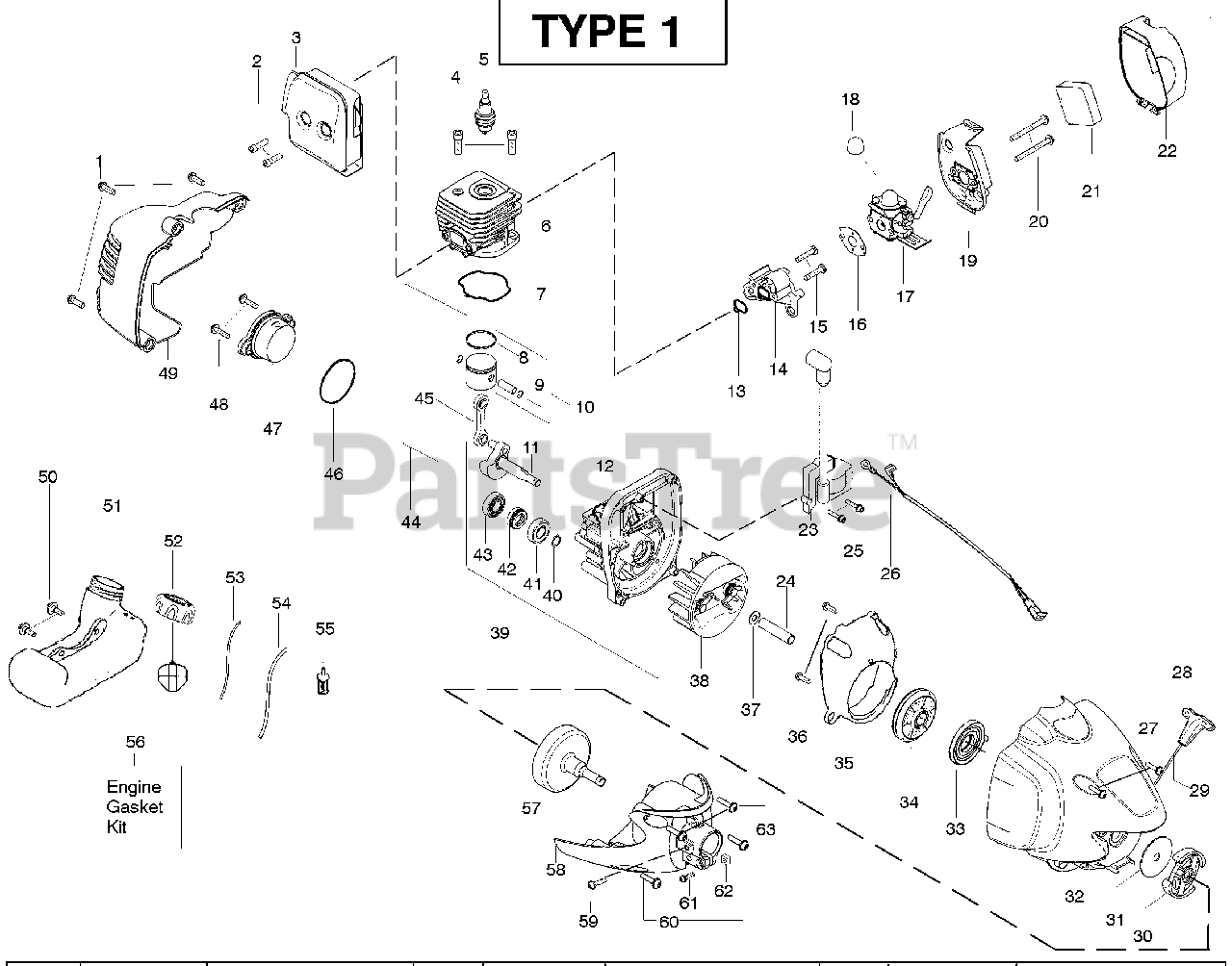

Engine - Type1 Parts Diagram

  • Title

1

Electrolux/AYP 530015880

Screw

$4.99

$

In Stock, Qty 8

0

2

Electrolux/AYP 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

3

Electrolux/AYP 530057863

Assy-Muffler/Shield
(Superseded to 545227901)

Note: (Incl. 2)

$43.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 952030249

Spark Plug (RCJ 6Y)

$4.49

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530012541

Cylinder

$31.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 530071750

Seal-Cylinder (kit)

$

$

Not available

8

Electrolux/AYP 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530071833

Kit-Piston

Note: (Incl. 8, 9)

$37.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530012579

Assy-Crankshaft
(Superseded to 545145802)

$28.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 530012582

Assy-Crankcase

Note: (Incl. 41,42,43)

$37.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530071750

Seal-Cyl/Carb.(kit)

$

$

Not available

14

Electrolux/AYP 530057547

Adapter-Carb.

$10.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530016441

Screw

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530071750

Gasket-Carb. (kit)

$

$

Not available

17

Electrolux/AYP 530071811

Kit-Carb.(C1UW19)

$50.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530058709

Bulb- Purge

$7.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 545077501

Air Box

$9.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530016429

Screw

$6.49

$

In Stock, only 4 left!

0

21

Electrolux/AYP 530036575

Foam-Air Filter

$5.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 530057545

Cover-Air Box

$6.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 530035505

Ignition Module

$47.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 530059758

Spacer-Flywheel

$5.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

26

Electrolux/AYP 545015601

Assy-Switch wire

$

$

Not available

27

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 530054834

Handle-Starter

$4.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 530071798

Handle-Starter

$

$

Not available

30

Electrolux/AYP 530055122

Kit - Rope

$20.99

$

In Stock, Qty 5

0

31

Electrolux/AYP 530094189

Assy-Clutch

$6.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 545016004

Washer-Clutch
(Superseded to 545016102)

$27.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 545054901

Assy-Fan Hsg
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 545050407

Spring-Starter

$13.99

$

In Stock, only 3 left!

0

35

Electrolux/AYP 545080601

Kit-Starter Pulley

$9.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 530015880

Baffle

$4.99

$

In Stock, Qty 8

0

37

Electrolux/AYP 530016463

Screw

$6.99

$

In Stock, only 3 left!

0

38

Electrolux/AYP 530039243

Washer-Clutch Flat
(Superseded to 577235901)

$14.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 530071951

Assy-Flywheel
(Superseded to 545102101)

$22.35

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530071951

Assy-C'case & C'shaft
(Superseded to 545102101)

Note: (Incl. 11,12, 40)

$22.35

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 530019264

Seal-C'shaft

$7.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530071785

Kit-piston/rod

Note: (Incl. 10,45)

$47.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 530069945

Kit-Conn. Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 530071750

O-Ring-C'case (kit)

$

$

Not available

48

Electrolux/AYP 530057954

Assy-Plug

Note: (incl.46)

$5.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 530057539

Shroud-Rear

$13.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530016445

Retainer-Tank

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530057974

Assy-Fuel Tank
(Superseded to 545103702)

Note: (incl. filter, lines & fuel cap)

$24.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 530057973

Assy-Fuel Cap
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 19

0

57

Electrolux/AYP 530071750

Kit-Engine Gasket

Note: (Incl. 7,13,16,46)

$

$

Not available

58

Electrolux/AYP 530150247

Assy-Clutch Drum

$28.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 545077301

Assy-Clutch Cover

Note: (Incl. 61,62)

$20.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 530016319

Screw-Align

$5.99

$

In Stock, Qty 10

0

61

Electrolux/AYP 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

62

Electrolux/AYP 530016381

Screw 12-24

$3.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 530016382

Nut 12-24

$6.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0
