SM-61V - Scag Velocity Plus 61" Mower Deck (SN: C5400001 - C5499999) Cutter Deck Parts Diagram

Velocity Plus 61" Mower Deck

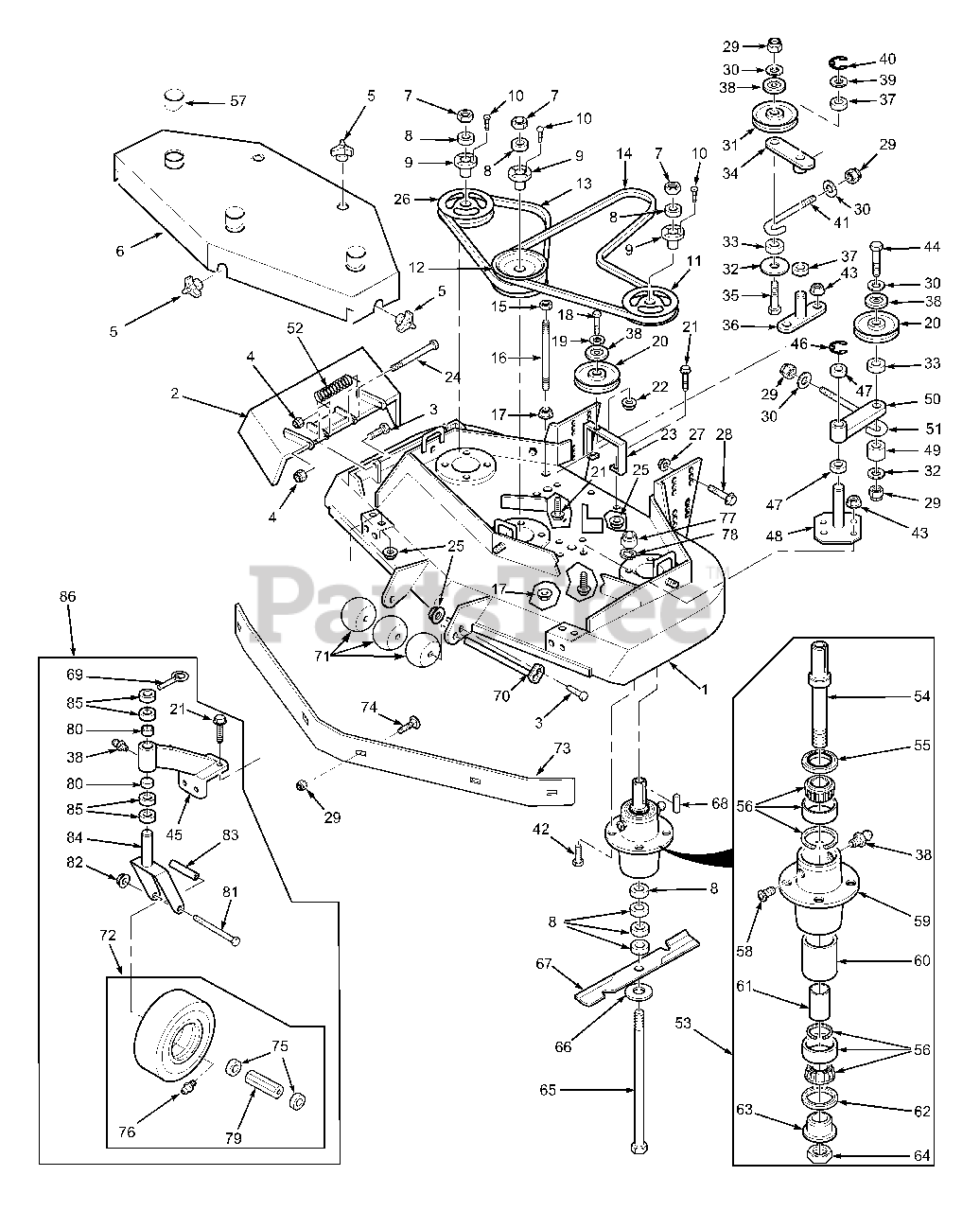

Cutter Deck Parts Diagram

  • Title

1

Scag 461861

Cutter Deck, Velocity Plus

Note: (Incl. decals)

$1685.99

$

Usually ships in 2-12 days

0

2

Scag 461846

Discharge Chute, Velocity Plus

$66.99

$

In Stock, only 1 left!

0

3

Scag 04001-09

Bolt, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

4

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

5

Scag 04029-03

Wing Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

6

Scag 461583

Belt Cover
(Superseded to 491879)

Note: (Incl. Decals)

$424.99

$

Usually ships in 2-12 days

0

7

Scag 04020-09

Nut, 5/8-11 Hex Head

$0.99

$

In Stock, Qty 20+

0

8

Scag 43592

Spacer, Cutter Blade

$4.49

$

In Stock, Qty 20+

0

9

Scag 48926

Tapered Hub, 1.125 Bore

$30.99

$

In Stock, Qty 20+

0

10

Scag 04001-172

Bolt, 1/4-20 x 1" Hex Head Grade 8

$0.99

$

In Stock, Qty 20+

0

11

Scag 482745

Pulley, 6.35 O.D.

$30.99

$

In Stock, Qty 9

0

12

Scag 48940

Pulley, Double Groove, 6.35/5.75 O.D.

$184.99

$

Usually ships in 2-12 days

0

13

Scag 48265

Belt, R.H. Blade Drive

$40.99

$

In Stock, only 1 left!

0

14

Scag 48912

Belt, Deck Drive

$79.99

$

Usually ships in 2-12 days

0

15

Scag 04021-05

Lock Nut,3/8-16 Hex Head

$0.99

$

In Stock, Qty 20+

0

16

Scag 04004-14

Stud, 3/8-16 x 6-3/4"

$35.99

$

Usually ships in 2-12 days

0

17

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-46

Bolt, 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

20

Scag 483215

Pulley, Idler

$60.99

$

In Stock, Qty 20+

0

21

Scag 04017-16

Capscrew, 5/16-18 x 3/4 Ser. Flg. HH

$0.99

$

In Stock, Qty 10

0

22

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

23

Scag 421355

Idler Pulley Support

$73.99

$

Usually ships in 2-12 days

0

24

Scag 04001-108

Bolt, Hex Head 5/16-18 x 4-1/4"

$2.49

$

In Stock, Qty 9

0

25

Scag 04019-03

Nut, 5/16-18 Ser. Flg. Hex Hd.

$0.99

$

In Stock, Qty 20+

0

26

Scag 482744

Pulley, 5.75

$30.99

$

Usually ships in 2-12 days

0

27

Scag 04019-06

Nut, 1/2-13 Ser. Flg. Hex Hd.

$0.99

$

In Stock, Qty 10

0

28

Scag 04017-37

Capscrew, 1/2-13 x 1-1/4 Ser. Flg.

$2.49

$

In Stock, only 3 left!

0

29

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

30

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

31

Scag 48181

Pulley

$26.99

$

In Stock, Qty 11

0

32

Scag 04041-12

Flatwasher, 3/8 (.375 x 1.50 x .060)

$0.99

$

In Stock, Qty 9

0

33

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

34

Scag 461091

Idler Arm

Note: (Incl. 37)

$108.99

$

In Stock, only 3 left!

0

35

Scag 04001-46

Bolt, 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

36

Scag 45037

Idler Pivot

$30.99

$

Usually ships in 2-12 days

0

37

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

38

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

39

Scag 04041-08

Flatwasher, 3/4 (.776 x 1.25 x .059)

$0.99

$

In Stock, Qty 20+

0

Scag 04041-08S

Flatwasher, 3/4 (.776 x 1.25 x .035)

$0.99

$

In Stock, Qty 20+

0

40

Scag 04050-02

Retaining Ring, .75 EXT 'E'

$0.99

$

In Stock, Qty 7

0

41

Scag 43028

J-Rod Idler Pulley

$4.99

$

In Stock, only 1 left!

0

42

Scag 04001-175

Bolt, 5/16-18 x 1-1/2" Hex Head Gr 8

$0.99

$

In Stock, Qty 10

0

43

Scag 04019-03

Nut, 5/16-18 Ser. Flange

$0.99

$

In Stock, Qty 20+

0

44

Scag 04001-77

Bolt, 3/8-16 x 3-1/2" Hex Head

$1.49

$

In Stock, Qty 7

0

45

Scag 46082

Support Assembly

$148.99

$

In Stock, only 1 left!

0

46

Scag 04050-05

Retaining Ring, 1-1/8 EXT 'E'

$0.99

$

In Stock, Qty 20+

0

47

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

48

Scag 45329

Idler Pivot Support

$39.99

$

Usually ships in 2-12 days

0

49

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

50

Scag 461841

Idler Arm

Note: (Incl. 47)

$66.99

$

Usually ships in 2-12 days

0

51

Scag 44078

J-Rod, Drive Idler

$6.99

$

In Stock, only 2 left!

0

52

Scag 482245

Spring, Chute Return

$10.99

$

In Stock, Qty 5

0

53

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

54

Scag 43589

Shaft, Cutter Spindle

$58.99

$

In Stock, only 1 left!

0

55

Scag 481024

Seal, 2.00 O.D. x 1.50 Bore

$4.99

$

In Stock, Qty 20+

0

56

Scag 481022

Bearing Assembly

$59.99

$

In Stock, Qty 15

0

57

Scag 48098

Shield, Spindle

$2.49

$

In Stock, only 3 left!

0

58

Scag 48677

Relief Fitting, Cutter Spindle

$

$

Not available

59

Scag 43664

Spindle Housing

$

$

Currently unavailable

60

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

61

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

62

Scag 481025

Seal, 2.00 O.D. x 1-5/8 Bore

$4.99

$

In Stock, Qty 20+

0

63

Scag 43297

Spindle Bushing Bottom

$9.99

$

In Stock, only 2 left!

0

64

Scag 481035

Nut, 1-1/16-18 UNEF-2B

$7.99

$

In Stock, only 3 left!

0

65

Scag 04001-41

Bolt, 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

66

Scag 04040-10

Flatwasher, 5/8 (.688 x 1.75 x .134)

$0.99

$

In Stock, Qty 11

0

67

Scag 482879

Cutter Blade, 21" Standard

$25.99

$

In Stock, Qty 20+

0

68

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

69

Scag 04066-01

Quick Pin

$8.49

$

In Stock, Qty 7

0

70

Scag 45944

Shaft, Roller

$21.99

$

In Stock, Qty 20+

0

71

Scag 482295

Guide, Roller

$9.99

$

In Stock, Qty 20+

0

72

Scag 9275

Wheel Assy., Caster

$109.99

$

In Stock, only 1 left!

0

73

Scag 424164

Baffle, Custom-Cut 61V
(Superseded to 424841)

$119.99

$

Usually ships in 2-12 days

0

74

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

75

Scag 481770

Retainer, Caster Wheel

$4.99

$

In Stock, Qty 20+

0

76

Scag 48114-03

Grease Fitting, 45 Deg. 1/4-28

$10.99

$

In Stock, Qty 6

0

77

Scag 04021-22

Nut, Elastic Stop 5/16-18 Grade 8

$0.99

$

In Stock, Qty 20+

0

78

Scag 04030-03

Lock Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

79

Scag 481769

Roller Bearing, Caster Wheel

$27.99

$

In Stock, only 2 left!

0

80

Scag 48100-01

Bushing, 7/8 x 1" Flanged

$2.99

$

In Stock, Qty 13

0

81

Scag 04001-37

Bolt, 1/2-13 x 5-1/2" Hex Head

$4.49

$

In Stock, Qty 13

0

82

Scag 04021-07

Nut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

83

Scag 43022

Sleeve, Caster Wheel Bearing

$6.99

$

In Stock, Qty 20+

0

84

Scag 45006

Caster Yoke

$65.99

$

In Stock, only 1 left!

0

85

Scag 43037-01

Spacer, Caster Yoke 1/2"

$2.49

$

In Stock, Qty 20+

0

86

Scag 46079

Caster Wheel and Support Assy.

$395.99

$

Usually ships in 2-12 days

0
