SM-61B - Scag 61" Mower Deck (SN: 4190001 - 4199999) Control Linkage Parts Diagram

61" Mower Deck

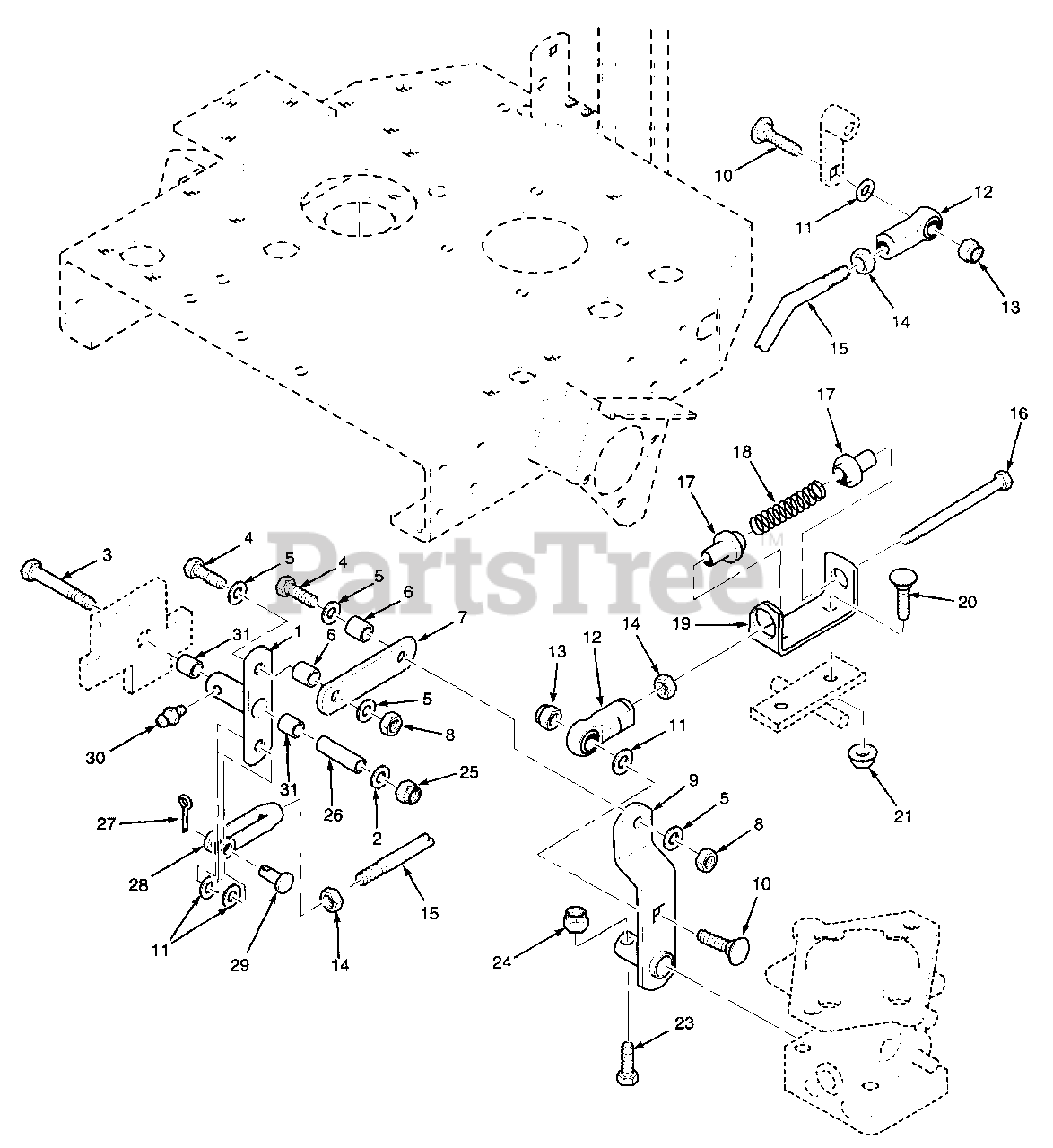

Control Linkage Parts Diagram

  • Title

1

Scag 46328

Control Linkage, Bellcrank

Note: (Includes 30, 31)

$

$

Not available

2

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-13

Bolt, Hex Head 5/16-18 x 2-3/4"

$0.99

$

In Stock, only 1 left!

0

4

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

6

Scag 43212

Sleeve, Pump Control Link

$4.49

$

In Stock, Qty 5

0

7

Scag 42658

Link, Speed Control

$41.99

$

In Stock, only 1 left!

0

8

Scag 04021-05

Hex Locknut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 45485

Control Arm, Pump

$48.99

$

Usually ships in 2-12 days

0

10

Scag 04003-05

Carriage Bolt, RH SH SQNK 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 18

0

11

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

12

Scag 48464

Rod End, RH Female THD 3/8-24

$23.99

$

In Stock, only 1 left!

0

13

Scag 04021-09

Hex Locknut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 04020-14

Hex Nut, 3/8-24

$0.99

$

In Stock, only 2 left!

0

15

Scag 44044

Control Rod

$12.99

$

In Stock, only 1 left!

0

16

Scag 48512

Bolt Hex Head, 3/8-24 x 6-3/4"

$41.99

$

Usually ships in 2-12 days

0

17

Scag 43257

Bushing, Spring Keeper

$

$

Not available

18

Scag 48463

Spring, Neutral Return

$5.49

$

Usually ships in 2-12 days

0

19

Scag 421148

Retainer, Neutral Spring

$21.99

$

Usually ships in 2-12 days

0

20

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 17

0

21

Scag 04019-03

Serr. Fl. Hex Nut 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

24

Scag 04021-08

Hex Locknut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

25

Scag 04021-10

Hex Locknut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 43110

Sleeve, Control Arm

$8.49

$

Usually ships in 2-12 days

0

27

Scag 04061-02

Cotter Pin, 3/32 x .75"

$0.99

$

In Stock, Qty 11

0

28

Scag 48343-02

Clevis, Pump Control
(Superseded to 48343-04)

$16.99

$

In Stock, only 2 left!

0

29

Scag 04064-02

Pin, Clevis 3/8"

$1.49

$

In Stock, only 3 left!

0

30

Scag 48114-05

Greese Fitting, 1/4-28 Self Tap

$1.49

$

In Stock, Qty 9

0

31

Scag 48100-04

Bushing, Bronze

$0.99

$

In Stock, only 4 left!

0
