SM 446 E - Poulan Pole Saw, Type 2 (2009-01) Engine - Type 2 Parts Diagram

Pole Saw, Type 2

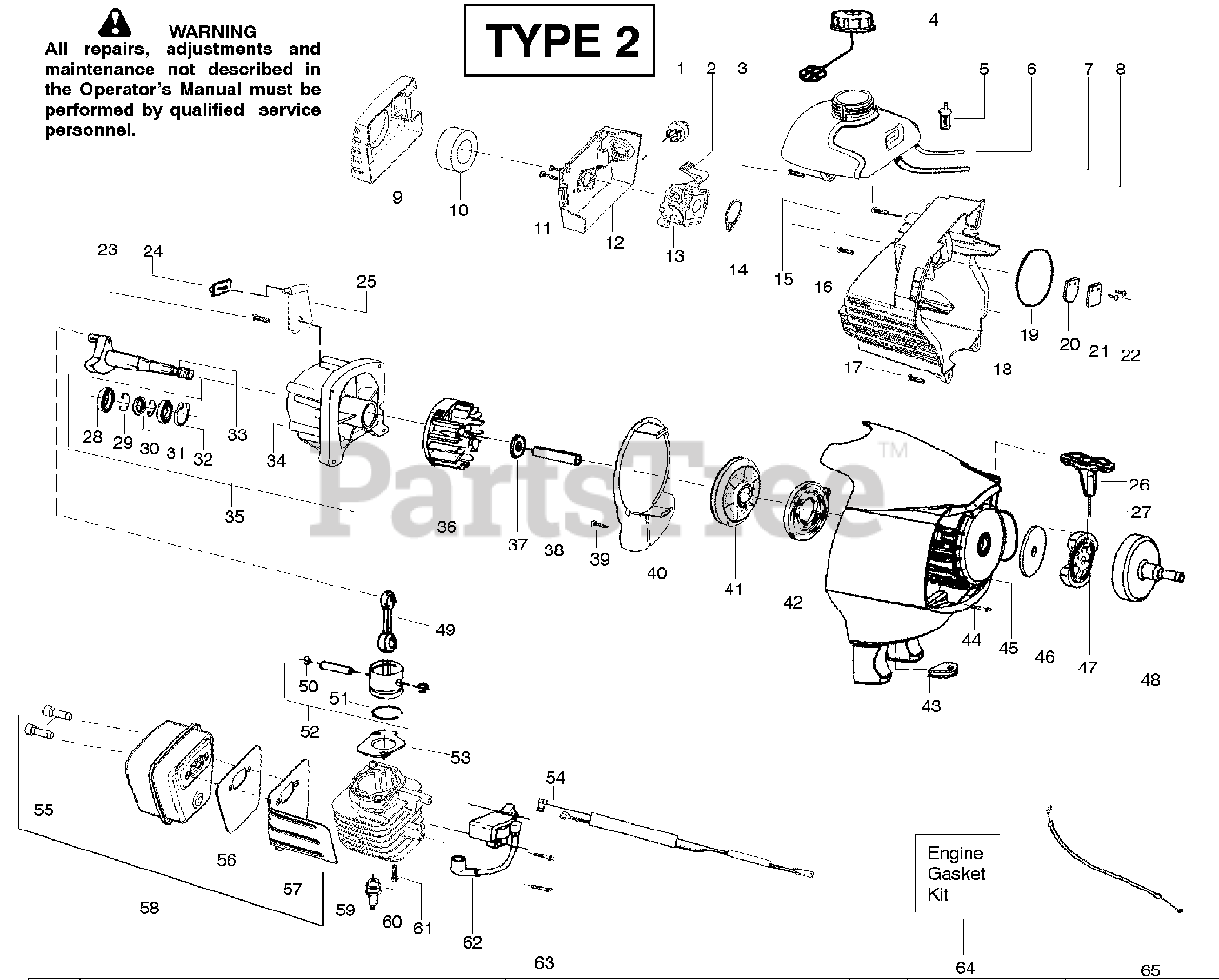

Engine - Type 2 Parts Diagram

  • Title

$9.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530071717

Kit-Choke Lever

$10.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530049386

Cap-Fuel w/ret.
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530095646

Assy-Fuel pickup

$6.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530071404

Kit-Fuel line
(Superseded to 530069247)

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530069216

Kit-Fuel/Purge line

$11.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 545000501

Cover-Air box

$5.99

$

In Stock, only 3 left!

0

10

$9.49

$

Usually ships in 3-10 days

0

11

$6.49

$

In Stock, only 1 left!

0

$

$

Not available

13

Electrolux/AYP 545006017

Kit-Carb assy. (C1U-W32)

Note: (Note: Repair kits are not available for this carburetor)

$47.99

$

In Stock, only 4 left!

0

14

Electrolux/AYP 545030102

Seal-Carb.(kit)

$

$

Not available

15

Electrolux/AYP 545075304

Assy-Fuel Tank
(Superseded to 545075305)

$

$

Not available

16

Electrolux/AYP 530015771

Screw-Crankcase

$6.49

$

In Stock, Qty 6

0

17

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 545000701

Assy-Rear Shroud

$

$

Not available

19

Electrolux/AYP 545030102

O-ring-Shroud (kit)

$

$

Not available

20

$6.49

$

In Stock, only 3 left!

0

$2.23

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530016064

Screw-Reed stop

$4.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 530015875

Screw-Retainer

$4.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 530055492

Isolator-Tank

$

$

Not available

$

$

Not available

26

Electrolux/AYP 530054834

Handle-Starter

$4.99

$

In Stock, only 1 left!

0

$7.49

$

In Stock, only 3 left!

0

28

Electrolux/AYP 545081601

Bearing-Inner

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530032102

Bearing-Outer

$

$

Not available

32

Electrolux/AYP 530015789

Ret.-Crankshaft

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530028807

Assy-Crankshaft

$37.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 545081901

Assy-Crankcase

Note: ( Incl. 28,29,30,31)

$

$

Not available

35

Electrolux/AYP 545006037

Assy-C'case/C'shaft

Note: ( Incl. 32,33,34)

$

$

Not available

36

Electrolux/AYP 530055524

Assy-Flywheel

$34.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

39

$6.49

$

In Stock, only 2 left!

0

40

$4.99

$

In Stock, only 1 left!

0

41

$

$

Not available

42

Electrolux/AYP 545054901

Spring-Starter
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

$3.99

$

Usually ships in 3-10 days

0

44

$8.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 530055248

Assy-Fan Housing

$

$

Not available

46

Electrolux/AYP 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

47

$20.99

$

In Stock, Qty 5

0

48

Electrolux/AYP 530150247

Assy-Drum/Adapter

$28.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530010960

Assy-Conn. Rod

$18.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530015162

Ret.-Piston pin

$6.49

$

In Stock, only 1 left!

0

51

$

$

Not available

52

Electrolux/AYP 530072000

Kit-Piston

Note: (Incl. 50,51)

$

$

Not available

53

Electrolux/AYP 545030102

Gasket-Cylinder(kit)

$

$

Not available

54

Electrolux/AYP 530058846

Assy-Leadwire

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 530016387

Bolt-Muffler 1/4"-20

$

$

Not available

56

Electrolux/AYP 545030102

Gasket-Muffler (kit)

$

$

Not available

$

$

Not available

58

Electrolux/AYP 545081871

Kit-Muffler
(Superseded to 545006016)

Note: (Incl. 55,56,57)

$42.99

$

Usually ships in 3-10 days

0

$24.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 952030249

Plug-Spark(RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

61

Electrolux/AYP 530001624

Bolt-Cyl. 1/4"-20

$3.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 530039234

Module-Ignition
(Superseded to 501092801)

$24.99

$

In Stock, only 1 left!

0

63

$6.49

$

In Stock, only 4 left!

0

64

Electrolux/AYP 545030102

Kit-Gasket/Seal

Note: ( Incl. 14,19, 53,56)

$

$

Not available

65

Electrolux/AYP 545026801

Assy-Throttle cable

$18.99

$

Usually ships in 3-10 days

0
