SM 4218 AVX - Poulan Pro Chainsaw Handle, Chassis & Bar Assembly Parts Diagram

Chainsaw

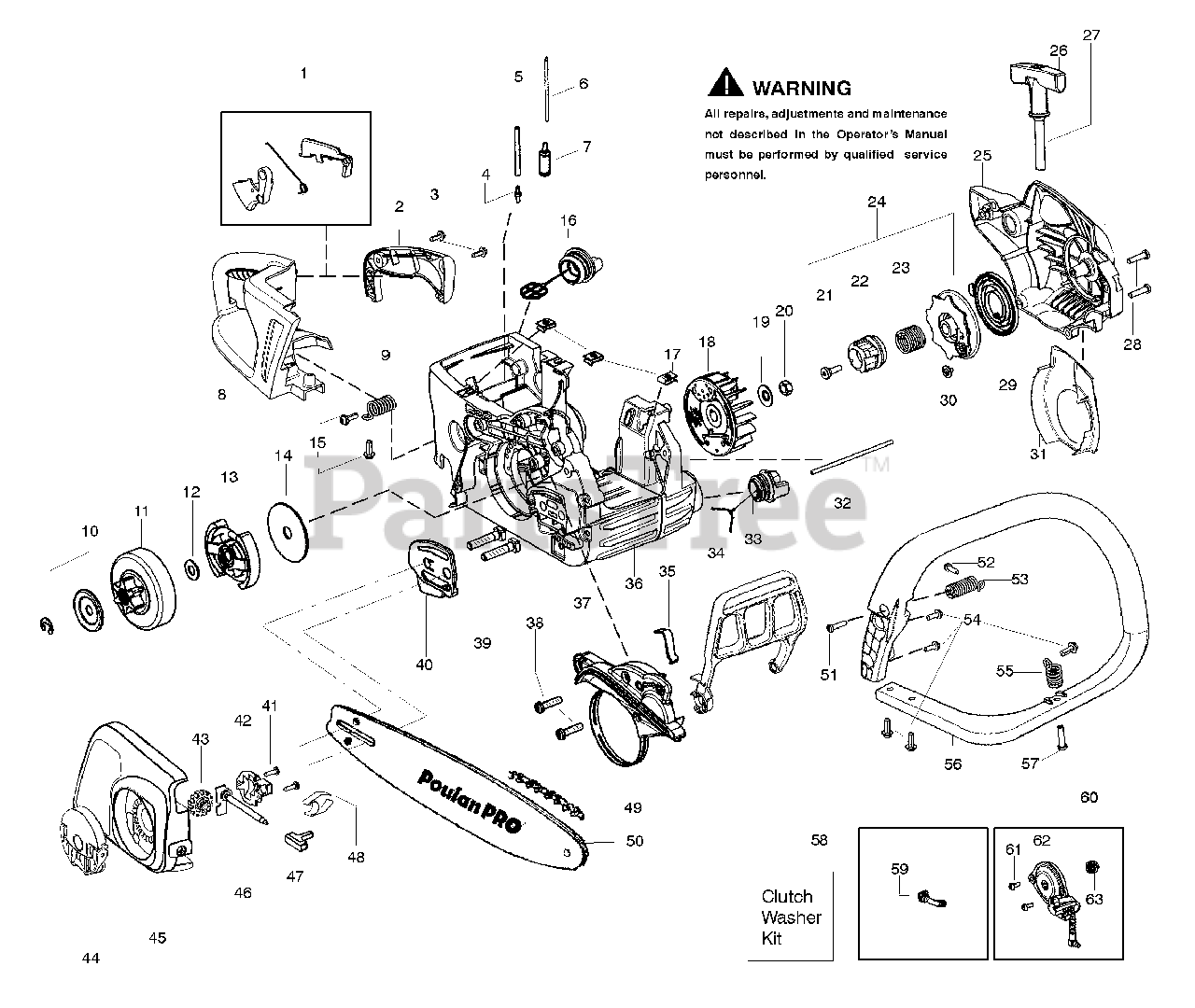

Handle, Chassis & Bar Assembly Parts Diagram

  • Title
1

Poulan 530071927

Kit-Trigger/Lockout

$7.99

$

In Stock, only 2 left!

0

2

Poulan 545011903

Cover-Handle

$6.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 530023877

Fitting-Fuel line

$5.99

$

In Stock, Qty 17

0

5

Poulan 530069216

Kit-Fuel Line

Note: (Large)

$11.99

$

In Stock, Qty 20+

0

6

Poulan 530069247

Kit-Fuel Line

Note: (Small)

$7.99

$

In Stock, Qty 20+

0

7

Poulan 530095649

Assy-Fuel Pick Up
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

8

Poulan 545012103

Handle-Rear
(Superseded to 586016902)

$

$

Not available

9

Poulan 530059475

Spring-Rear Isolator

$6.99

$

Usually ships in 3-10 days

0

10

Poulan 530071945

Kit-Clutch Washer

$6.49

$

In Stock, only 4 left!

0

11

Poulan 530057905

Assy-Clutch Drum 3/8"
(Superseded to 501628301)

$17.99

$

In Stock, Qty 20+

0

12

Poulan 530071945

Kit-Clutch Washer

$6.49

$

In Stock, only 4 left!

0

13

Poulan 530057907

Assy-Clutch

$13.99

$

Usually ships in 3-10 days

0

14

Poulan 530016419

Washer-Large Clutch

$6.49

$

In Stock, only 1 left!

0

15

$6.49

$

In Stock, only 2 left!

0

16

Poulan 530047192

Assy-Fuel Cap w/ret
(Superseded to 580940901)

$7.99

$

In Stock, Qty 7

0

17

Poulan 530015922

Nut-"U" type speed

$6.49

$

In Stock, Qty 5

0

18

Poulan 545016308

Assy-Flywheel
(Superseded to 578193802)

$17.99

$

Usually ships in 3-10 days

0

19

Poulan 530015127

Washer-Flywheel

$6.49

$

In Stock, only 1 left!

0

20

Poulan 530016134

Nut-Flywheel

$6.49

$

In Stock, only 1 left!

0

21

Poulan 530021179

Screw-Shoulder

$2.49

$

In Stock, only 1 left!

0

22

Poulan 530059677

Starter Hub-EPS

$9.99

$

In Stock, Qty 6

0

23

Poulan 530021180

Spring-EPS

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530071966

Kit- EPS Starter Pulley

Note: (Incl. 21,22,23, 30)

$26.99

$

In Stock, only 1 left!

0

25

Poulan 545011703

Housing-Fan

$26.99

$

In Stock, Qty 5

0

26

Poulan 530056402

Handle-Starter

$6.49

$

In Stock, only 1 left!

0

27

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 17

0

28

$6.49

$

In Stock, Qty 7

0

29

Poulan 530042095

Spring-Starter
(Superseded to 545008013)

$6.99

$

In Stock, Qty 8

0

30

$6.49

$

In Stock, only 1 left!

0

31

$6.70

$

Usually ships in 3-10 days

0

32

Poulan 530058786

Assy-Oil Vent

$4.99

$

In Stock, only 1 left!

0

33

Poulan 530057236

Assy-Oil Cap w/ret.

$

$

Not available

34

Poulan 530057880

Handguard
(Superseded to 585600601)

$

$

Not available

35

Poulan 530016416

Spring-Handguard

$6.49

$

In Stock, only 3 left!

0

36

Poulan 545011803

Assy-Chassis
(Superseded to 545011813)

Note: (Incl. 4,5,6,7,9,15,16,17,32,33,35,39,55)

$79.99

$

Usually ships in 3-10 days

0

37

Poulan 530071893

Kit-Chainbrake

$26.99

$

In Stock, only 1 left!

0

38

$6.49

$

In Stock, Qty 7

0

39

Poulan 530016133

Bolt-Bar

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530057910

Plate-Bar

$5.99

$

In Stock, only 4 left!

0

41

$4.99

$

In Stock, only 2 left!

0

42

Poulan 530059999

Cover-Gearbox

$

$

Not available

43

Poulan 545039501

Wheel-Bar Adjust
(Superseded to 525884202)

$

$

Not available

44

Poulan 545040603

Assy-Knob

$18.99

$

Usually ships in 3-10 days

0

45

Poulan 545027703

Clutch Cover

$

$

Not available

46

Poulan 530150000

Assy-Adjust Screw

$

$

Not available

47

Poulan 545157401

Pin-Bar Adjust

$6.99

$

In Stock, only 1 left!

0

48

Poulan 545147001

Spring - Clip

$3.49

$

In Stock, only 1 left!

0

49

Poulan 952051338

Accy-18" Chain
(Superseded to 581562301)

$22.99

$

In Stock, Qty 5

0

50

Poulan 530044693

Bar - 18"
(Superseded to 952044418)

$

$

Not available

51

$6.49

$

In Stock, Qty 7

0

52

$4.99

$

In Stock, only 1 left!

0

53

Poulan 530059480

Assy-Rear Iso. Spring

$7.49

$

In Stock, only 3 left!

0

54

$6.49

$

In Stock, only 2 left!

0

55

Poulan 530059479

Assy-Front Iso. Spring

$7.99

$

In Stock, only 1 left!

0

56

Poulan 530057878

Handle-Front

$

$

Not available

57

$6.49

$

In Stock, Qty 7

0

58

Poulan 530071945

Kit-Clutch Washer

Note: (Incl. 10,12)

$6.49

$

In Stock, only 4 left!

0

59

Poulan 530057924

Assy-Oil Pick Up

$6.49

$

In Stock, Qty 9

0

60

Poulan 530071891

Kit-Oil Pump

Note: (Incl. 61,62,63)

$27.99

$

In Stock, only 1 left!

0

61

$4.99

$

In Stock, only 2 left!

0

62

Poulan 530057931

Assy-Oil Pump
(Superseded to 581071401)

$20.99

$

In Stock, only 1 left!

0

63

Poulan 530037820

Gear-Worm

$6.49

$

In Stock, only 2 left!

0
