SM 400 - Poulan Blower, Type 3 (2006-12) Housing Type 3 Parts Diagram

Blower, Type 3

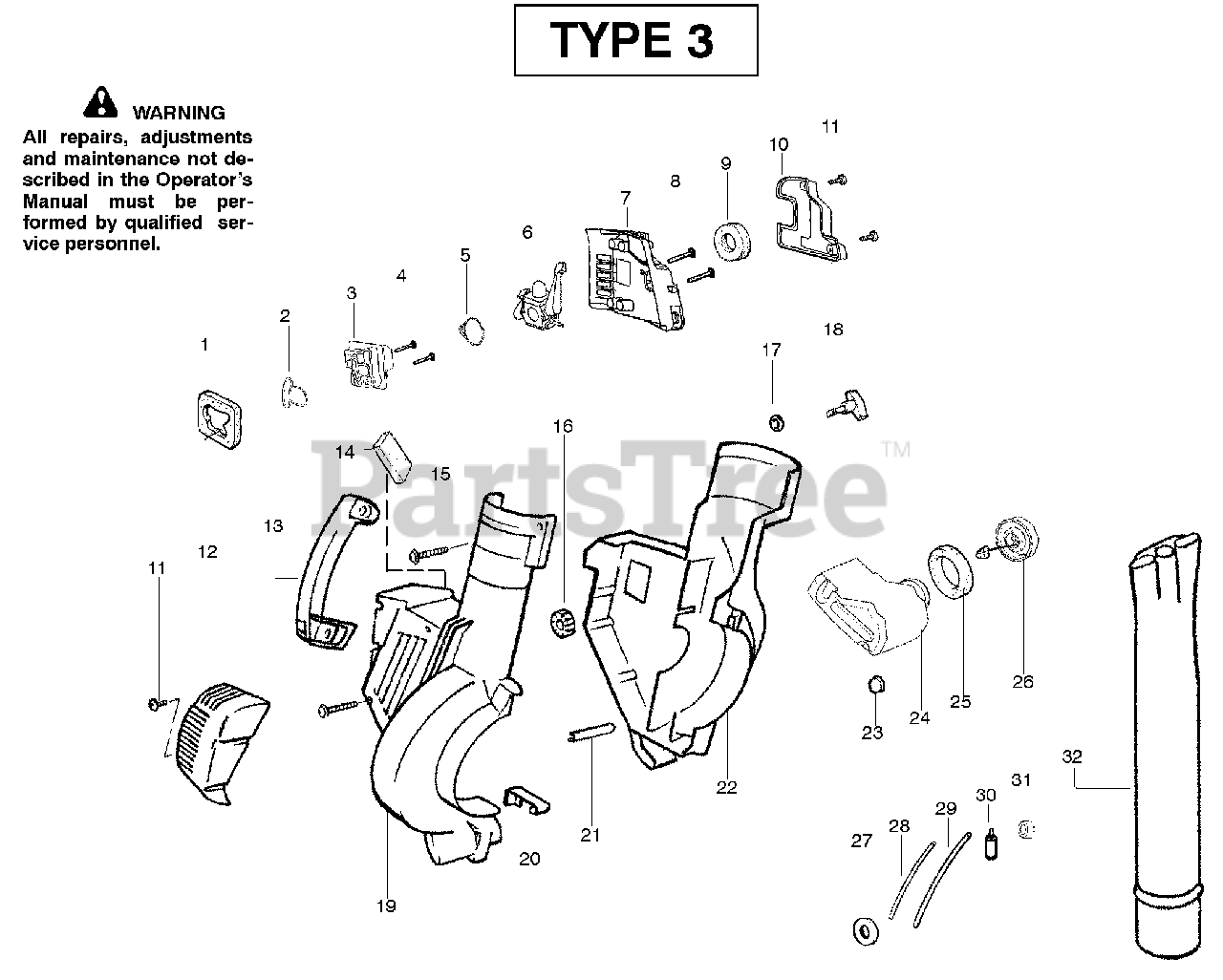

Housing Type 3 Parts Diagram

  • Title
1

Electrolux/AYP 530071459

Air Dam (kit)

$

$

Not available

2

Electrolux/AYP 530071458

Gasket-Adapter (kit)

$

$

Not available

3

Electrolux/AYP 530035561

Carburetor Adaptor

$14.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530071458

Gasket-Carburetor (kit)

$

$

Not available

6

Electrolux/AYP 530071632

Kit-Carb Ass’y. (C1Q-W11C)
(Superseded to 530071775)

$74.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530071775

Kit-Carb Ass’y. (WT-606)

$74.99

$

Usually ships in 3-10 days

0

$

$

Not available

8

$6.49

$

In Stock, only 1 left!

0

$

$

Not available

10

Electrolux/AYP 530056581

Cover-Air Filter

$

$

Not available

$6.49

$

In Stock, only 2 left!

0

12

Electrolux/AYP 545085001

Guard-Muffler

$11.99

$

In Stock, only 1 left!

0

$

$

Not available

14

Electrolux/AYP 530071459

Foam 71.12mm (Kit)

$

$

Not available

$6.49

$

In Stock, only 3 left!

0

$

$

Not available

$6.49

$

In Stock, only 4 left!

0

18

$3.49

$

In Stock, only 3 left!

0

19

Electrolux/AYP 545018204

Assy.-Housing Right

Note: (incl. 20)

$27.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530402044

Spring-Cover Latch

$

$

Not available

21

Electrolux/AYP 530049617

Guide-Starter Rope

$

$

Not available

22

$27.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530049491

Assy-Fuel Tank
(Superseded to 545058007)

$

$

Not available

25

Electrolux/AYP 530049527

Gasket-Fuel Tank

$3.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530049386

Fuel Cap w/Retainer
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530049656

Grommet-Shroud

$

$

Not available

28

Electrolux/AYP 530069247

Kit-Line Carb/Purge

$7.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 530069216

Kit-Line Tank/Purge

$11.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 530071459

Grommet-Fuel line (kit)

$

$

Not available

32

$

$

Not available

32

Electrolux/AYP 545117517

Operator Manual

Note: Not Shown

$

$

Not available

32

Electrolux/AYP 530057414

Warning Decal

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 545003023

Decal-Inst. / Warning

Note: Not Shown

$

$

Not available
