SM 400 - Poulan Blower, Type 1 (2006-12) Engine Type 1 Parts Diagram

Blower, Type 1

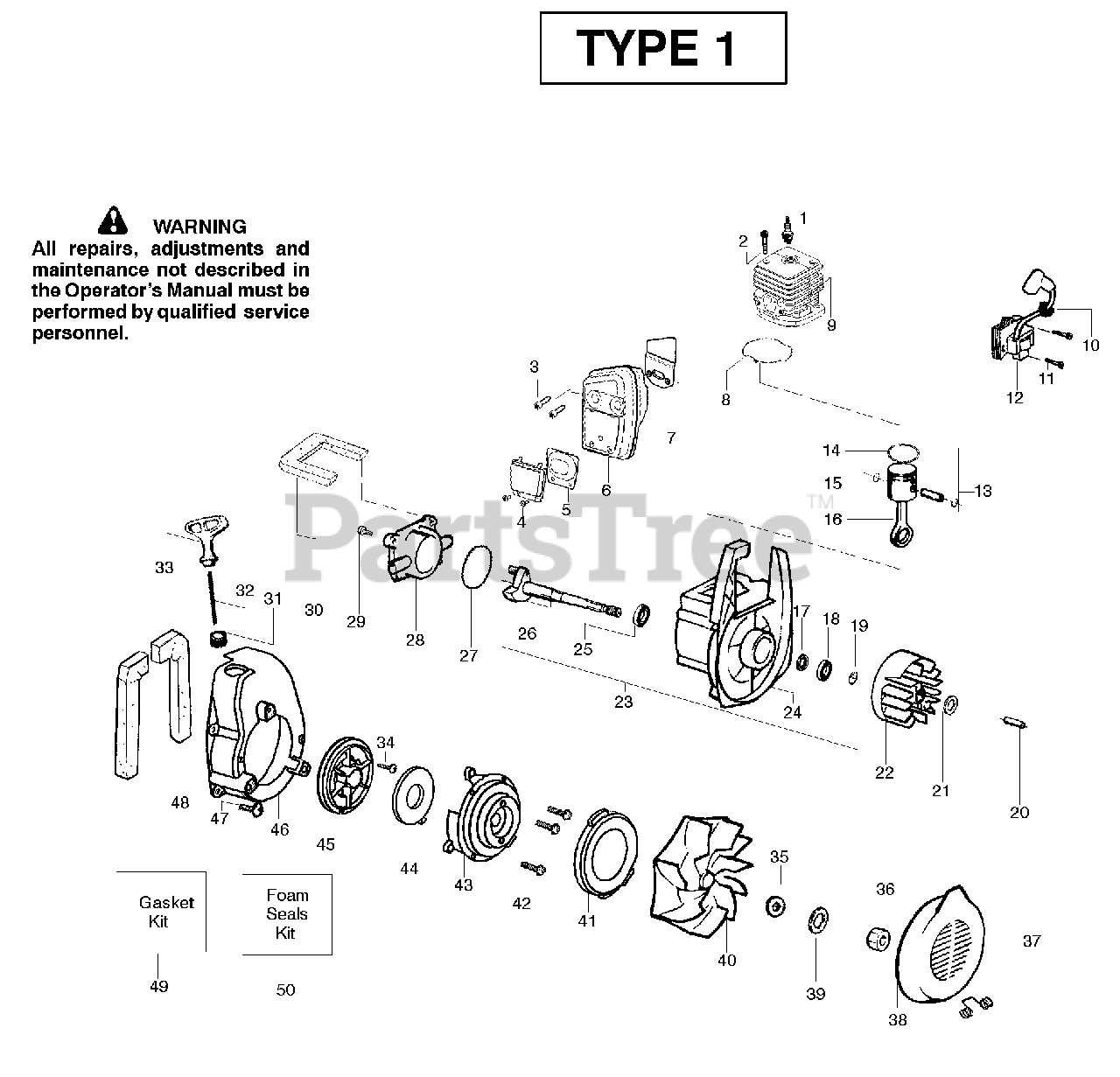

Engine Type 1 Parts Diagram

  • Title

1

Electrolux/AYP 952030249

Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 530015953

Screw

$6.49

$

In Stock, Qty 7

0

3

Electrolux/AYP 530016387

Screw-Muffler-Internal

$

$

Not available

4

Electrolux/AYP 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530071593

Kit-Spark Screen

Note: (incl. #4)

$

$

Not available

6

Electrolux/AYP 530071834

Kit-Muffler
(Superseded to 530071592)

Note: (incl. 3,4,5, & 7)

$27.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 530071458

Gasket-Baffle (kit)

$

$

Not available

8

Electrolux/AYP 530071458

Gasket-Cylinder (kit)

$

$

Not available

9

Electrolux/AYP 530071468

Kit-Cylinder
(Superseded to 530012458)

$34.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530019182

Grommet-Ign. Module

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530016357

Screw-Ignition Module

$6.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530035505

Ignition Module

$47.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 530071476

Kit-Piston

Note: (Incl. 14 & 15)

$40.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530012472

Piston Ring
(Superseded to 545154009)

$4.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530019264

Seal-Crankcase

$7.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530055728

Bearing-Outer

$9.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530015941

Retainer Ring-C’chaft

$4.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530016190

Spacer-Flywheel

$

$

Not available

21

Electrolux/AYP 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

22

Electrolux/AYP 530039209

Assy-Flywheel
(Superseded to 530063575)

$

$

Not available

23

Electrolux/AYP 530071456

Assy-Crankcase/Crank shaft

Note: (incl. 19,24,26)

$

$

Not available

24

Electrolux/AYP 530012492

Assy-Crankcase

Note: (Incl. 17,18,25)

$

$

Not available

25

Electrolux/AYP 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530012452

Assy-Crankshaft

$33.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530071458

O-ring-C/case (kit)

$

$

Not available

28

Electrolux/AYP 530012443

Cover-Crankcase

$

$

Not available

29

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 530071459

Foam-219mm (kit)

$

$

Not available

31

Electrolux/AYP 530029182

Eyelet-Flange

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530071467

Kit-Rope

Note: (Incl. 34)

$7.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530049488

Handle-Starter

$3.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 530016391

Screw-Rope

$2.23

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530016402

Washer-Belleville

$

$

Not available

36

Electrolux/AYP 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530402043

Spring-Return Cover

$4.99

$

In Stock, Qty 5

0

38

Electrolux/AYP 530049313

Inlet Door

$

$

Not available

39

Electrolux/AYP 530016279

Washer

$3.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 530069817

Assy-Impeller

$

$

Not available

41

Electrolux/AYP 530056625

Seal-Ring

$

$

Not available

42

Electrolux/AYP 530016349

Screw

$6.49

$

In Stock, only 1 left!

0

43

Electrolux/AYP 530055101

Housing-Pulley

$

$

Not available

44

Electrolux/AYP 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

45

Electrolux/AYP 530071466

Kit-Starter Pulley
(Superseded to 545150201)

$11.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 530055102

Fan Housing

$

$

Not available

47

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 530071459

Foam-182mm (kit)

$

$

Not available

49

Electrolux/AYP 530071458

Kit-Gasket

Note: (page 1 incl. 2 & 5 ) (page 4 incl. 7,8, & 27 )

$

$

Not available

50

Electrolux/AYP 530071459

Kit-Foam Seals

Note: (page 1 incl. 1,14,31) (page 4 incl. 30 & 48)

$

$

Not available
