SM 210 VS - Poulan Blower (2009-03) Starter Parts Diagram

Blower

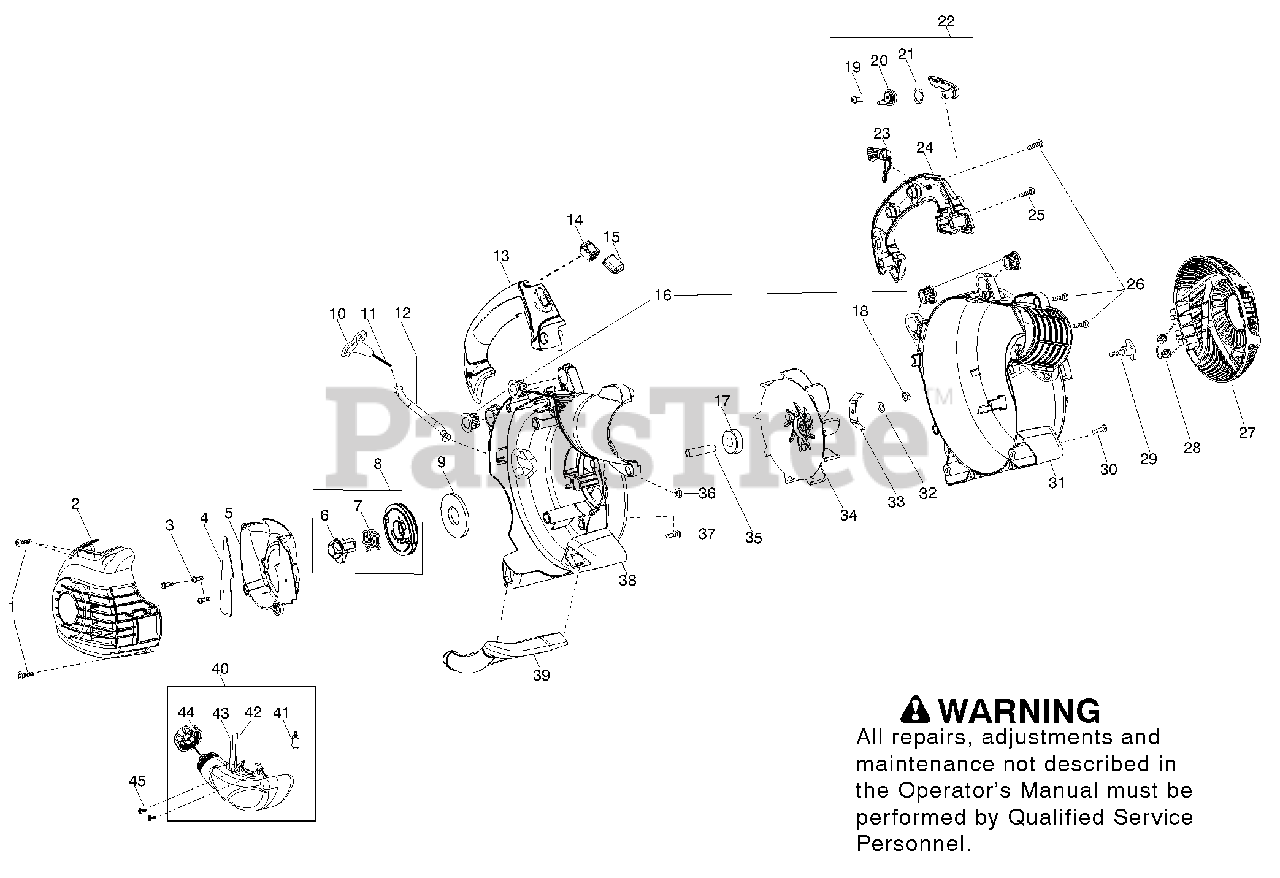

Starter Parts Diagram

  • Title

1

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

2

Electrolux/AYP 545148101

Assy - Engine Cover
(Superseded to 545180501)

$28.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530015880

Screw

$4.99

$

In Stock, Qty 8

0

4

Electrolux/AYP 545134001

Shield - Baffle

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 545099101

Baffle

$13.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 545052401

Hub

$3.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 545052501

Spring - Pulley

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 545050407

Kit - Starter Pulley

Note: (Incl. 6,7)

$13.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 545054901

Spring -Starter
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530054834

Handle - starter

$4.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 545050416

Kit - Rope

$8.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 545107101

Tube - Starter Rope

$8.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 545147801

Handle - RH

$14.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 545081830

Kit - Switch

Note: ( Incl. 15)

$8.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 545128201

Protector - Switch

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 545137701

Grommet

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 545099001

Bearing

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

20

Electrolux/AYP 545111501

Rachet - Cruise Control

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 545173101

Washer - Wave

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 545081867

Kit - Cruise Control

$10.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 545144902

Trigger - Throttle

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 545147901

Handle - LH
(Superseded to 545180001)

$18.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

27

Electrolux/AYP 545148201

Door -Vac

$15.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545115601

Spring - Vac Door

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 545144501

Knob - Blower

$6.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530015940

Screw - Vac Handle

$6.49

$

In Stock, Qty 8

0

31

Electrolux/AYP 545180201

Assy - Scroll LH

Note: (Incl. 27,28)

$43.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530092322

Washer - Lock

$3.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 545120701

Blade - Mulch

$9.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 545113601

Assy - Impeller
(Superseded to 580780901)

$14.99

$

In Stock, only 3 left!

0

35

Electrolux/AYP 545113701

Spacer - Flywheel

$5.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 530015197

Nut - Blower Knob

$6.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 545180102

Assy - Scroll RH

Note: ( Incl. 17 )

$30.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 545148001

Handle - Vac

$10.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 545100401

Assy - Fuel Tank
(Superseded to 578943308)

Note: (Incl. 41,42,43,44)

$

$

Not available

41

Electrolux/AYP 530095646

Assy - Fuel Pickup

$6.99

$

In Stock, Qty 19

0

42

Electrolux/AYP 530069247

Kit - Fuel Line (carb/purge)

$7.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 530069216

Kit - Fuel Line (tank/purge)

$11.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 530057973

Assy - Fuel Cap w/retainer
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530016445

Screw - Fuel Tank Retainer

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 545186830

Manual

Note: Not Shown

$

$

Not available

45

Electrolux/AYP 545167704

Decal - Warning
(Superseded to 527290301)

Note: Not Shown

$

$

Not available

45

Electrolux/AYP 522928602

Decal - Spark Arrestor Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days
