SM 132 (SM 132 LE) - Poulan String Trimmer, Type 1 (2006-12) Engine - Type 1 Parts Diagram

String Trimmer, Type 1

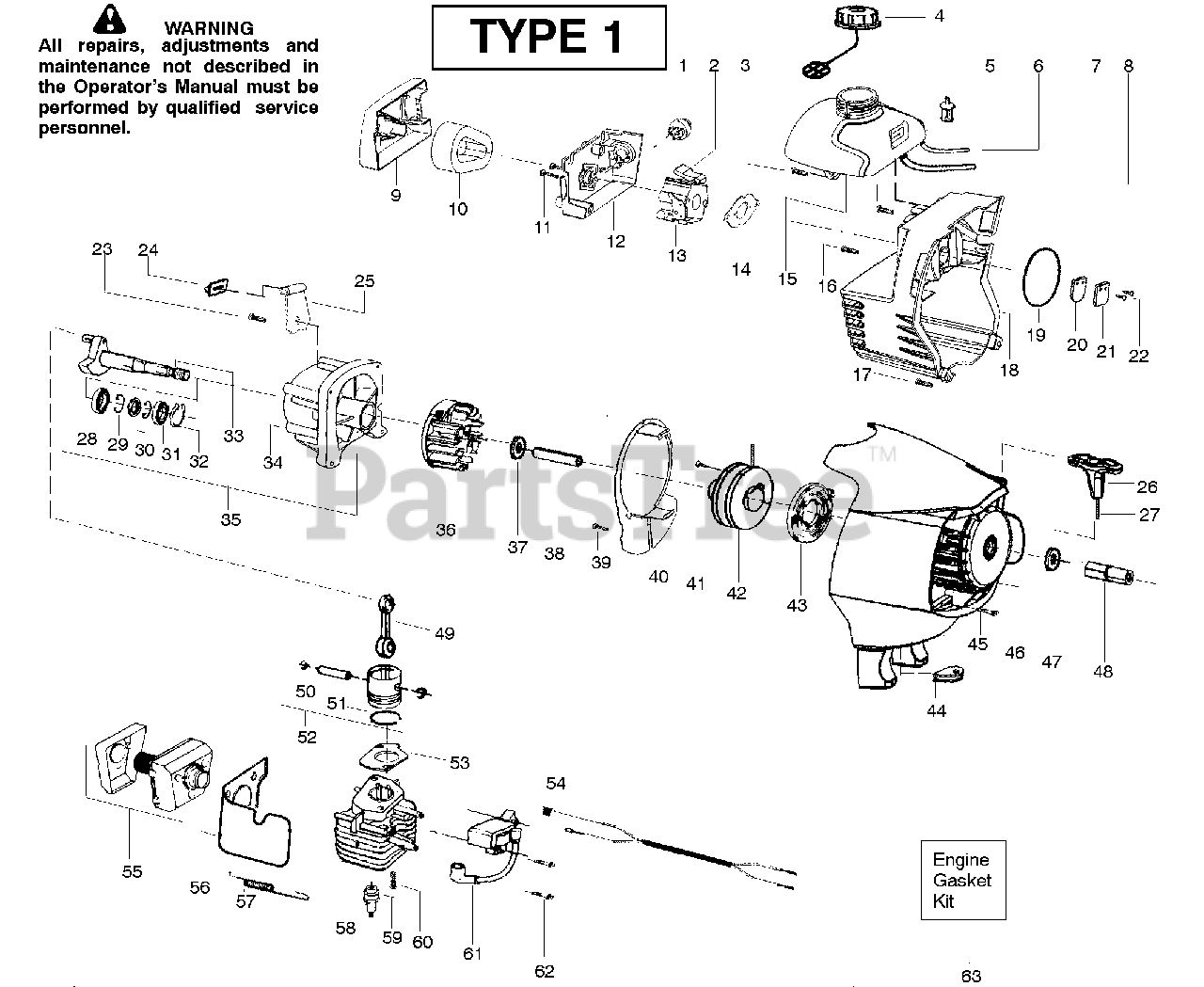

Engine - Type 1 Parts Diagram

  • Title

$9.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530071717

Kit-Choke Lever

$10.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530049386

Cap-Fuel w/ret.
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530095646

Assy-Fuel pickup

$6.99

$

In Stock, Qty 19

0

6

Electrolux/AYP 530069247

Kit-Fuel line

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530069216

Kit-Fuel/Purge line

$11.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 530054935

Cover-Air box

$

$

Not available

10

$30.99

$

In Stock, Qty 12

0

11

$6.49

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530071637

Assy-Carb(WT628)

Note: (Note: Repair kits are not available for this carburetor)

$87.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 530071401

Gasket-Carb.(kit)

$

$

Not available

15

Electrolux/AYP 530055317

Assy-Fuel Tank
(Superseded to 545075305)

$

$

Not available

16

Electrolux/AYP 530015771

Screw-Crankcase

$6.49

$

In Stock, Qty 6

0

17

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

19

Electrolux/AYP 530071401

O-ring-Shroud (kit)

$

$

Not available

20

$6.49

$

In Stock, only 2 left!

0

$

$

Not available

22

Electrolux/AYP 530016064

Screw-Reed stop

$4.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 530015875

Screw-Retainer

$4.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 530055492

Isolator-Tank

$

$

Not available

$

$

Not available

26

Electrolux/AYP 530054834

Handle-Starter

$4.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530071400

Kit-Rope
(Superseded to 530071325)

$

$

Not available

28

Electrolux/AYP 530032103

Bearing-Inner
(Superseded to 545081601)

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530032102

Bearing-Outer

$

$

Not available

32

Electrolux/AYP 530015789

Ret.-Crankshaft

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530012430

Assy-Crankshaft

$27.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 530012514

Assy-Crankcase
(Superseded to 545081901)

Note: ( Incl. 28-31)

$

$

Not available

35

Electrolux/AYP 530071686

Assy-C'case/C'shaft

Note: ( Incl. 32,33,34)

$40.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 530071402

Kit-Flywheel Assy.

$34.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

39

$6.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 530054939

Plate-Baffle
(Superseded to 545115201)

$4.99

$

In Stock, only 1 left!

0

41

$2.23

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530071399

Kit-Pulley

Note: (incl.41)

$

$

Not available

43

Electrolux/AYP 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

$3.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530015810

Screw-F/hsg.
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 530055248

Assy.-Fan Housing

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 530012427

Coupling-Drive

$

$

Not available

49

Electrolux/AYP 530010960

Assy-Conn. Rod

$18.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530015162

Ret.-Piston pin

$6.49

$

In Stock, only 1 left!

0

51

$

$

Not available

52

Electrolux/AYP 530072000

Kit-Piston

Note: (Incl. 50,51)

$

$

Not available

53

Electrolux/AYP 530071401

Gasket-Cylinder(kit)

$

$

Not available

54

Electrolux/AYP 530057238

Assy-Leadwire

$

$

Not available

55

$

$

Not available

$6.49

$

In Stock, only 2 left!

0

57

Electrolux/AYP 530036409

Spring-Muffler

$

$

Not available

58

$78.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 952030249

Plug-Spark(RCJ-6Y)

$4.49

$

In Stock, Qty 20+

0

60

Electrolux/AYP 530001624

Bolt-Cyl. 1/4-20"

$3.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 530039218

Module-Ignition

$

$

Not available

62

$6.49

$

In Stock, only 4 left!

0

63

Electrolux/AYP 530071401

Kit-Gasket

Note: ( Incl. 14,19, 53)

$

$

Not available
