SM 132 - Poulan Pro String Trimmer, Type 1 Handle & Shaft Assembly Parts Diagram

String Trimmer, Type 1

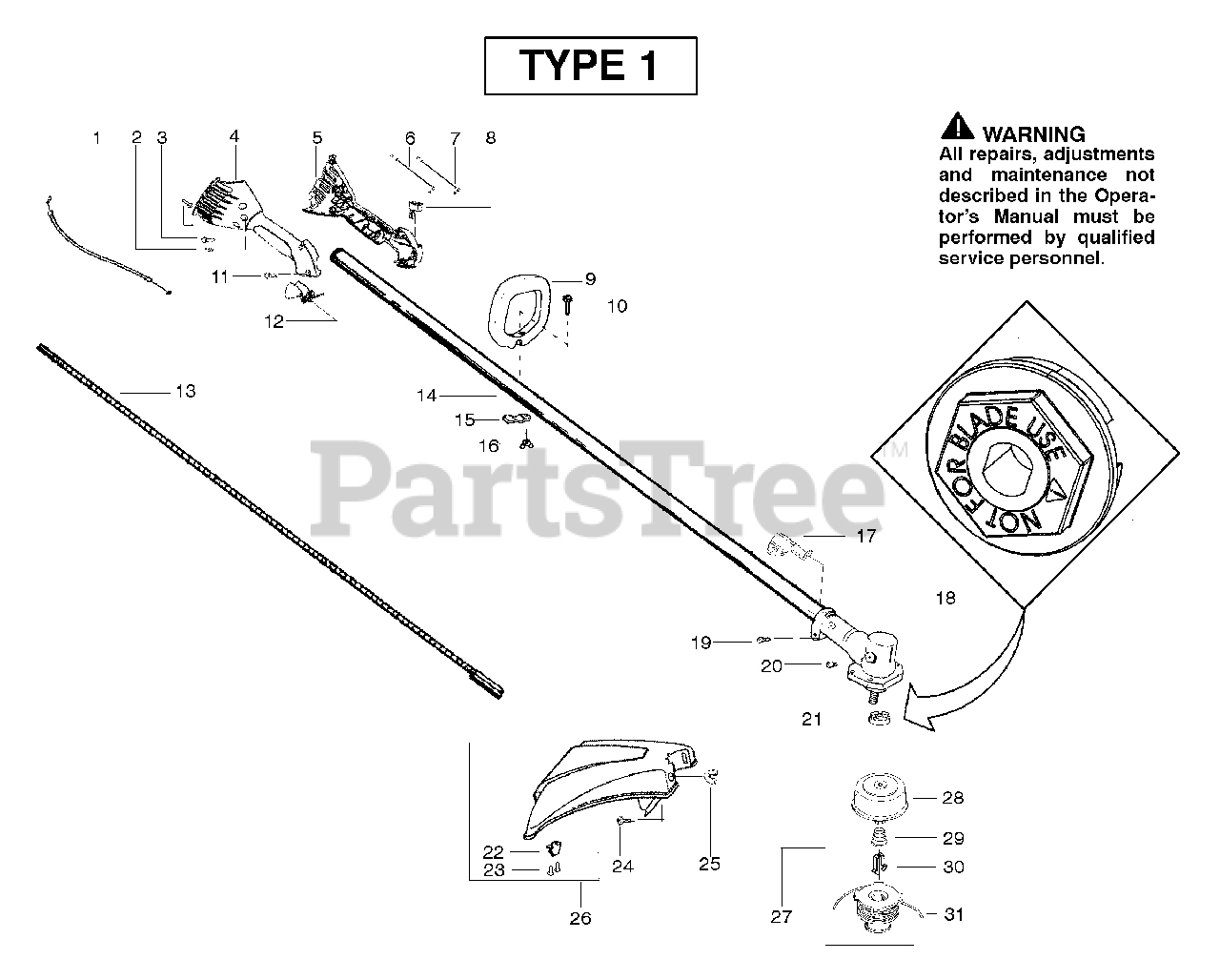

Handle & Shaft Assembly Parts Diagram

  • Title
1

Poulan 530054942

Assy-Throttle cable

$7.49

$

In Stock, only 2 left!

0

2

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

$6.49

$

In Stock, only 3 left!

0

4

Poulan 530054837

Throttle Hsg.-Right

$

$

Not available

5

Poulan 530071553

Kit-Left Throttle Hsg.

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530054943

Assy-Front wire

$

$

Not available

7

Poulan 530055724

Assy- Front Wire (upper)

$

$

Not available

8

Poulan 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

9

Poulan 530055699

Assy-Handle

Note: (Incl. 10,15,16)

$11.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

11

$6.49

$

In Stock, only 3 left!

0

12

Poulan 530054940

Trigger-Throttle

$3.99

$

In Stock, Qty 8

0

13

Poulan 530095963

Shaft-Flex

$

$

Not available

14

Poulan 530055355

Assy-Driveshaft

$44.99

$

Usually ships in 3-10 days

0

15

Poulan 530088416

Clamp-Assist Handle

$

$

Not available

16

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

17

Poulan 530095812

Bracket-Shield

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530071584

Assy.-Gearbox non blade

$

$

Not available

19

$6.49

$

In Stock, only 3 left!

0

20

$4.99

$

In Stock, Qty 5

0

21

Poulan 530095814

Non-Blade Dust cup

$7.49

$

Usually ships in 3-10 days

0

22

Poulan 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

$4.99

$

In Stock, only 1 left!

0

25

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

26

Poulan 530069779

Kit-Shield Ass'y.

Note: (Incl. 22,23)

$

$

Not available

27

Poulan 952711581

Accy.- Cutting Head
(Superseded to 952711550)

Note: (Incl. 28-31)

$

$

Not available

28

Poulan 530095772

Assy.-Hub/Arbor (3/8lh, 2x)

$

$

Not available

29

Poulan 530053241

Spring-Return

$

$

Not available

30

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

31

Poulan 952711580

Accy.-Wound Spool
(Superseded to 952711551)

$

$

Not available

Poulan 530164890

Operator Manual

Note: Not Shown

$7.49

$

Usually ships in 3-10 days

0

Poulan 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

Poulan 530057369

Decal-Start Instructions

Note: Not Shown

$

$

Not available
