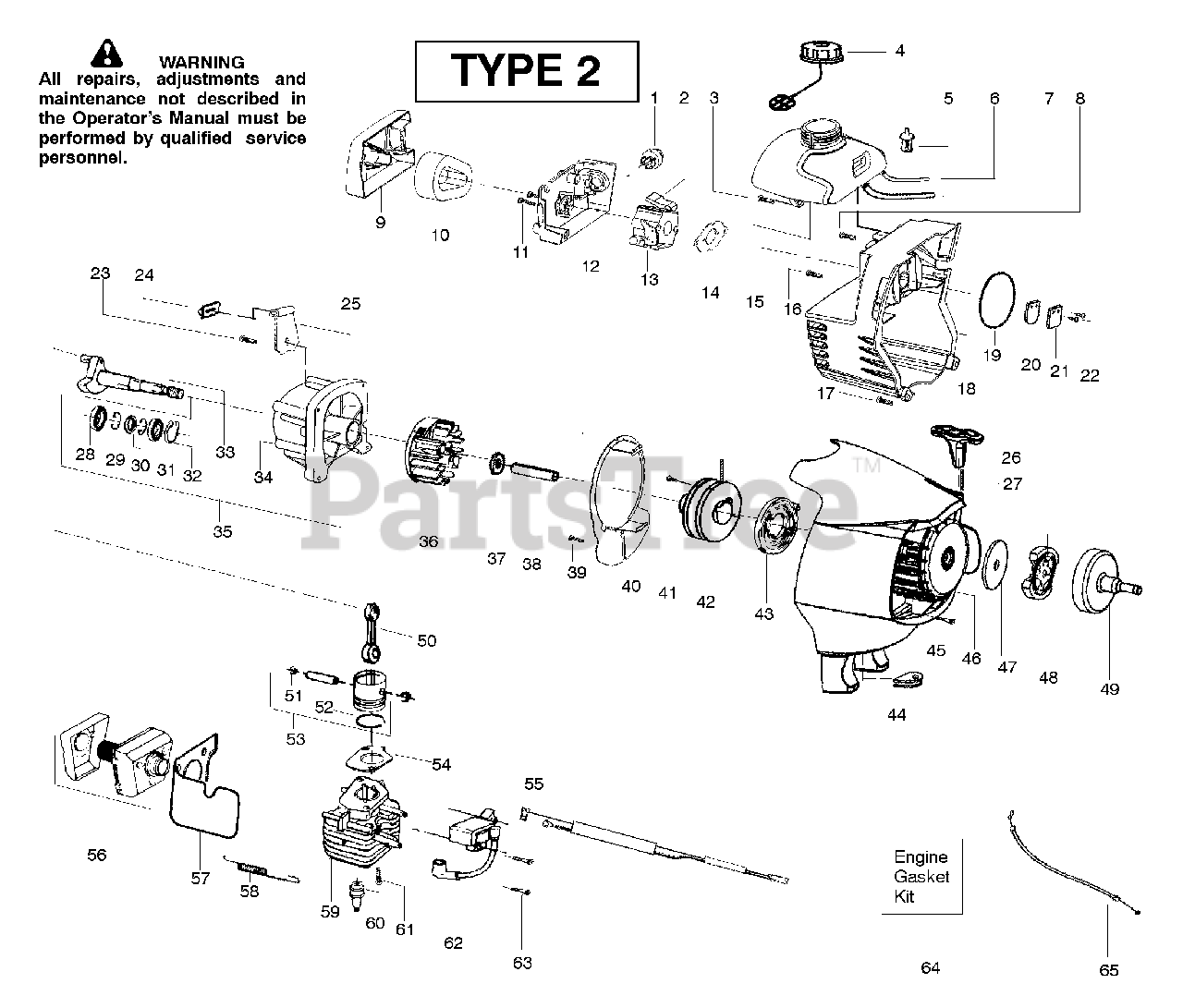

SM 132 LE - Poulan Pro String Trimmer, Type 2 Engine Assembly Parts Diagram

String Trimmer, Type 2

Engine Assembly Parts Diagram

  • Title
1

Poulan 530047721

Bulb-Purge

$9.49

$

Usually ships in 3-10 days

0

2

Poulan 530071717

Kit-Choke Lever

$10.99

$

Usually ships in 3-10 days

0

3

Poulan 530015843

Screw-tank

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 530049386

Cap-Fuel w/ret.
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

5

Poulan 530095646

Assy-Fuel pickup

$6.99

$

In Stock, Qty 19

0

6

Poulan 530071404

Kit-Fuel line
(Superseded to 530069247)

$7.99

$

In Stock, Qty 20+

0

7

Poulan 530069216

Kit-Fuel/Purge line

$11.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 2 left!

0

9

Poulan 530054935

Cover-Air box

$

$

Not available

10

Poulan 530054946

Filter-Air

$30.99

$

In Stock, Qty 12

0

11

Poulan 530015849

Screw-Carb.

$6.49

$

In Stock, only 1 left!

0

12

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 530071637

Assy-Carb (WT628)

Note: (Note: Repair kits are not available for this carburetor)

$87.99

$

In Stock, only 1 left!

0

14

Poulan 530071401

Gasket-Carb. (kit)

$

$

Not available

15

Poulan 545075305

Assy-Fuel Tank

$

$

Not available

16

Poulan 530015771

Screw-Crankcase

$6.49

$

In Stock, Qty 6

0

17

Poulan 530015952

Screw-Shroud

$4.99

$

Usually ships in 3-10 days

0

18

$

$

Not available

19

Poulan 530071401

O-ring-Shroud (kit)

$

$

Not available

20

Poulan 530027593

Valve-Reed

$6.49

$

In Stock, only 2 left!

0

21

Poulan 530054596

Stop-Reed

$

$

Not available

22

Poulan 530016064

Screw-Reed stop

$4.99

$

In Stock, only 2 left!

0

23

Poulan 530015875

Screw-Retainer

$4.99

$

In Stock, only 3 left!

0

24

Poulan 530055492

Isolator-Tank

$

$

Not available

25

Poulan 530054941

Ret.-Tank

$

$

Not available

26

Poulan 530054834

Handle-Starter

$4.99

$

In Stock, only 1 left!

0

27

Poulan 530071400

Kit-Rope

$

$

Not available

28

Poulan 530032103

Bearing-Inner

$

$

Not available

29

Poulan 530015787

Retainer

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 530032102

Bearing-Outer

$

$

Not available

32

Poulan 530015789

Ret.-Crankshaft

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 530028807

Assy-Crankshaft

$37.99

$

Usually ships in 3-10 days

0

34

Poulan 530012514

Assy-Crankcase
(Superseded to 545081901)

Note: (Incl. 28-31)

$

$

Not available

35

Poulan 530071685

Assy-C'case/C'shaft
(Superseded to 545006037)

Note: (Incl. 32,33,34)

$

$

Not available

36

Poulan 530055524

Assy-Flywheel

$34.99

$

Usually ships in 3-10 days

0

37

$3.99

$

Usually ships in 3-10 days

0

38

$7.49

$

Usually ships in 3-10 days

0

39

Poulan 530015775

Screw-Baffle

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530054939

Plate-Baffle
(Superseded to 545115201)

$4.99

$

In Stock, only 1 left!

0

41

Poulan 530016391

Screw-Rope

$2.23

$

Usually ships in 3-10 days

0

42

Poulan 530071399

Kit-Pulley

Note: (incl.41)

$

$

Not available

43

Poulan 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

44

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530015810

Screw-F/hsg.
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

46

Poulan 530055248

Assy.-Fan Housing

$

$

Not available

47

Poulan 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

48

Poulan 530055122

Assy-Clutch

$20.99

$

In Stock, Qty 5

0

49

Poulan 530028799

Drum-Clutch

$

$

Not available

50

Poulan 530010960

Assy-Conn. Rod

$18.99

$

Usually ships in 3-10 days

0

51

Poulan 530015162

Ret.-Piston pin

$6.49

$

In Stock, only 1 left!

0

52

Poulan 530012595

Ring-Piston

$

$

Not available

53

Poulan 530072000

Kit-Piston

Note: (Incl. 51,52)

$

$

Not available

54

Poulan 530071401

Gasket-Cylinder (kit)

$

$

Not available

55

Poulan 530058846

Assy-Leadwire

$7.49

$

Usually ships in 3-10 days

0

56

Poulan 530069310

Kit-Muffler

$

$

Not available

57

$6.49

$

In Stock, only 2 left!

0

58

Poulan 530036409

Spring-Muffler

$

$

Not available

59

Poulan 530071581

Kit-Cylinder

$78.99

$

Usually ships in 3-10 days

0

60

Poulan 952030249

Plug-Spark (RCJ-6Y)

$4.49

$

In Stock, Qty 20+

0

61

Poulan 530001624

Bolt-Cyl. 1/4-20"

$3.99

$

Usually ships in 3-10 days

0

62

Poulan 530039218

Module-Ignition

$

$

Not available

63

Poulan 530016357

Screw-Module

$6.49

$

In Stock, only 4 left!

0

64

Poulan 530071401

Kit-Gasket

Note: (Incl. 14,19, 54)

$

$

Not available

65

Poulan 530058962

Assy-Throttle cable
(Superseded to 545026801)

$18.99

$

Usually ships in 3-10 days

0
